ComNav Commander P2 & P2VS Installation & Operation Installation
Document PN 29010074 V4.1 - 55 -

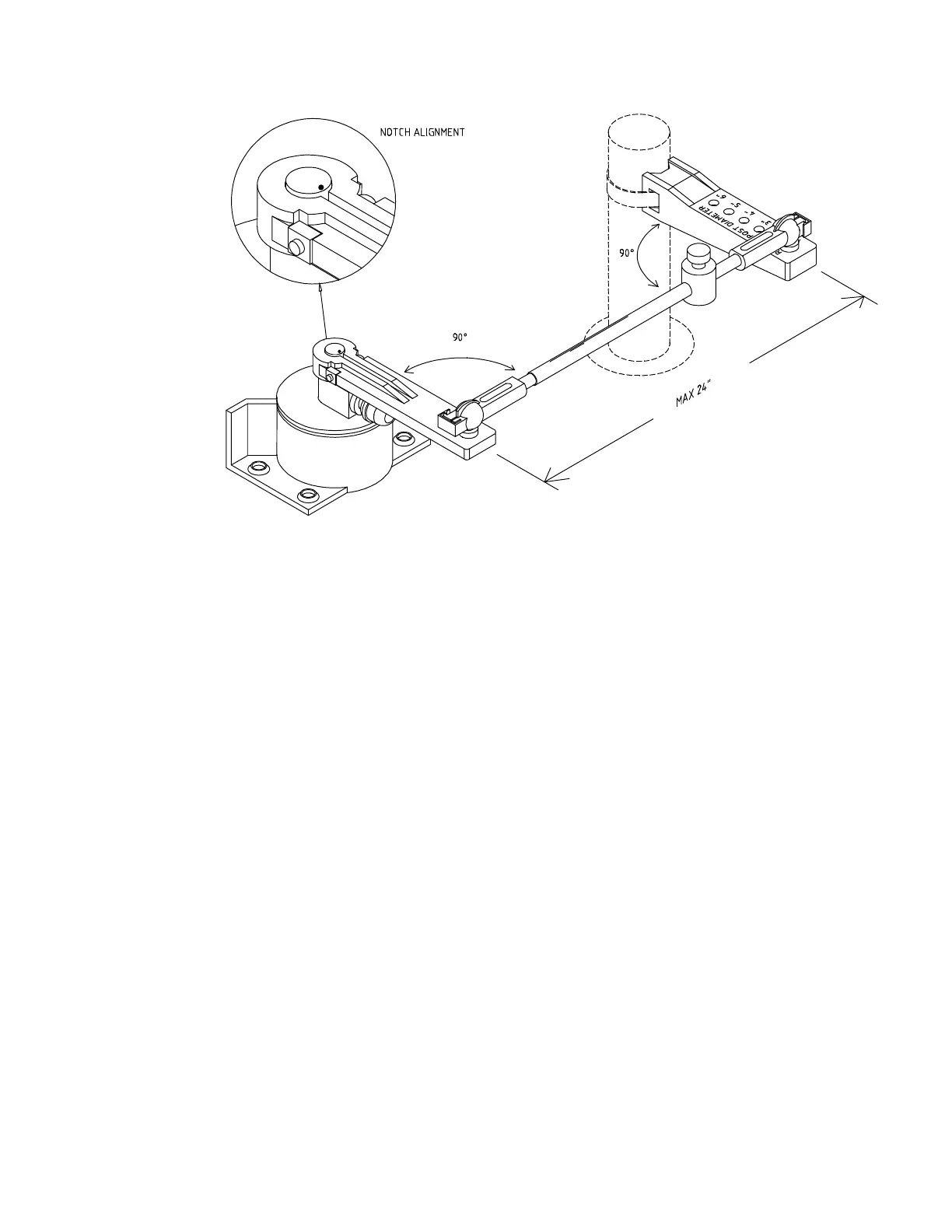

Figure 29 – RFU Linkage Geometry
Electrical Connection
The Rudder Follower Unit is normally supplied with approximately 15.5 metres (50’) of cable.
Run the cable from the RFU towards the SPU, ensuring that a hose or conduit protects it
wherever it passes through bulkheads, holds, or any other area where it could be damaged.
If the length of cable supplied is too short to reach all the way to the SPU, obtain a terminal
strip and sufficient additional cable from your ComNav Dealer. Mount the terminal strip in a
convenient DRY location where it will not be subjected to moisture of any kind.
See Rudder Follower Unit on page 70 for further details on connecting the cable to the
SPU.
Heavy Duty Rotary Rudder Follower Unit
The Heavy Duty Rotary RFU is also compatible with P Series systems. If you have
purchased one of these devices, follow the installation instructions supplied with the unit.
See Rudder Follower Unit on page 70 for further details on connecting the cable to the
SPU.
