ComNav Commander P2 - Figure 53 - Wiring Connections for Constant Running Electric Pump; Figure 54 - Wiring Connections for Two-Speed Solenoid Valves; Two-Speed Solenoid Valves

ComNav Commander P2 & P2VS Installation & Operation Installation
Document PN 29010074 V4.1 - 73 -
The diagram above assumes that an engine driven pump is used for the hydraulic system. In
the case of an electrically powered constant running pump, use the following connection:

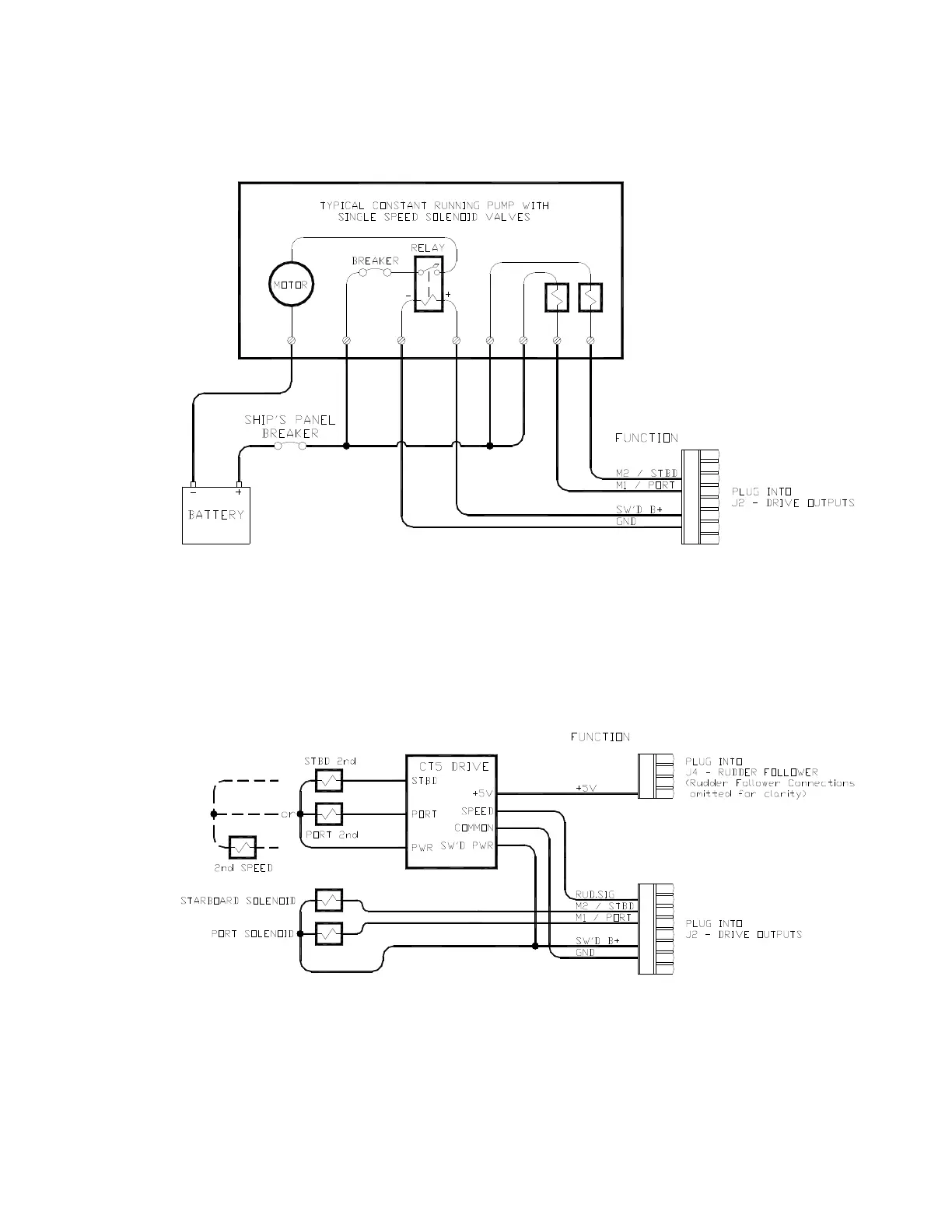

Figure 53 – Wiring Connections for Constant Running Electric Pump.
Two-Speed Solenoid Valves
ComNav’s CT5 Drive Box (PN 20350004) should be used to interface between the
Commander P2 SPU and two-speed solenoid systems. Connect the CT5 to the SPU as per
the instructions shipped with the CT5, and the following diagram:
Figure 54 – Wiring Connections for Two-Speed Solenoid Valves
