ComNav Commander P2 - Drive Output Connections

ComNav Commander P2 & P2VS Installation & Operation Installation
Document PN 29010074 V4.1 - 70 -
Rudder Follower Unit
The RFU is connected to the four-position receptacle on the SPU labelled
J4 – RUDDER FOLLOWER . Wire the RFU to the plug-in connector as per the following diagram.
Note: an RFU is optional on P2VS systems.

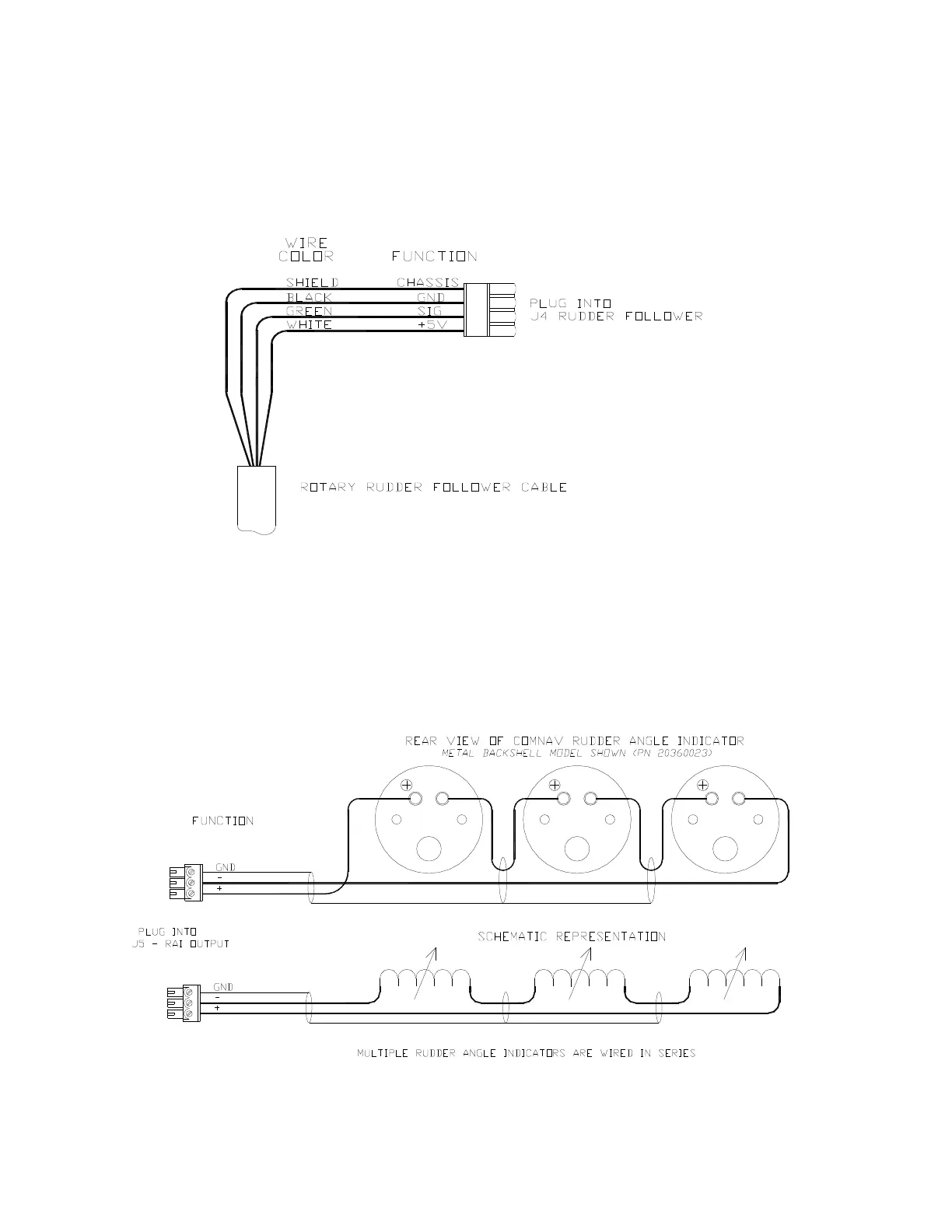

Figure 47 – Wiring Connections for RFUs
Rudder Angle Indicators
The Commander P2 system will drive Rudder Angle Indicator (RAI) meters – such as those
supplied by ComNav (PN 20360014 or 20360023). Mounting instructions are included with
the meter. Wire the meter to the plug for the SPU receptacle labelled J5 – RAI OUTPUT . If
you have more than one RAI, they should all be wired in series, as shown below (up to five,
500 µA RAI meters may be used):
Figure 48 – Wiring Connections for Rudder Angle Indicators
