D-Link DWC-1000 User Manual

D-Link DWC-1000 User Manual 115
Section 4 - Advanced WLAN Conguration

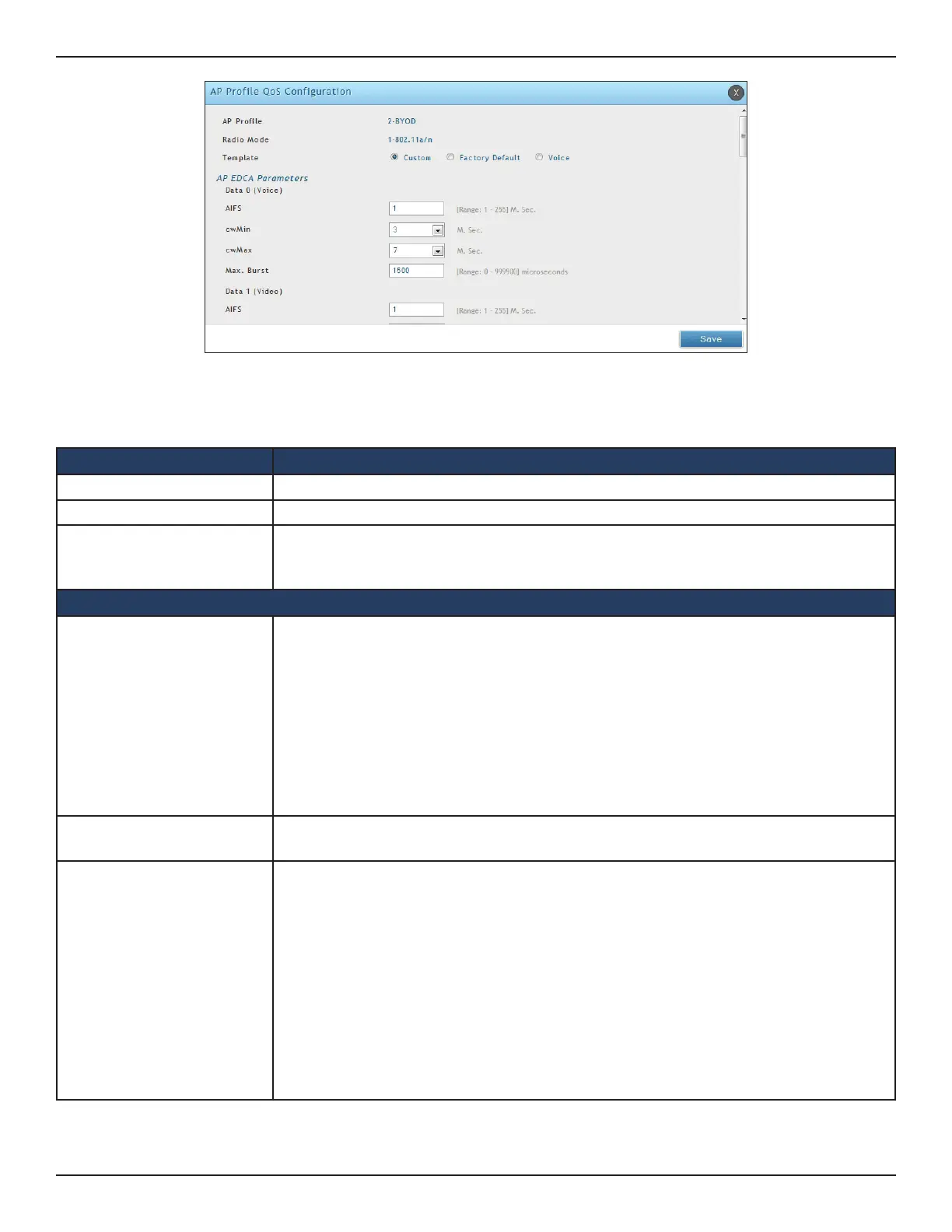

3. Complete the elds below and click Save.
Field Description
AP Prole The name of AP Prole
Radio Mode The radio mode. 802.11a/n or 802.b/g/n
Template
Select the QoS template to apply to the AP prole. If you select Custom, you can change
the AP and station parameters. If you select Voice or Factory Default, the wireless
controller will use the pre‐dened settings for the respective template.
AP EDCA Parameters
Queue
Queues are dened for dierent types of data transmitted from AP‐to‐station:
• Data 0 (Voice)—High priority queue, minimum delay. Time‐sensitive data such as
VoIP and streaming media are automatically sent to this queue.
• Data 1(Video)—High priority queue, minimum delay. Time‐sensitive video data is
automatically sent to this queue.
• Data 2 (best eort)—Medium priority queue, medium throughput and delay. Most
traditional IP data is sent to this queue.
• Data 3 (Background)—Lowest priority queue, high throughput. Bulk data that
requires maximum throughput and is not time‐sensitive is sent to this queue (FTP
data, for example).
AIFS (Inter-Frame Space)
The Arbitration Inter‐Frame Spacing (AIFS) species a wait time for data frames. The wait
time is measured in slots. Valid values for AIFS are 1 through 255.
cwMin (Minimum
Contention Window)
This parameter is input to the algorithm that determines the initial random backo
wait time (window) for retry of a transmission. The value specied here in the Minimum
Contention Window is the upper limit (in milliseconds) of a range from which the initial
random backo wait time is determined.
The rst random number generated will be a number between 0 and the number
specied here.
If the rst random backo wait time expires before the data frame is sent, a retry counter is
incremented and the random backo value (window) is doubled. Doubling will continue
until the size of the random backo value reaches the number dened in the Maximum
Contention Window.
Valid values for the cwmin are 1, 3, 7, 15, 31, 63, 127, 255, 511, or 1024. The value for
cwmin must be lower than the value for cwmax.

D-Link DWC-1000 Specifications

General

Ethernet LAN	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g
Networking standards	IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Number of managed Wi-Fi Access Points (max)	6
Security algorithms	3DES, DES, WEP, WPA, WPA2
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Certification	FCC B, CE B, VCCI, C-tick, IC, cUL, LVD (EN60950-1)
Built-in display	No
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Power requirements	DC 12V/2.5A
Power consumption (typical)	19.3 W
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1419 mm
Pallet height (sea)	1847 mm
Pallet gross weight (air)	415236 g
Pallet gross weight (sea)	545648 g
Quantity per pallet (air)	144 pc(s)
Quantity per pallet (sea)	192 pc(s)
Shipping (inner) case width	296 mm
Shipping (inner) case height	428 mm
Shipping (inner) case length	354 mm
Shipping (inner) case weight	10826 g
Shipping (inner) case net weight	10016 g
Number of cartons per pallet (air)	36 pc(s)
Number of cartons per pallet (sea)	48 pc(s)
Quantity per shipping (inner) case	4 pc(s)

Weight and Dimensions

Package depth	396 mm
Package width	273 mm
Package height	80 mm
Package weight	2504 g
Dimensions (WxDxH)	280 x 180 x 44 mm
