D-Link DWC-1000 User Manual 330

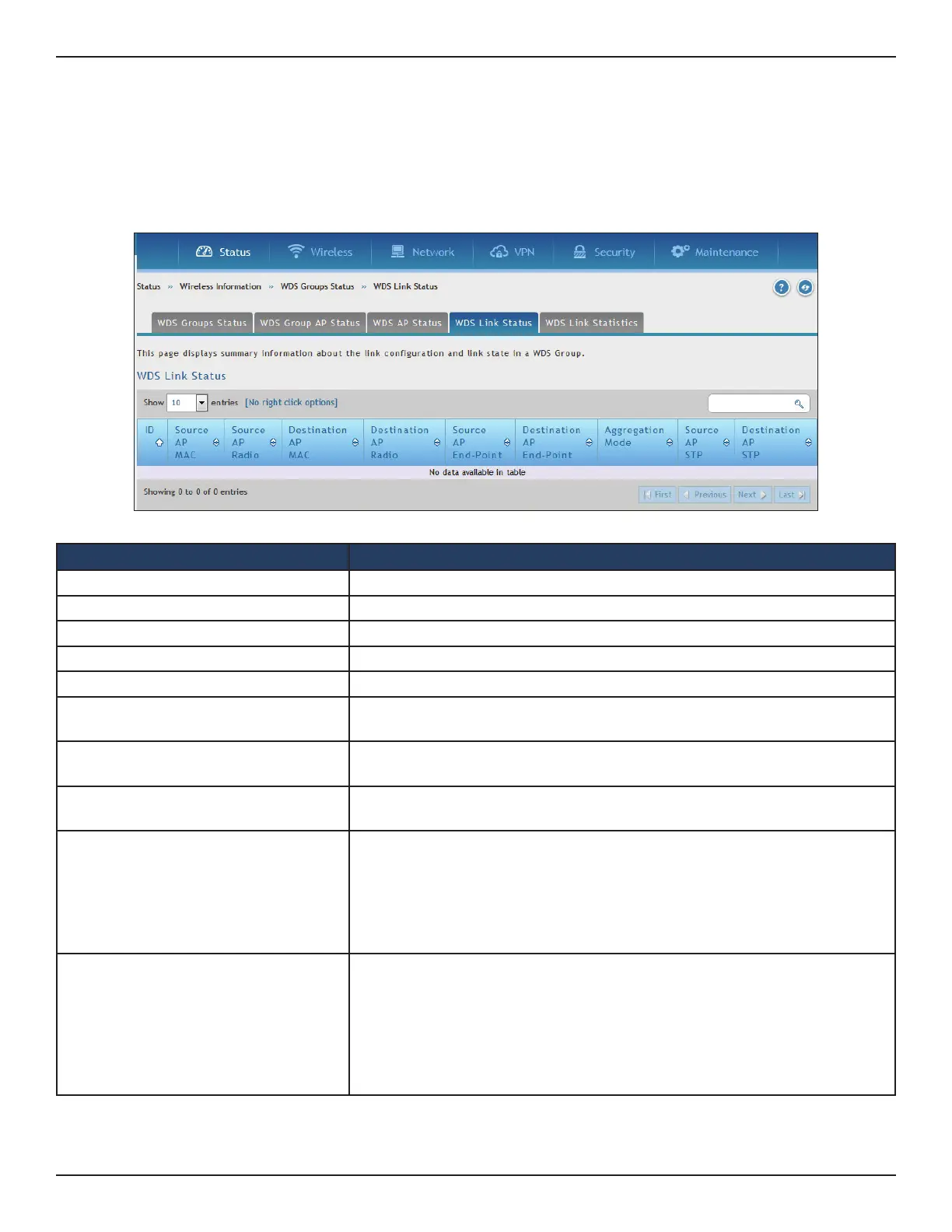

Section 8 - Viewing Status and Statistics
Path: Status > Wireless Information > WDS Groups Status> WDS Link Status
The WDS AP Link Status page displays summary information about the link conguration and link state in a WDS
group.
Field Description
ID The group number that identies the congured WDS AP group.
Source AP MAC The MAC address of one end-point of the WDS link.
Source AP Radio The radio number of the WDS link endpoint on the source AP.
Destination AP MAC The MAC address of the Source AP in the group.
Destination AP Radio The radio number of the WDS link endpoint on the destination AP.
Source AP End-Point
Indicates whether the AP specied by the destination MAC detected the AP
specied by the source MAC.
Destination AP End-Point
Indicates whether the AP specied by the source MAC detected the AP
specied by the destination MAC.
Aggregation Mode
When parallel links are dened between two APs, this eld indicates whether
this link is part of the aggregation link pair.
Source AP STP
Spanning Tree State of the link on the source AP, which is one of the following:
Disabled (STP is disable or Link is down)
• Forwarding
• Learning
• Listening
• Blocking
Destination AP STP
Spanning Tree State of the link on the destination AP, which is one of the
following:
Disabled (STP is disable or Link is down)
• Forwarding
• Learning
• Listening
• Blocking
Viewing WDS Link Status
