D-Link DWC-1000 User Manual 262

Section 7 - VPN

PPTP VPN

Server

Path: VPN > PPTP VPN > Server

A PPTP VPN can be established through this switch. Once enabled a PPTP server is available on the switch for

LAN and Option PPTP client users to access. Once the PPTP server is enabled, PPTP clients that are within the

range of congured IP addresses of allowed clients can reach the controller’s PPTP server. Once authenticated

by the PPTP server (the tunnel endpoint), PPTP clients have access to the network managed by the controller.

The range of IP addresses allocated to PPTP clients can coincide with the LAN subnet. The PPTP server will default

to local PPTP user authentication, but can be congured to employ an external authentication server.

Field Description

Enable PPTP Server Select either IPv4 or IPv6.

PPTP Routing Mode Select either NAT or Classical.

Starting/Ending IP Address Enter the IP address range to assign your PPTP clients.

IPv6 Prex If you selected IPv6, enter the IPv6 prex.

IPv6 Prex Length If you selected IPv6, enter the IPv6 prex length.

Authentication Select the authentication type from the drop-down menu.

Authentication Supported Toggle which type of authentication you want to enable to ON.

Idle TimeOut Enter the amount of time in seconds that the connection will disconnect when idle.

NetBIOS Toggle to ON to allow NetBIOS broadcasts to travel over the VPN tunnel.

Save Click to save your settings.

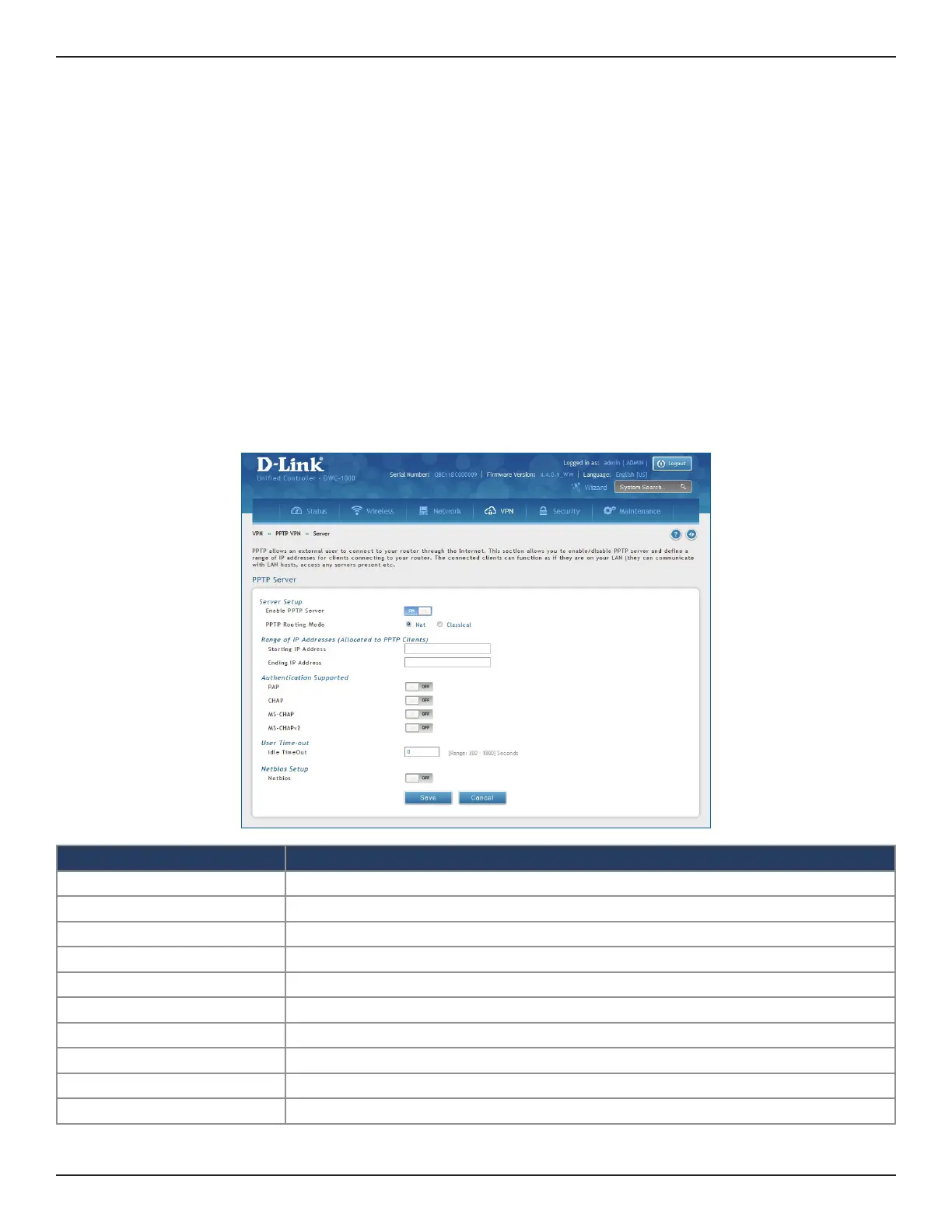

To create a PPTP VPN server:

1. Click VPN > PPTP VPN > Server.

2. Complete the elds in the table below and click Save.
