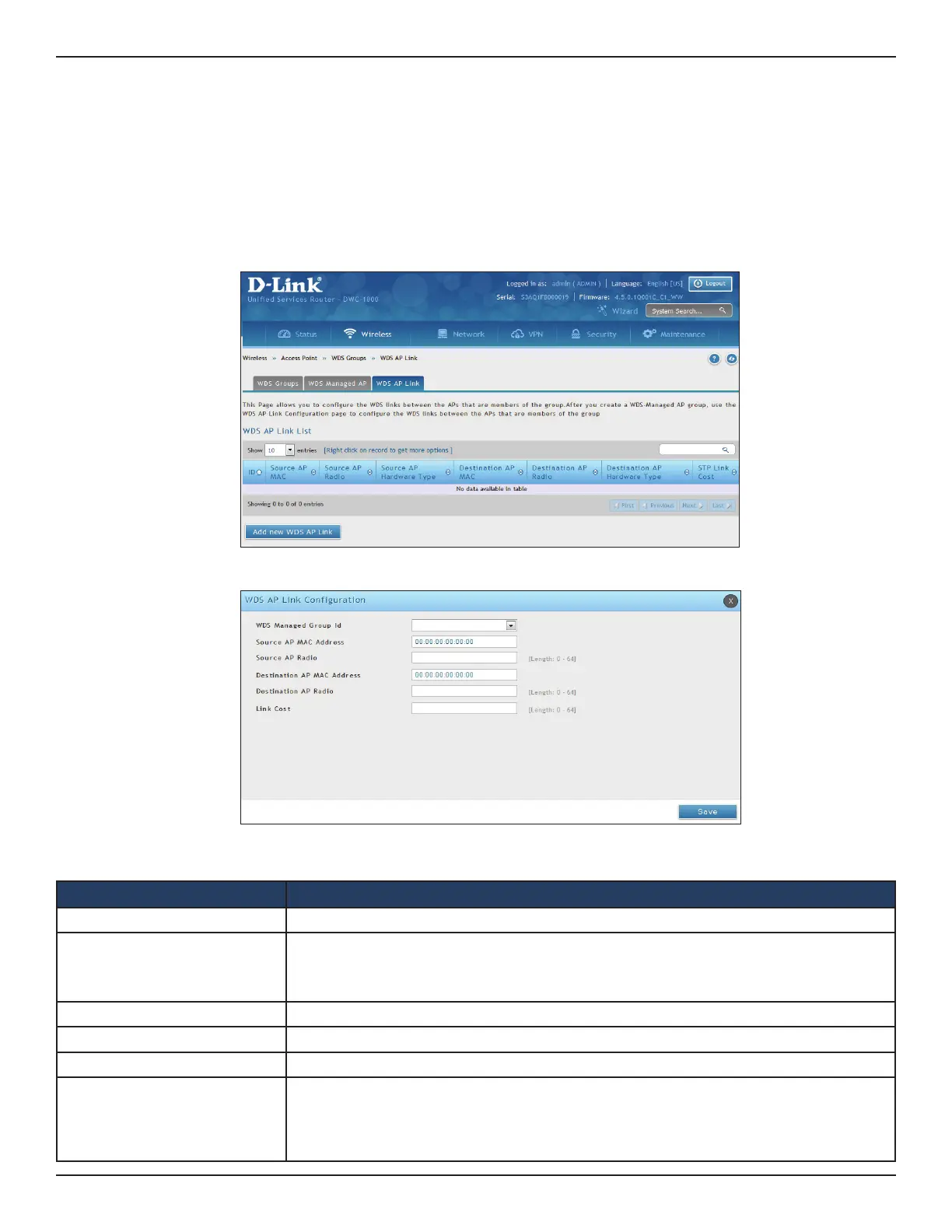

D-Link DWC-1000 User Manual 127
Section 4 - Advanced WLAN Conguration
Congure WDS AP Link
Path: Wireless > Access Point > WDS Groups > WDS AP Link
After you create a WDS‐Managed AP group, use the WDS AP Link Conguration page to congure the WDS links
between the APs that are members of the group.
1. Click Wireless > Access Point > WDS Groups > WDS AP Link tab.
2. Click Add New WDS AP Link.
3. Complete the elds in the table below and click Save.
Field Description
WDS Managed Group ID Select the ID associated with the group to congure.
Source AP MAC Address
MAC Address of the source AP.
Note: The WDS links are bidirectional. The terms Source and Destination simply help to
dierentiate between the WDS link endpoints.
Source AP Radio The radio number of the WDS link endpoint on the source AP.
Destination AP MAC Address The MAC address of the destination AP in the group.
Destination AP Radio The radio number of the WDS link endpoint on the destination AP.
Link Cost
Spanning Tree Path cost for the WDS link. The range is 0–64.
When multiple alternate paths are dened in the WDS group, the link cost is used to
indicate which links are the primary links and which links are the secondary links. The
spanning tree selects the path with the lowest link cost.
