D-Link DWC-1000 User Manual 374
Section 10 - Troubleshooting

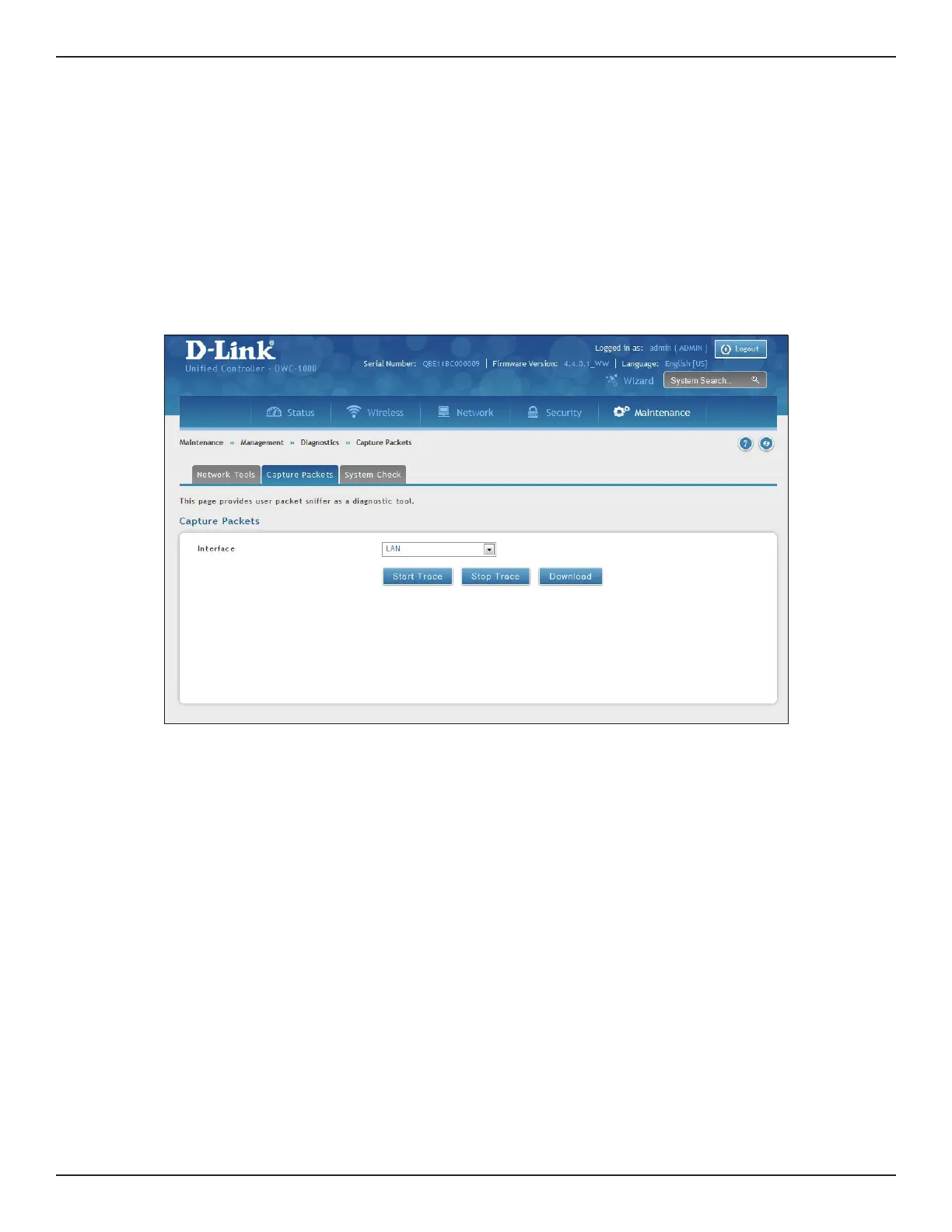

Capturing Log Packets
Path: Maintenance > Management > Management > Diagnostics > Capture Packets
The wireless controller lets you capture all packets that pass through the LAN or Option interface. The packet
trace is limited to 1 MB of data per capture session. If the capture le size exceeds 1MB, it is deleted automatically
and a new capture le is created.
To capture packets:
1. Go to Maintenance > Management > Diagnostics > Capture Packets.
2. Select an interface (LAN or Option 1/Option 2) from the drop-down menu.
3. Click Start Trace. The results are shown in the Command Output page. The trace can be downloaded
by clicking the Download button, which will immediately begin the download to the browsers default
download location.
