Section 4 - Advanced WLAN Conguration
WLAN Visualization
WLAN Visualization is a tool that provides a graphical representation of the wireless network through a Web
browser. The WLAN Visualization graph does not have a background image of its own, and so the administrator
can upload a static graphic image that provides the wireless topology of the APs and controllers in the wireless
network.

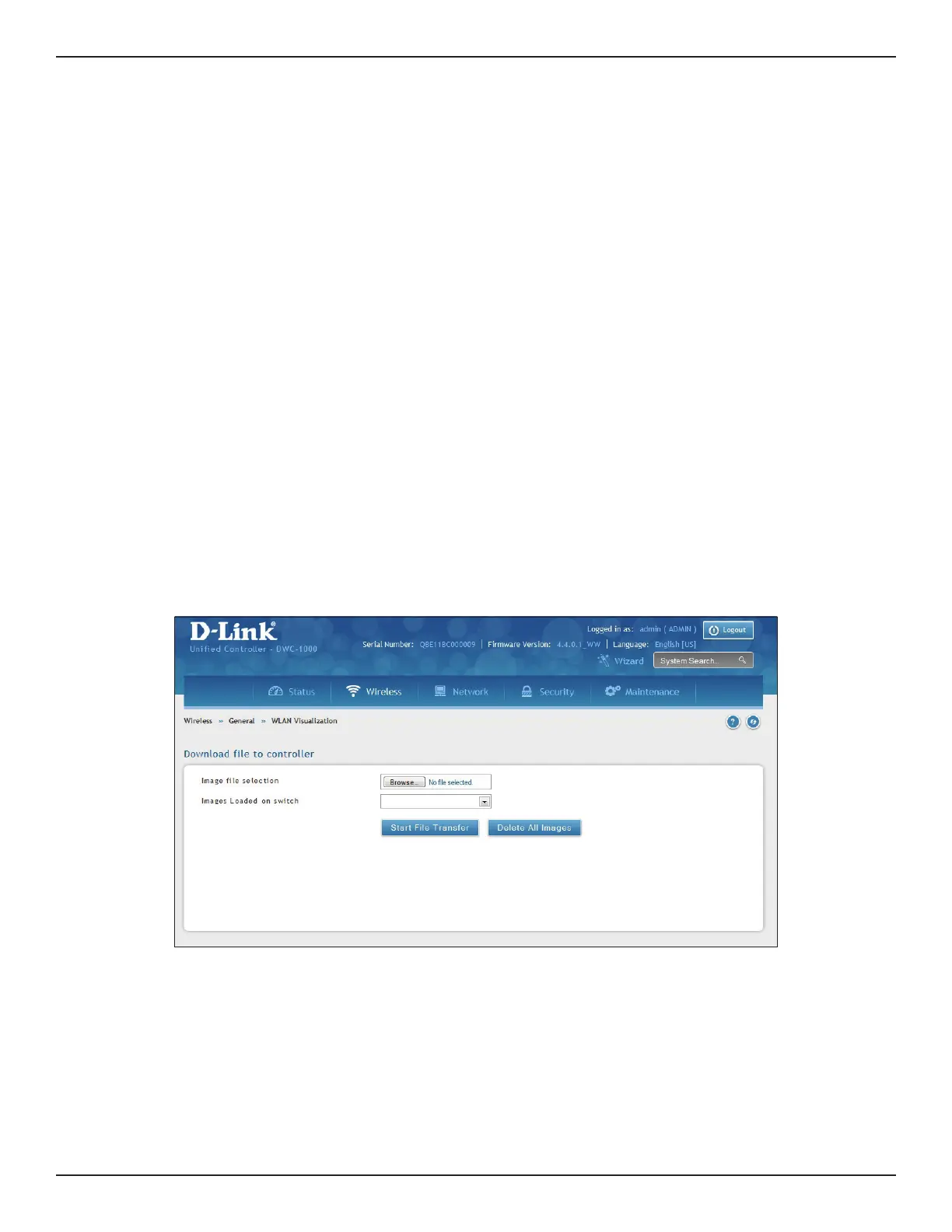

Upload Images
Path: Wireless > General > WLAN Visualization
User can upload one or more images, such as your oce oor plan, to provide customized information for
the WLAN Visualization feature. Images le formats that are recommended to upload should be in one of the
following formats:
• GIF (Graphics Interchange Format)
• JPG (Joint Photographic Experts Group)
It is also recommended that you do not use color images since the WLAN components might not show up well.
Once user uploads an image le and save the running conguration, the image remains on the controller and
you can assign it to an existing graph using the WLAN Deployment application.
Deleting Images
This option is available only if images are already loaded onto the controller. To delete all images loaded onto
the controller, click Delete All Images. Deleting background images is not recommended. However, if the user
deletes the images, the user has to refresh the WLAN Visualization tool after deleting images.
