D-Link DWC-1000 User Manual 292
Section 8 - Viewing Status and Statistics

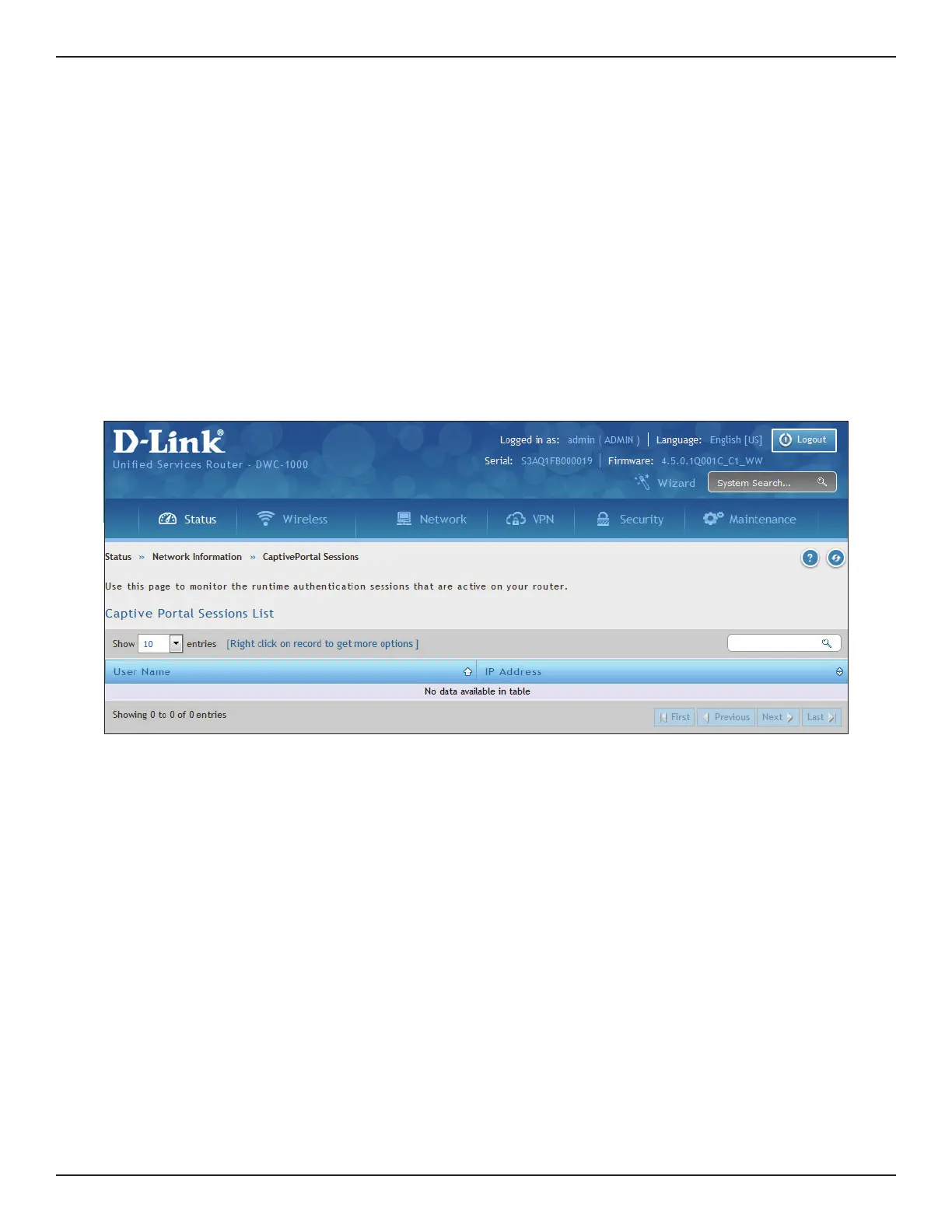

Viewing Captive Portal Sessions
Path: Status > Network Information > Captive Portal Sessions
The active run time internet sessions through the controller’s managed APs is listed in the below table. These
users are present in the local or external user database and have had their login credentials approved for internet
access.
If Internet session passthrough is enabled, select the session and right-click Disconnect allowing the admin to
selectively drop an authenticated user.
Select the session and right-click Block device. The “Block Device button will result in the selected client being
added to the blocked list (Security > Firewall > Blocked Clients), and the current and future sessions from this
client will be prevented.

Table of Contents

Other manuals for D-Link DWC-1000

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the D-Link DWC-1000 and is the answer not in the manual?

D-Link DWC-1000 Specifications

General IconGeneral
Ethernet LANYes
Wi-Fi standards802.11a, 802.11b, 802.11g
Networking standardsIEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u
Ethernet LAN data rates10, 100, 1000 Mbit/s
Number of managed Wi-Fi Access Points (max)6
Security algorithms3DES, DES, WEP, WPA, WPA2
USB 2.0 ports quantity2
Ethernet LAN (RJ-45) ports4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
CertificationFCC B, CE B, VCCI, C-tick, IC, cUL, LVD (EN60950-1)
Built-in displayNo
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 95 %
Power requirementsDC 12V/2.5A
Power consumption (typical)19.3 W
Pallet width1200 mm
Pallet length1100 mm
Pallet height (air)1419 mm
Pallet height (sea)1847 mm
Pallet gross weight (air)415236 g
Pallet gross weight (sea)545648 g
Quantity per pallet (air)144 pc(s)
Quantity per pallet (sea)192 pc(s)
Shipping (inner) case width296 mm
Shipping (inner) case height428 mm
Shipping (inner) case length354 mm
Shipping (inner) case weight10826 g
Shipping (inner) case net weight10016 g
Number of cartons per pallet (air)36 pc(s)
Number of cartons per pallet (sea)48 pc(s)
Quantity per shipping (inner) case4 pc(s)
Weight and Dimensions IconWeight and Dimensions
Package depth396 mm
Package width273 mm
Package height80 mm
Package weight2504 g
Dimensions (WxDxH)280 x 180 x 44 mm
