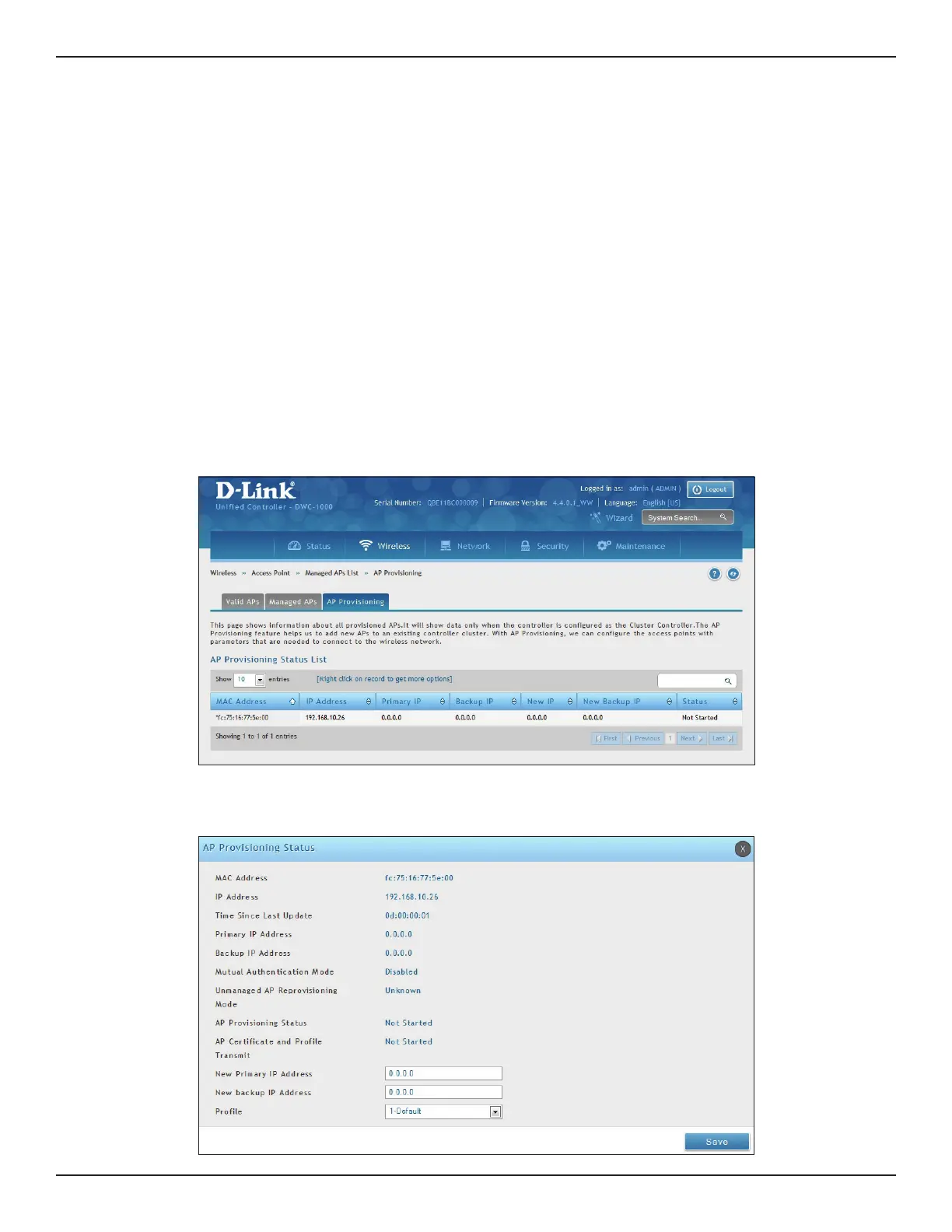

D-Link DWC-1000 User Manual 103
Section 4 - Advanced WLAN Conguration
Congure AP Provisioning
Path: Wireless > Access Point > Managed AP List > AP Provisioning
The AP Provisioning feature helps you to add new APs to an existing switch cluster. With AP Provisioning, you can
congure the access points with parameters that are needed to connect to the wireless network.
Use AP Provisioning to connect devices to a network enabled for mutual authentication (Wireless > Peer Group
> Peer Conguration). If a network is not enabled for mutual authentication, the APs can be attached to the
network by properly conguring the local Valid AP database or RADIUS AP database and discovery options. The
provisioning feature can optionally be used on networks not enabled for mutual authentication to simplify AP
attachment to the cluster.
Use the AP Provisioning page to view detailed provisioning information about an AP and use Edit by right-click
to specify the IP address of the primary or backup switch that provides provisioning information for the AP.
1. Go to Wireless > Access Point > Managed AP List > AP Provisioning page.
2. Right-click a managed AP from the status list and select Edit.
