D-Link DWC-1000 User Manual 379
Section 10 - Troubleshooting

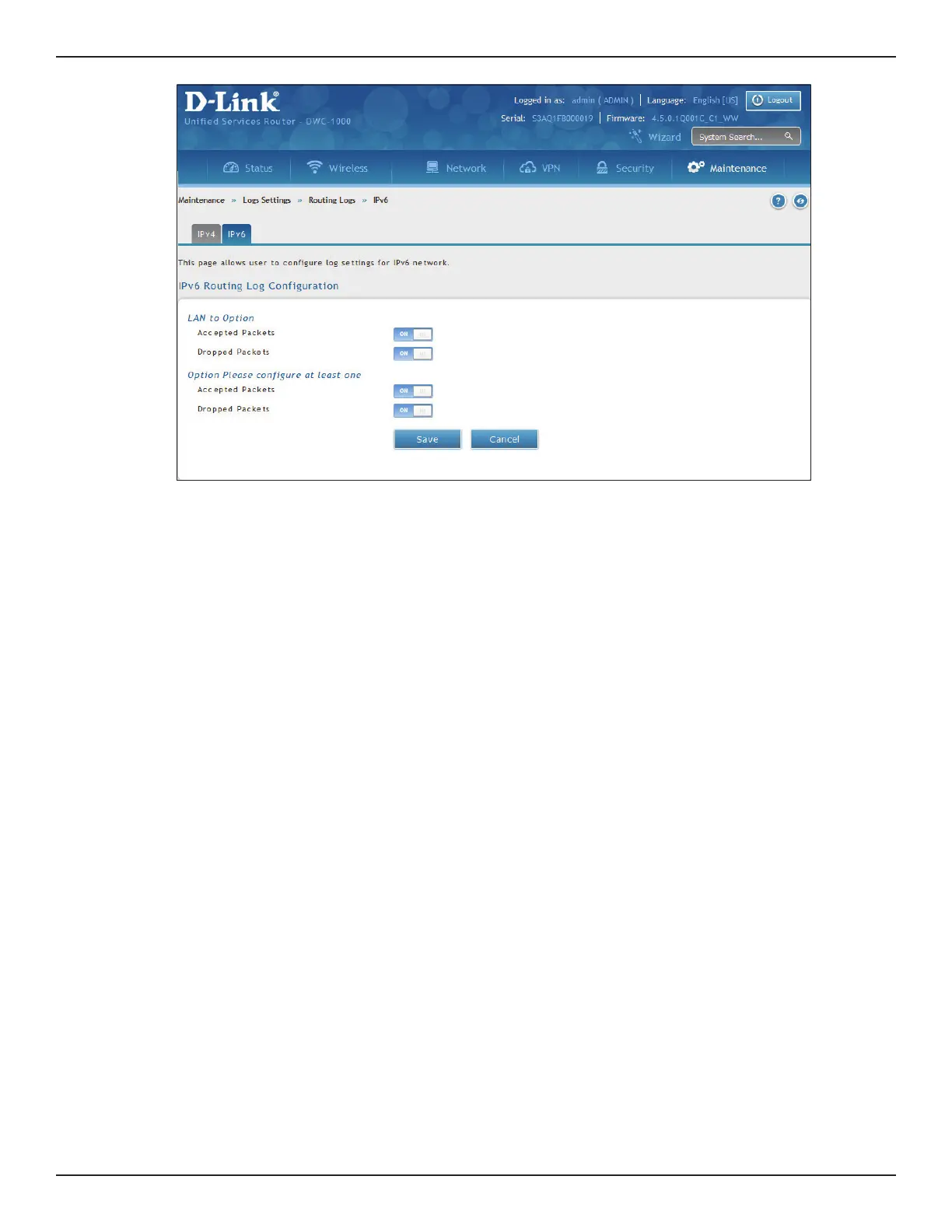

Accepted Packets: This logs packets that were successfully transferred through the segment. This op-
tion is useful when the Default Outbound Policy is “Block Always (see the Firewall Rules page under
the Firewall menu).
Example: If Accepted Packets from LAN to WAN is enabled and there is a rewall rule to allow SSH traf-
c from LAN, whenever a LAN machine tries to make an SSH connection, those packets will be accept-
ed and a message will be logged. (Make sure the log option is set to allow for this rewall rule.)
Dropped Packets: It logs packets that were blocked from being transferred through the segment. This
option is useful when the Default Outbound Policy is Allow Always (see the Firewall Rules page under
the Firewall menu).
Example: If Dropped Packets from LAN to WAN is enabled and there is a rewall rule to block SSH traf-
c from LAN, then whenever a LAN machine tries to make an SSH connection, those packets will be
dropped and a message will be logged. (Make sure the log option is set to allow for this rewall rule.)
