106 of 282 M-SV-001-EN Rev. G

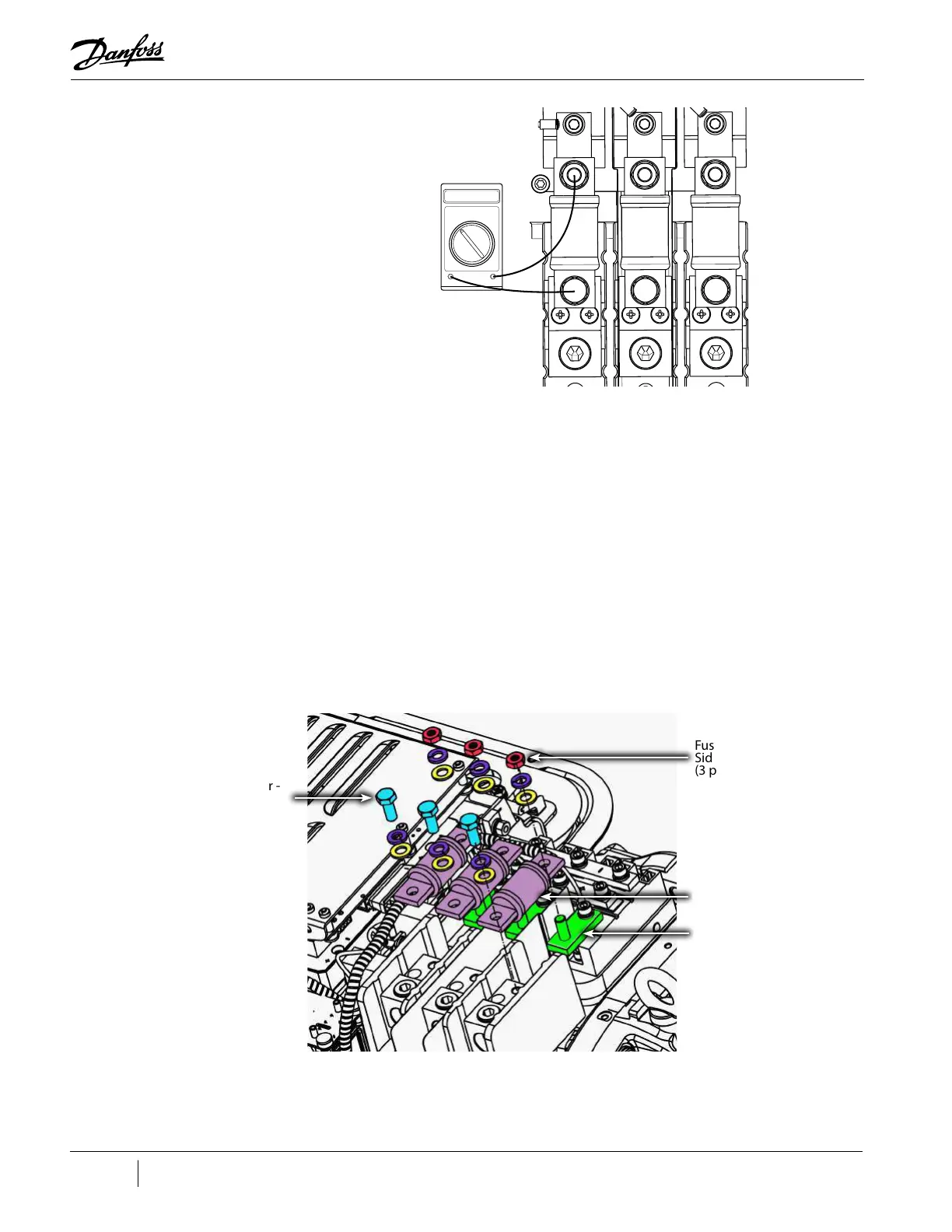

Figure 4-95 Terminal Block Fuse Test
4. Continue for the remaining two (2) fuses.
5. Replace any fuses that read open or have a resistance greater than 2Ω.
4.14.2 Terminal Block Fuse Removal and Installation
4.14.2.1 Terminal Block Fuse Removal
1. Isolate the compressor power as described in Section "1.8 Electrical Isolation" on page 19.
2. Remove the 5/16 - 18 fastener on the line side of the fuse.
3. Remove the 5/16 - 18 nut from the load side of the fuse.
4. Remove the fuse.
Figure 4-96 Terminal Block Fuse Removal
00.0Ω
Multimeter
Load Side
A/C Input Side
Fuse Retaining Nut - Load
Side, 5/16
(3 places)
Fuse Retaining Fastener -
Input Side, 5/16 - 18
(3 places)
Fuse
(3 places)
Short Bus Bar
(3 places)
To Next Page
