Danfoss Turbocor TTS Series

178 of 282 M-SV-001-EN Rev. G

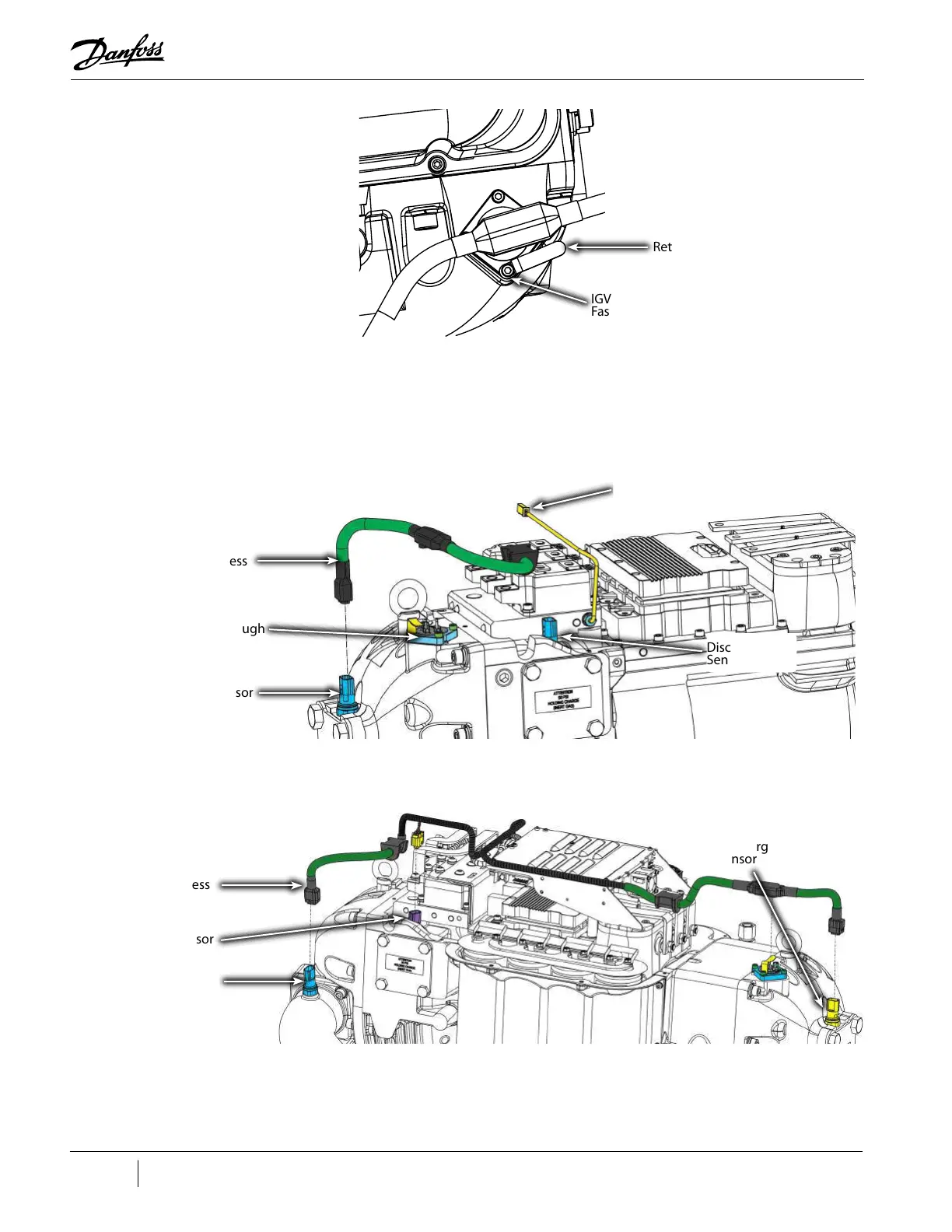

Figure 4-218 Retainer Clip Rotation
8. Disconnect the compressor cable harness from the IGV Motor, Suction and Discharge Sensors,
and SCR Temperature Sensor (if equiped). Refer to "Figure 4-219 Compressor Cable Harness
Removal - TTS/TGS/TTH/TGH (Except TTS300/TGS230)" or to "Figure 4-220 Compressor Cable
Harness Removal - TTH/TGH Only" for TTH only compressors.
Figure 4-219 Compressor Cable Harness Removal - TTS/TGS/TTH/TGH (Except TTS300/TGS230)
Figure 4-220 Compressor Cable Harness Removal - TTH/TGH Only
Retainer Clip
IGV Feedthrough
Fastener, M5x16
Cable Harness
SCR Temperature
Sensor Cable
Discharge
Sensor
IGV Motor Feedthrough
Suction Sensor
TTS350 Revision F Shown
Cable Harness
Suction Sensor
Discharge
Sensor
Interstage Sensor
