Figure 4-260 DC-DC Converter Removal
Installation
1. Clean the Inverter Heat Sink Plate where the original DC-DC was mounted.
2. Apply additional thermal paste to the DC-DC if it is to be reused.
NOTE
Open Frame DC-DC Converters do not require thermal paste.
3. Install the rear M3x10 fasteners that secure the DC-DC Converter to the Inverter Heat Sink
Plate. Do not tighten at this time; leave enough space under the fasteners to allow the DC-DC
Converter to slide under. Refer to "Figure 4-261 DC-DC Rear Fastener Install".

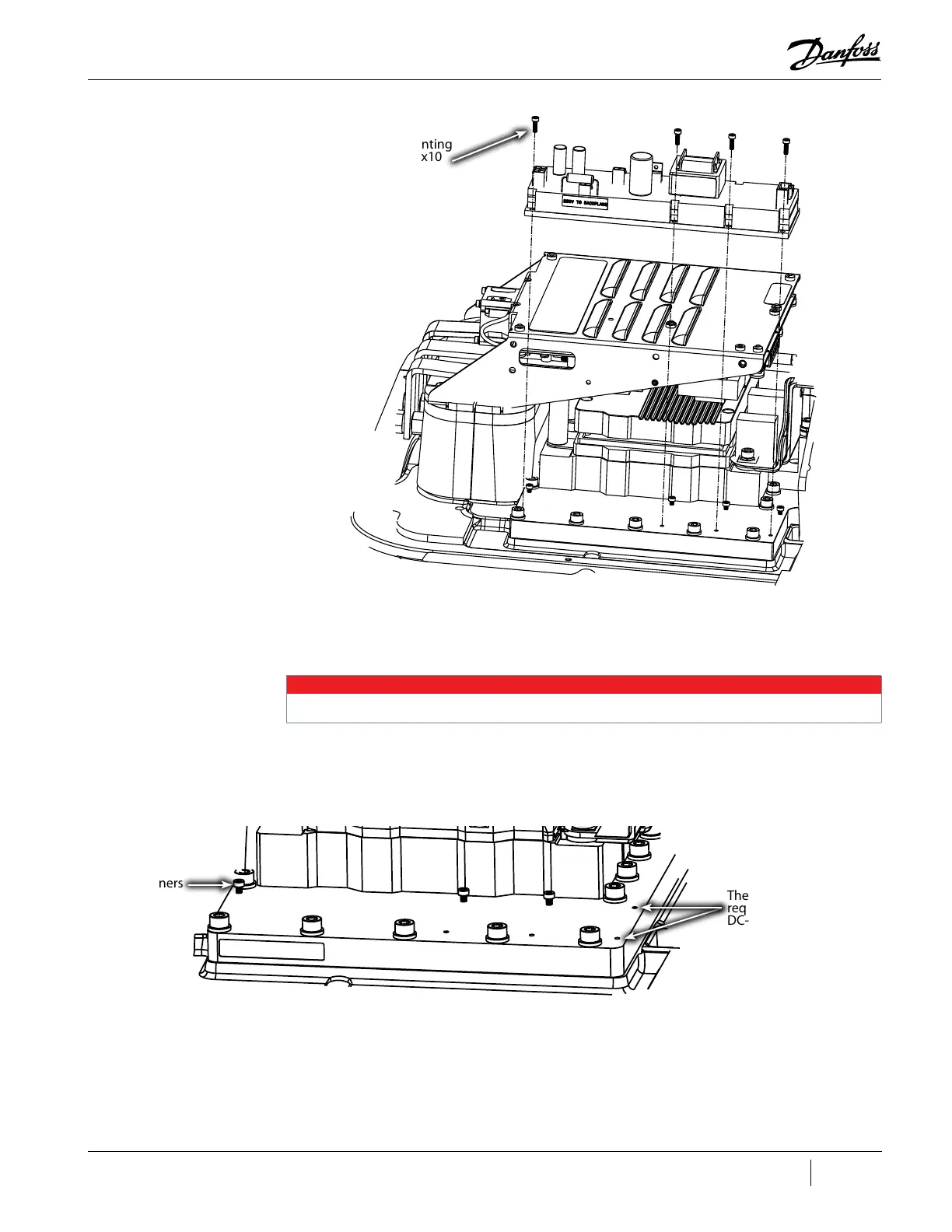

Figure 4-261 DC-DC Rear Fastener Install
4. Align the DC-DC Converter with the mounting holes on the Inverter Heat Sink Plate by sliding
the DC-DC Converter under the partially-installed rear fasteners.
5. Install the new front M3x10 fasteners that secure the DC-DC Converter to the Inverter Heat
Sink Plate. Torque all fasteners to 0.5 Nm (4 in.lb.). Refer to "Figure 4-262 Potted DC-DC - Top
View" on page 206 and "Figure 4-263 Open Frame DC-DC - Top View" on page 206 for the
fastener locations.
DC-DC Mounting
fastener M3x10
(3 -4 places
depending on
version)
Rear fasteners
These fasteners are not
required for open frame
DC-DC Converters
