22. Disconnect the compressor cable harness from the IGV Motor Feedthrough, Suction and
Discharge Sensors, and SCR Temperature Sensor. Refer to "Figure 4-210 Compressor Cable
Harness Removal - TTS300/TGS230".

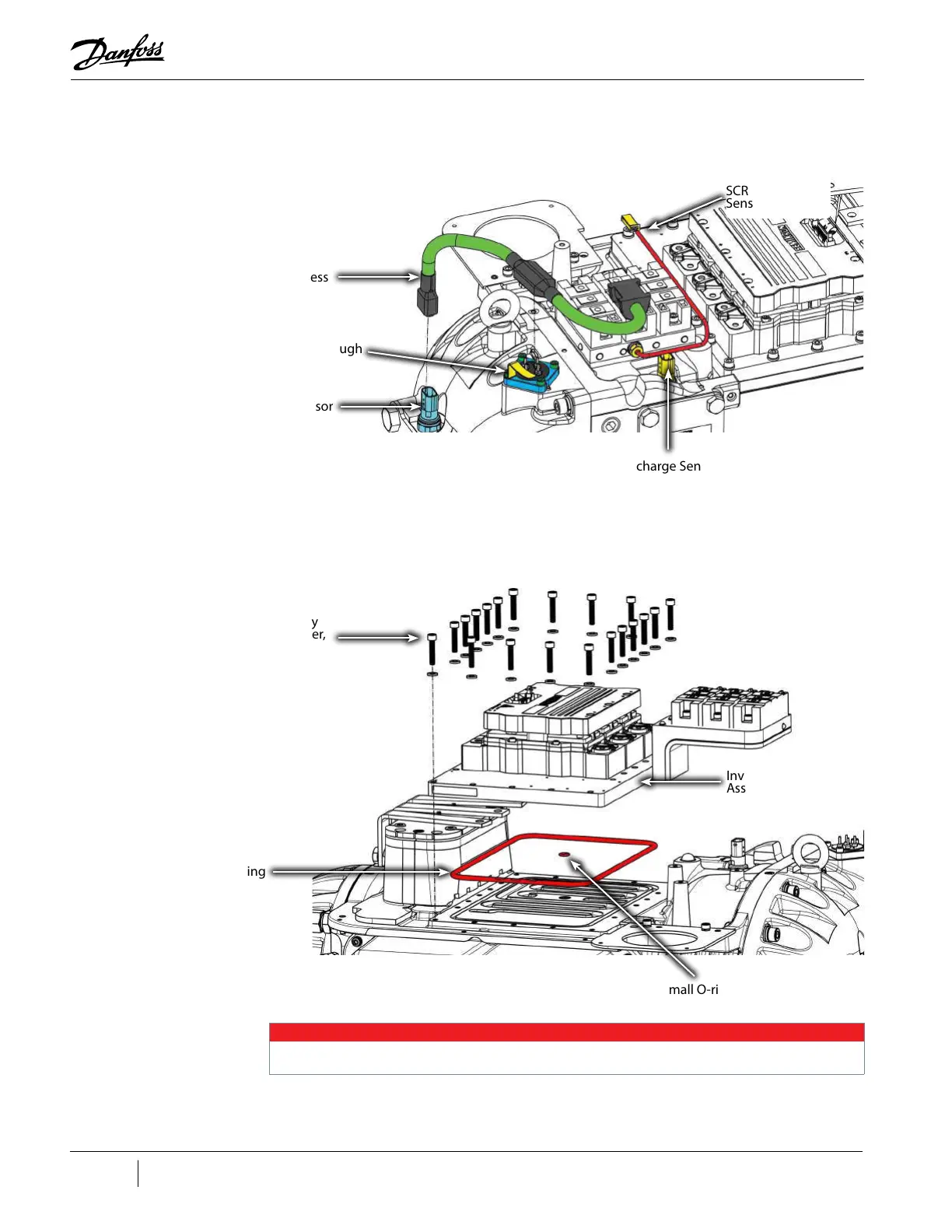

Figure 4-210 Compressor Cable Harness Removal - TTS300/TGS230
23. Remove the 20 M6x30 fasteners that secure the Inverter to the compressor main housing and
carefully remove the Inverter and remove and discard the two (2) O-rings underneath.
Figure 4-211 Inverter Assembly Removal - TTS300/TGS230
IGV Motor Feedthrough
Discharge Sensor
Suction Sensor
Cable Harness
SCR Temperature
Sensor Harness
Inverter Assembly
Mounting Fastener,
M6x30
(20 places)
Large O-ring
Small O-ring
Inverter
Assembly
NOTE
The SCRs do not need to be removed from the SCR Cooling Manifold when removing the Inverter.
