Danfoss Turbocor TTS Series User Manual

92 of 282 M-SV-001-EN Rev. G
27. Plug in the Feed Through and Suction Pressure Temperature Sensor Harness.
28. Torque the remaining Feed Through fastener (the one securing the Motor Harness Retainer
Clip) to 5Nm (44 in.lb.).
29. Return the compressor back to normal operation.
30. Test run the compressor to verify proper operation and movement of the IGV assembly. Refer
to "Figure 4-74 IGV Position Indicator" to verify the position of the IGV.

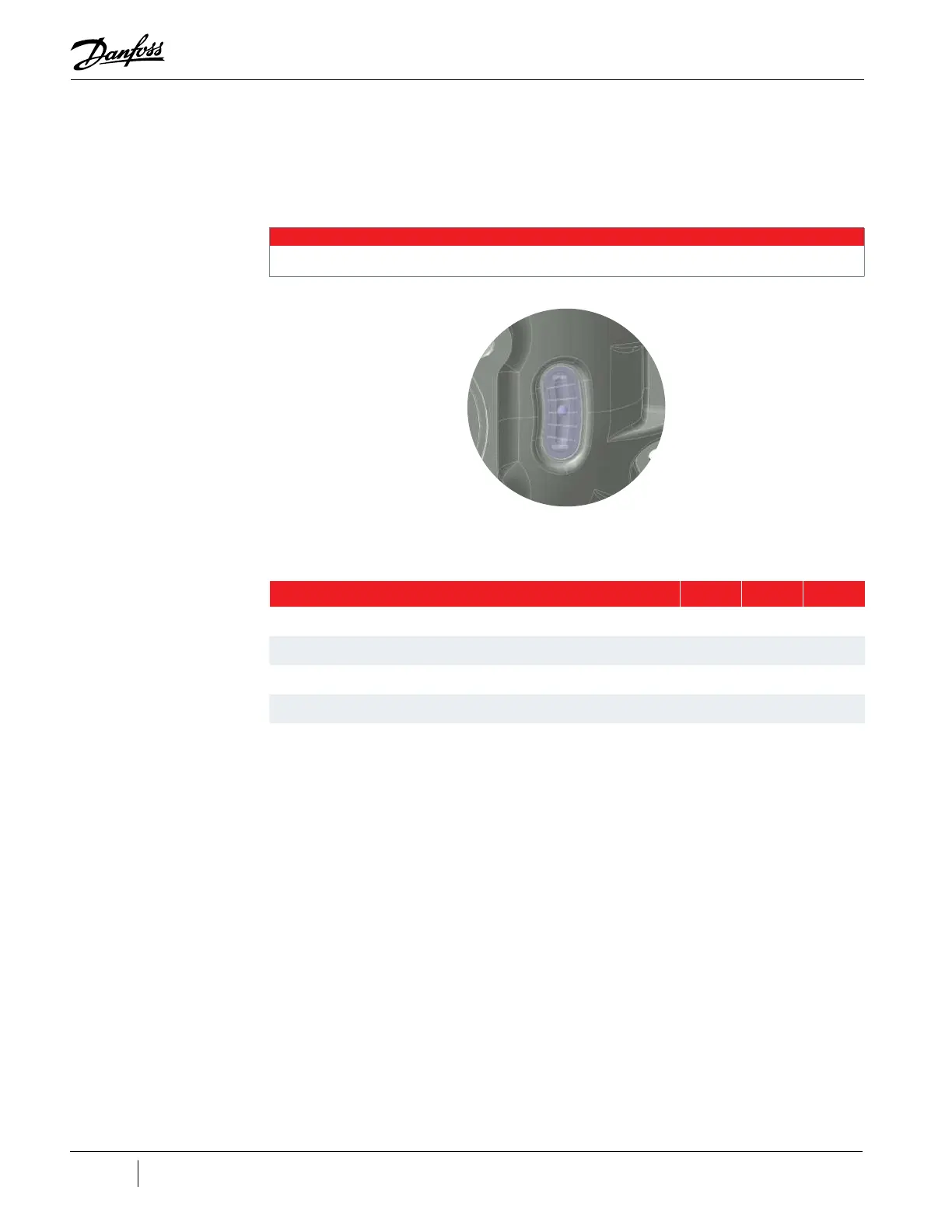

Figure 4-74 IGV Position Indicator
4.10.4 IGV Torque Specifications
Table 4-17 IGV Torque Specifications
NOTE
All IGV assemblies are fully open when the Position Indicator is in the top position.
Description Nm Ft.Lb. In.Lb.
IGV Housing Fastener, M10x40 22 16 195
IGV Feedthrough Fastener, M5x16 5 - 44
IGV Motor Setscrew, M5x8 5 - 44
IGV Throat Fastener, M6x55 5 - 44
Locking Collar 5 - 44
