128 of 282 M-SV-001-EN Rev. G

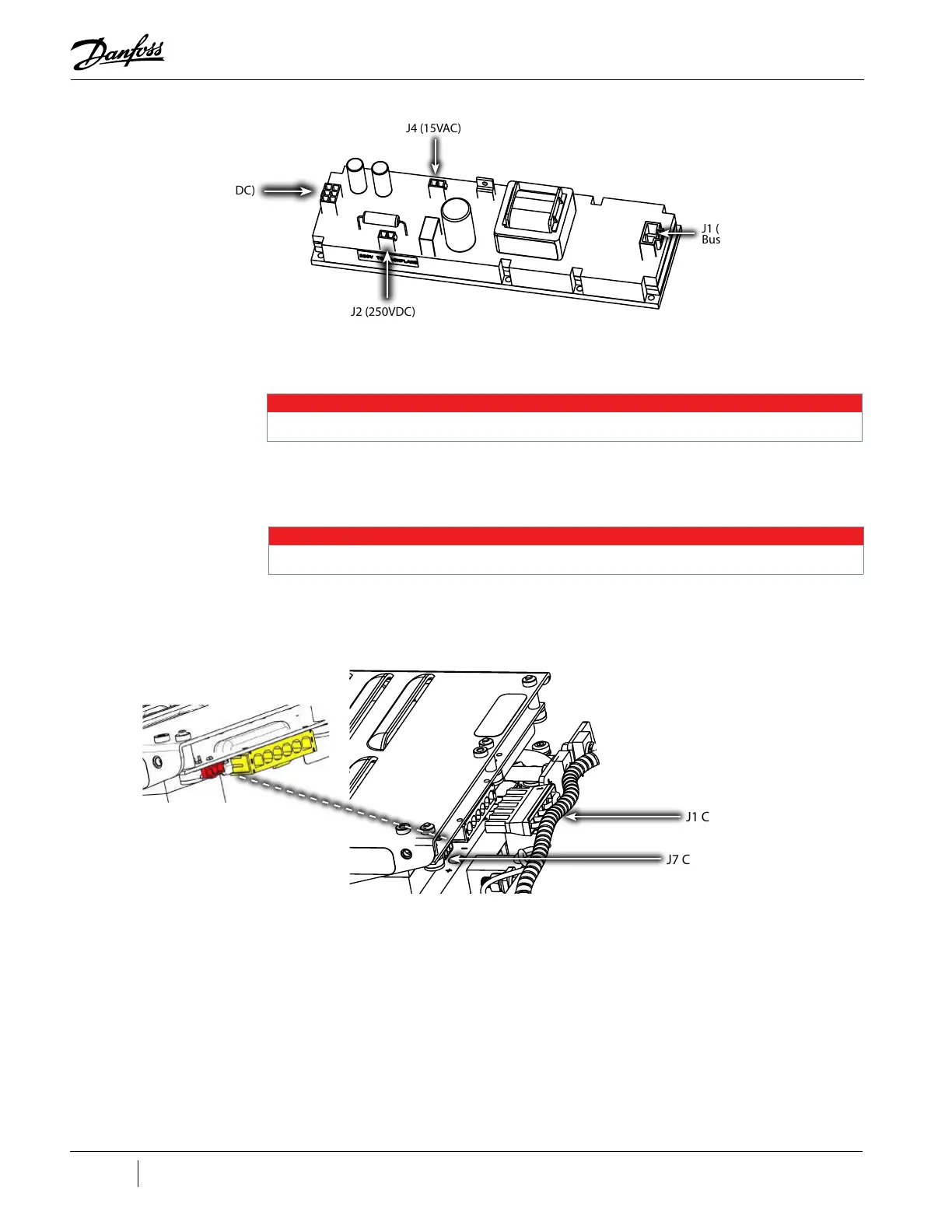

Figure 4-134 DC-DC Connectors (Potted)
6. If the DC-DC Converter is the potted style, remove the J7 connector from the Soft Start. Refer
to "Figure 4-135 Closed-Top Soft Start J1 and J7 Removal" for this and the following step.
7. Remove the Soft Start AC/DC Harness from the Softstart.
a. For compressors with the Closed-Top Soft Start, remove the J1 and J7 (if equiped)
connector. Refer to "Figure 4-135 Closed-Top Soft Start J1 and J7 Removal".
NOTE
Compressors utilizing the open frame DC-DC design do not utilize the J7: Trigger Signal connector.
b. For compressors with the Open-Top Soft Start, remove connectors J1 and J8. Refer to
"Figure 4-136 Open-Top Soft Start J1 and J8 Removal" on page 129.
Figure 4-135 Closed-Top Soft Start J1 and J7 Removal
J3 (24VDC)
J2 (250VDC)
J4 (15VAC)
J1 (High DC
Bus Voltage)
NOTE
TT/TG compressors utilizing the open frame DC-DC design do not utilize the Soft Start J7: Trigger Signal connector.
J1 Connector
J7 Connector
