Danfoss Turbocor TTS Series User Manual

179 of 282
M-SV-001-EN Rev. G
9. If the SCR Cooling Plate is to be replaced, remove the four (4) M6x35 SCR Cooling Manifold
fasteners that secure the SCR Cooling Manifold to the Inverter Heat Sink Plate and remove
the SCRs. (Refer to "Figure 4-221 SCR Manifold Removal - TTS/TGS/TTH/TGH (Except TTS300/
TGS230)".

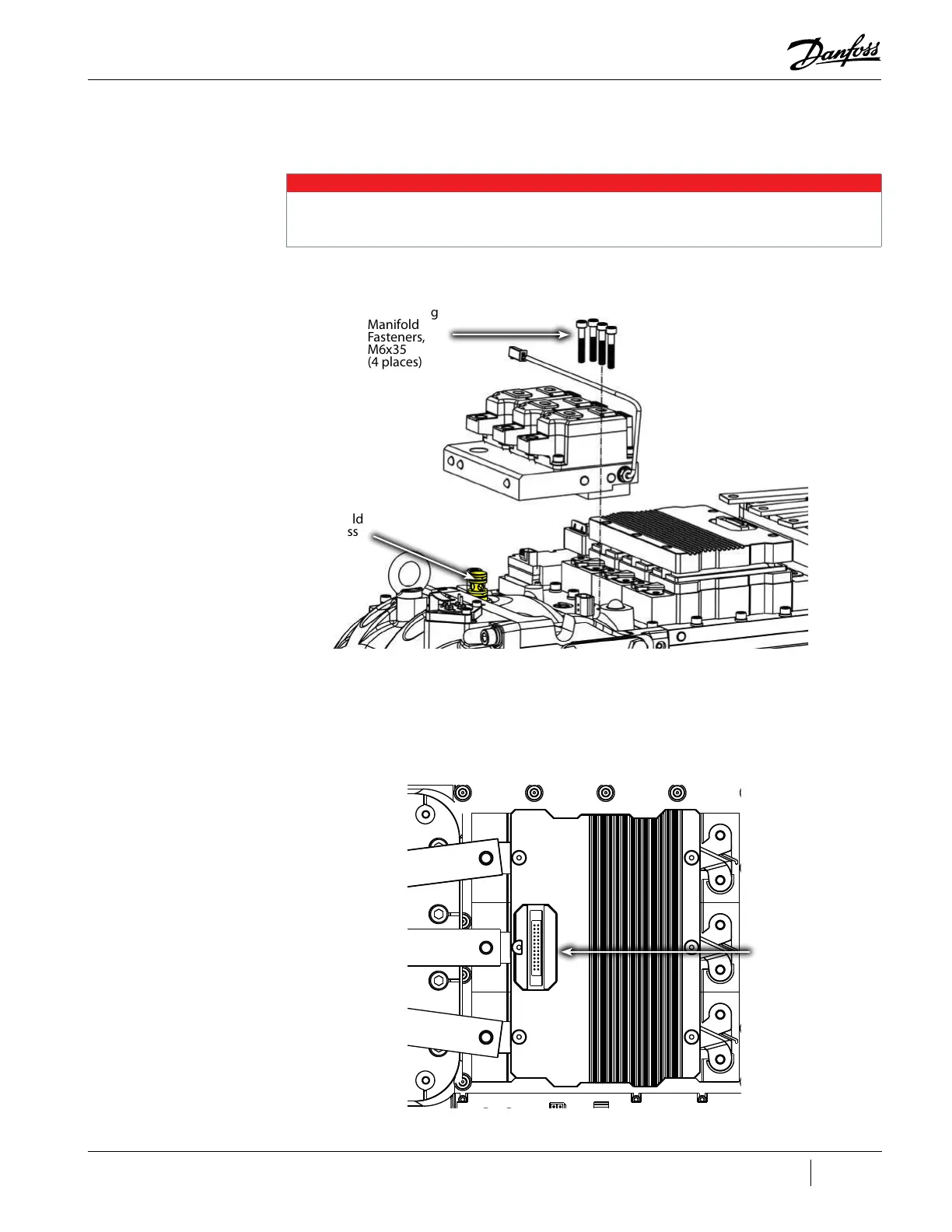

Figure 4-221 SCR Manifold Removal - TTS/TGS/TTH/TGH (Except TTS300/TGS230)
10. Remove the Inverter cable harness from the top of the Inverter. Refer to "Figure 4-222 Inverter
Harness Removal - TTS/TGS/TTH/TGH (Except TTS300/TGS230)".
Figure 4-222 Inverter Harness Removal - TTS/TGS/TTH/TGH (Except TTS300/TGS230)
NOTE
Removal of the SCR Cooling Manifold will require the manifold to rocked back and forth to disengage it from the SCR Manifold
Return Brass Fitting. If necessary, use a flat-blade screwdriver to gently pry the manifold upward. Use extreme caution to not
damage any of the components.
SCR Cooling
Manifold
Fasteners,
M6x35
(4 places)
SCR Manifold
Return Brass
Fitting
TTS350 Revision F Shown
Harness Connector
