167 of 282
M-SV-001-EN Rev. G
4. Use two fingers to simultaneously push outward on the Inverter Cable Harness latches. Refer to
"Figure 4-195 Harness Removal from Inverter".

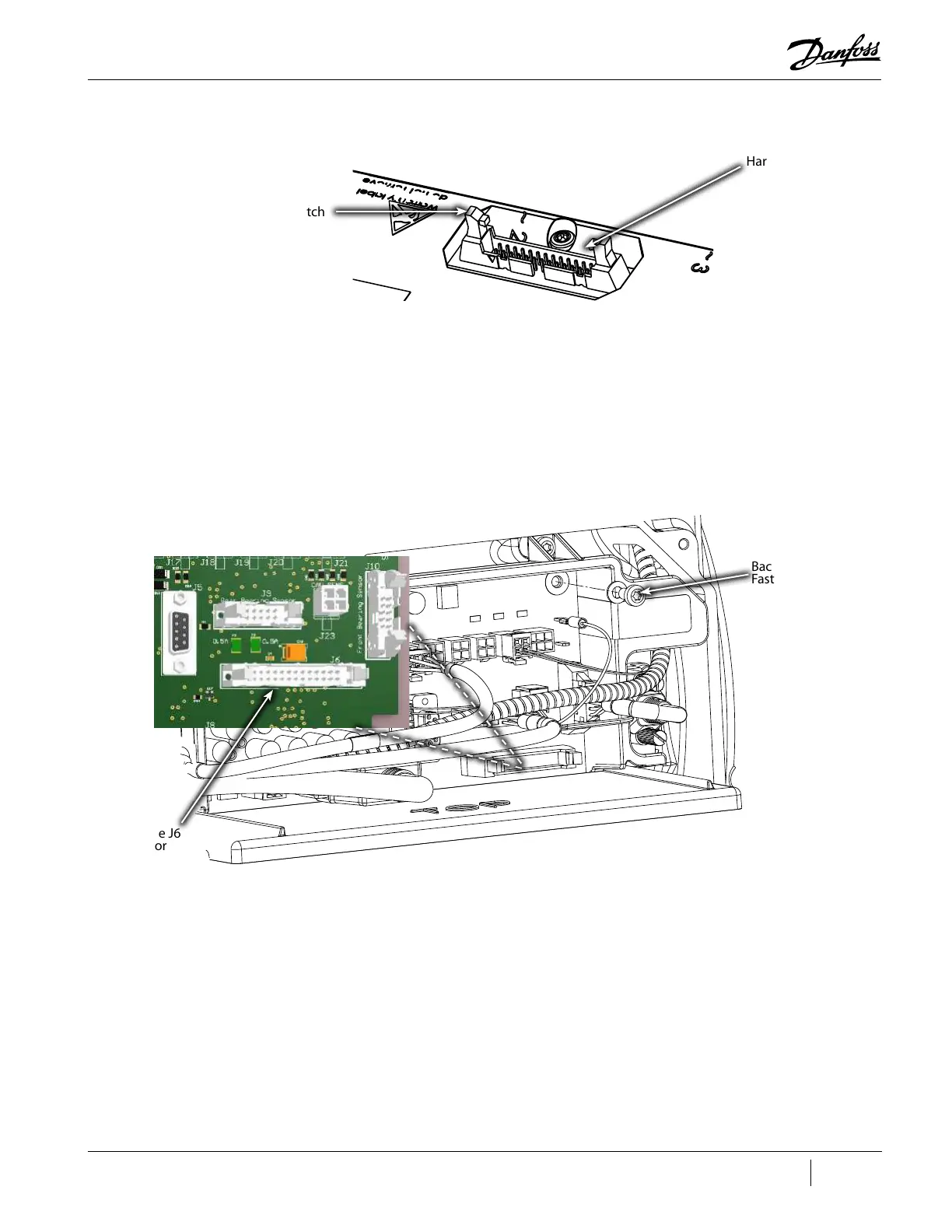

Figure 4-195 Harness Removal from Inverter
5. Verify there are no bent or broken pin connectors.
6. Use the same process to disconnect the Inverter Cable Harness from the Backplane J6
connection.
7. Verify there are no bent or broken pin connectors.
8. Remove the Inverter Cable Harness ground connection from the Backplane. Refer to "Figure
4-196 Harness Removal from Backplane".
Figure 4-196 Harness Removal from Backplane
9. Cut any cable ties securing the Inverter Cable Harness and pull through the compressor
housing passage.
4.23.5 Inverter Cable Harness Installation
1. Insert the Inverter Cable Harness through the compressor passage keeping in mind the ground
connection end needs to go to the Backplane.
Connector Latch
Harness Connector
Backplane Ground
Fastener
Backplane J6
Connector
To Next Page
