Danfoss Turbocor TTS Series User Manual

122 of 282 M-SV-001-EN Rev. G
3. Remove the SCR Gate Cable from the Softstart.
a. For compressors with the Closed-Top Soft Start, remove the J8 connector.
b. For compressors with the Open-Top Soft Start, remove the J2 connector.

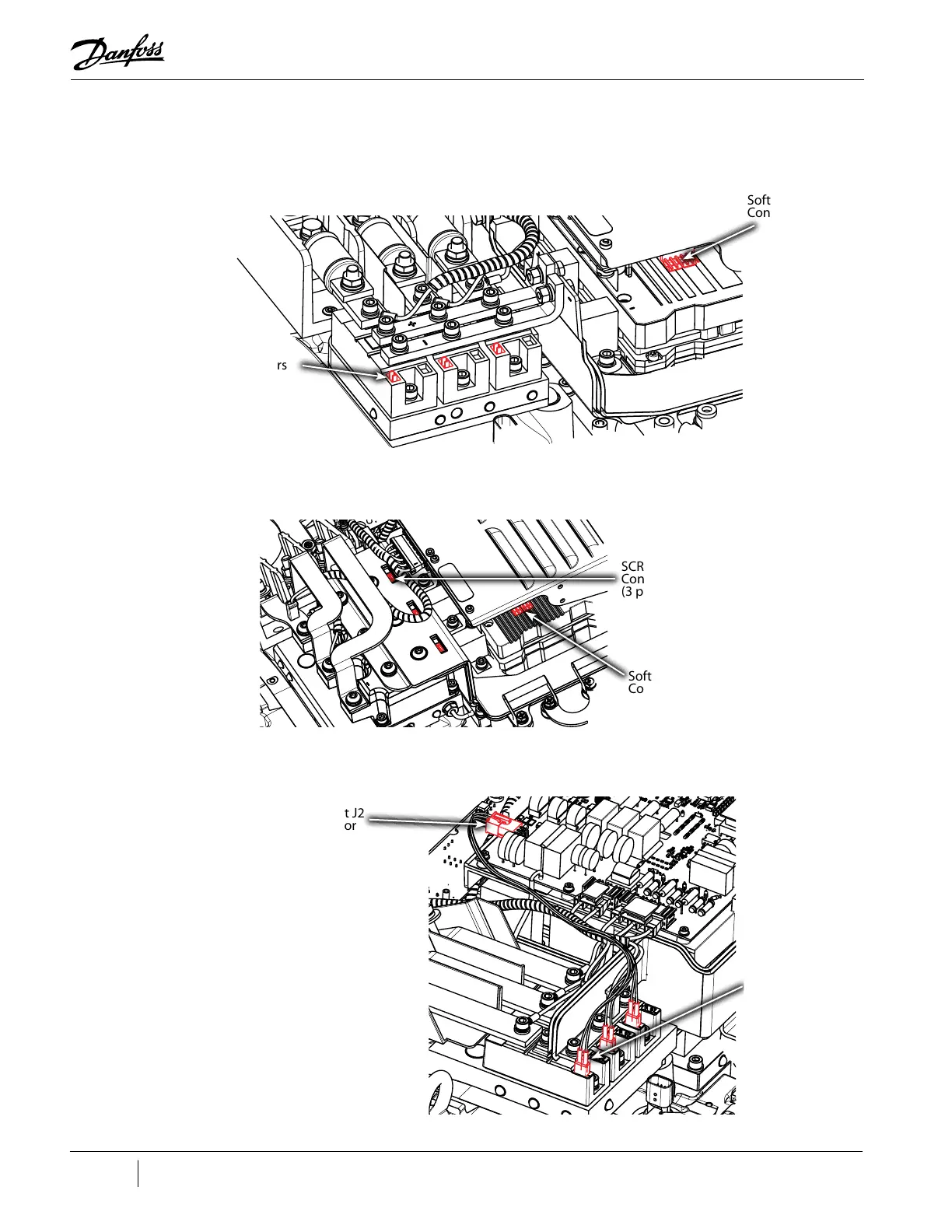

Figure 4-123 Soft Start SCR Gate Cable Removal - TTS300/TGS230
Figure 4-124 Soft Start SCR Gate Cable Removal at SCR - TTS/TGS/TTH/TGH Models Rev. F and Earlier (Except TTS300/TGS230)
Figure 4-125 Soft Start SCR Gate Cable Removal at SCR - TTS/TGS/TTH/TGH Models Rev. H (Except TTS300/TGS230)
SCR Gate
Connectors
(3 places)
Soft Start J8
Connector
SCR Gate
Connectors
(3 places)
Soft Start J8
Connector
Soft Start J2
Connector
SCR Gate
Connectors
(3 places)
