52 of 282 M-SV-001-EN Rev. G

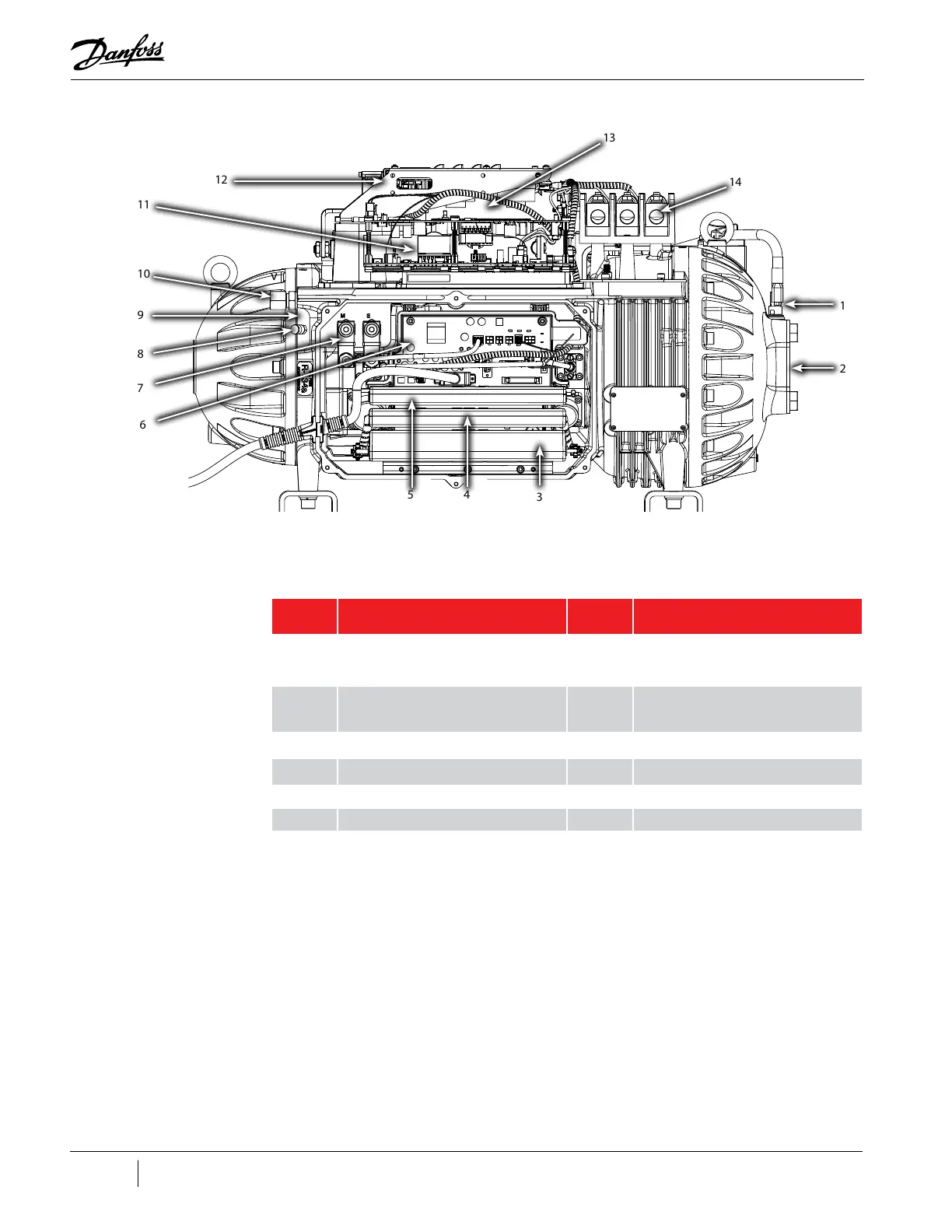

Figure 4-2 Compressor Component Identification - Service Side (Excludes TTH/TGH Compressors)
v
Table 4-2 Compressor Components Service Side (Excludes TTH/TGH Compressors)
TT300 Shown
1
2
3
45
6
8
9
10
11
12
13
14
No. Component No. Component
1 Suction Pressure/Temperature Sensor 8 Compressor Cooling Access Port Access
Port #1 (NOTE: TTS300/TGS230 have only
one access port)
2 IGV Suction Port 9 Compressor Cooling Access Port #2
(not available on TTS300/TGS230
compressors) NOT SHOWN
3 PWM Amplifier 10 Motor-Cooling Connection
4 BMCC 11 DC-DC Converter
5 Serial Driver 12 Soft Start
6 Backplane 13 Inverter
7 Motor-Cooling Solenoids 14 Fast-Acting Fuses (TTS300/TGS230 only)
7
