Danfoss Turbocor TTS Series User Manual

55 of 282
M-SV-001-EN Rev. G

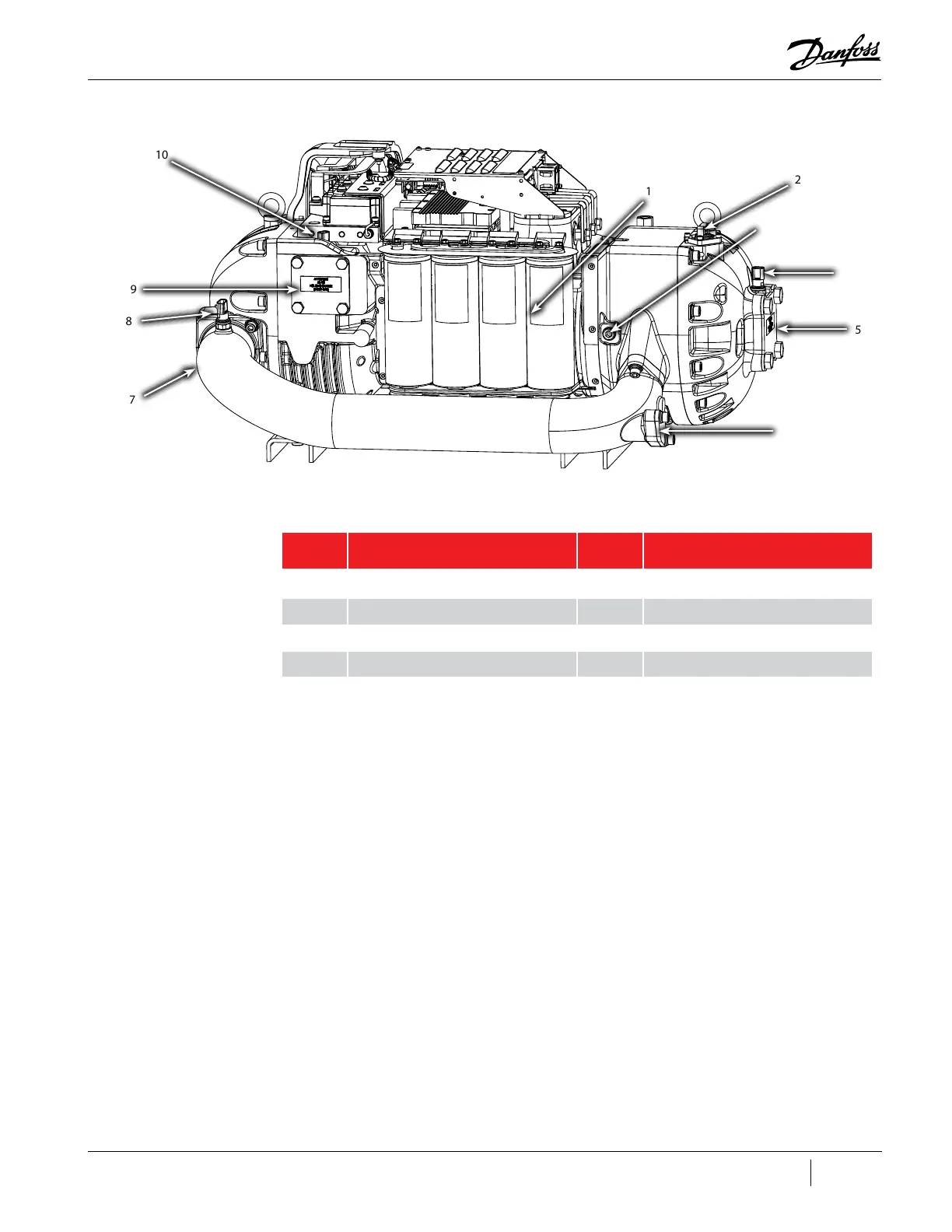

Figure 4-5 Compressor Component Identification - Capacitor Side (TTH/TGH Only)
Table 4-5 Compressor Components Capacitor Side (TTH/TGH Only)
1
5
9
7
6
2
10
3
8
4
No. Component No. Component
1 Capacitors 6 Economizer Port
2 IGV Motor Feedthrough 7 Interstage Pipe
3 Optional Pressure Regulating Port 8 Interstage Temperature/Pressure Sensor
4 Suction Temperature/Pressure Sensor 9 Discharge Port
5 Suction Port 10 Interstage Temperature/Pressure Sensor
