Figure 4-136 Open-Top Soft Start J1 and J8 Removal
8. Remove the harness.
4.18.2.2 Soft Start AC/DC Harness Removal - TTS/TGS/TTH/TGH (Except TTS300/TGS230)
1. Isolate compressor power as described in Section "1.8 Electrical Isolation" on page 19.
2. Disconnect the L1, L2, and L3 terminals from the AC Bus Bars.
a. For Revision F and earlier compressors, refer to "Figure 4-137 AC Input Spade and DC
Spade Connector Removal - TTS/TGS/TTH/TGH Rev. F and Earlier (Except TTS300/TGS230)".
b. For Rev H compressors, refer to "Figure 4-138 AC Input Ring and DC Spade Connector
Removal - TTS/TGS/TTH/TGH Rev. H (Except TTS300/TGS230)" on page 130.
3. Disconnect the -DC and +DC spade terminals from the DC bus bar.
a. For Revision F and earlier compressors refer to "Figure 4-137 AC Input Spade and DC
Spade Connector Removal - TTS/TGS/TTH/TGH Rev. F and Earlier (Except TTS300/TGS230)".
b. For Rev H compressors, refer to "Figure 4-138 AC Input Ring and DC Spade Connector
Removal - TTS/TGS/TTH/TGH Rev. H (Except TTS300/TGS230)" on page 130.

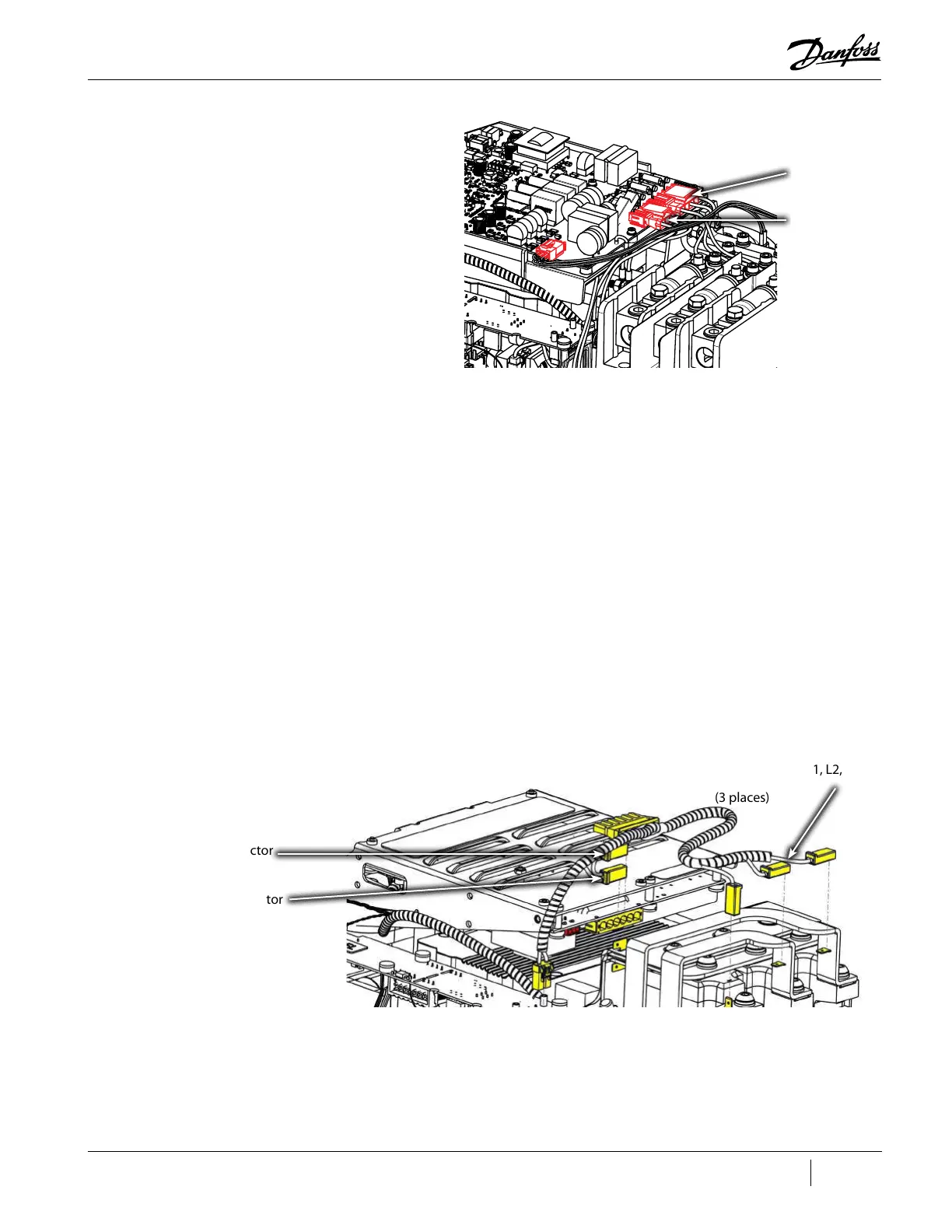

Figure 4-137 AC Input Spade and DC Spade Connector Removal - TTS/TGS/TTH/TGH Rev. F and Earlier (Except TTS300/TGS230)
J1
J8
AC/DC Bus Bar (L1, L2, & L3)
Terminals
(3 places)
-DC Spade Connector
+DC Spade Connector
To Next Page
