Danfoss Turbocor TTS Series User Manual

160 of 282 M-SV-001-EN Rev. G
5. Carefully lift the DC Bus Bars and capacitors out as an assembly. Do not remove the bleed
resistors or capacitors from the bus bars. Refer to "Figure 4-185 Capacitor Assembly Removal
- TTS300/TGS230".

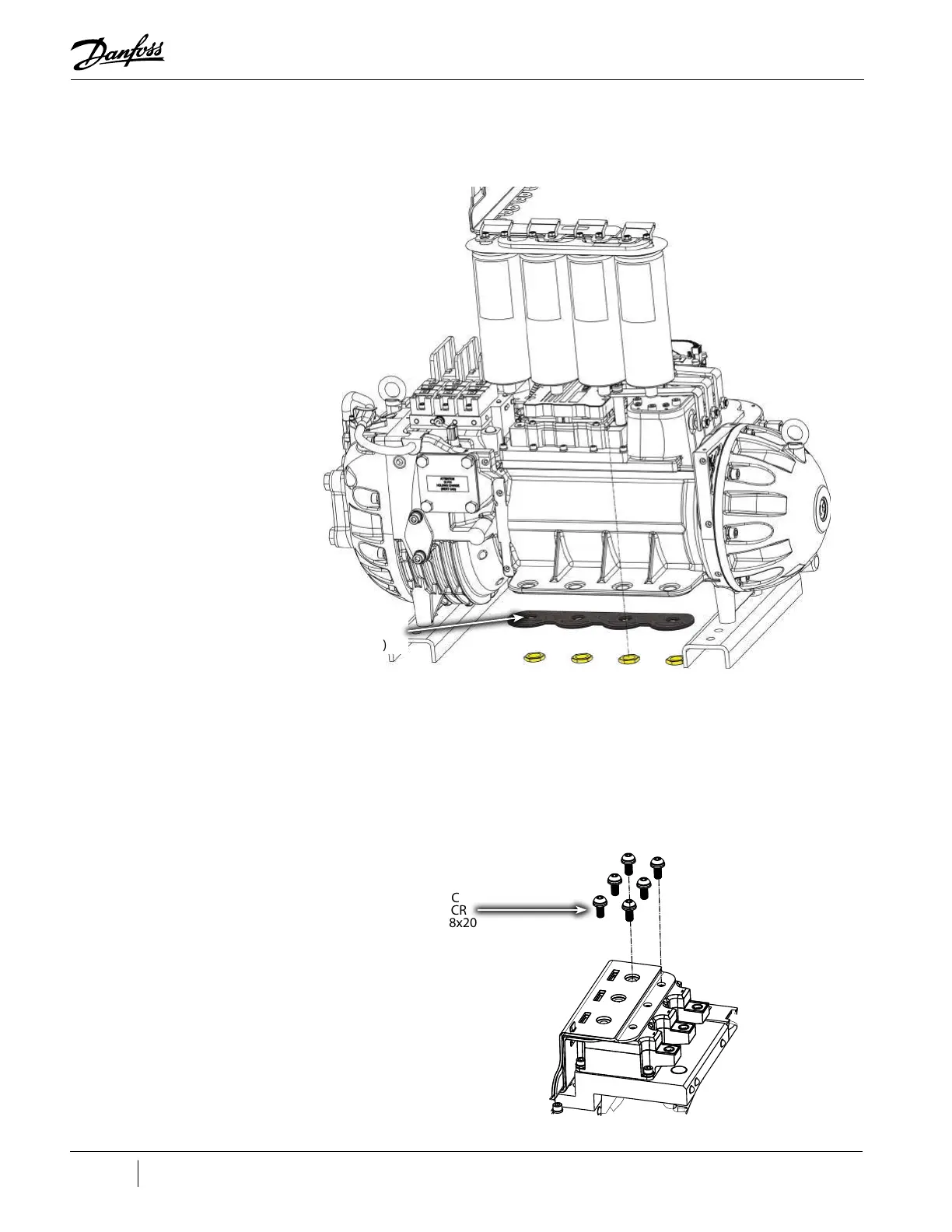

Figure 4-185 Capacitor Assembly Removal - TTS300/TGS230
6. Continue to "4.22.4.3 DC Capacitor Bus Bar Assembly Installation - TTS300/TGS230" on page
163.
4.22.4.2 DC Capacitor Bus Bar Assembly Removal - TTS/TGS/TTH/TGH (Except TTS300/TGS230)
7. Remove the six (6) DC bus fasteners from the SCRs. Refer to "Figure 4-186 SCR Bus Bar Removal
- TTS/TGS/TTH/TGH Rev. F and Earlier (Except TTS300/TGS230)" or "Figure 4-187 SCR Bus Bar
Removal - TTS/TGS/TTH/TGH Rev. H (Except TTS300/TGS230)" on page 161.
Figure 4-186 SCR Bus Bar Removal - TTS/TGS/TTH/TGH Rev. F and Earlier (Except TTS300/TGS230)
Capacitor
Membrane
(foam side up)
Capacitor DC
Bus Bar to SCR
Fastener, M8x20
(6 places)
