Figure 4-202 DC Bus Bar Mylar Removal - TTS300/TGS230
14. Remove the M8x70 Motor Bus Bar fasteners from the Inverter. Refer to "Figure 4-203 Inverter
Copper Tube Removal" and the note below.
15. Slide out all three (3) Inverter Copper Tubes.

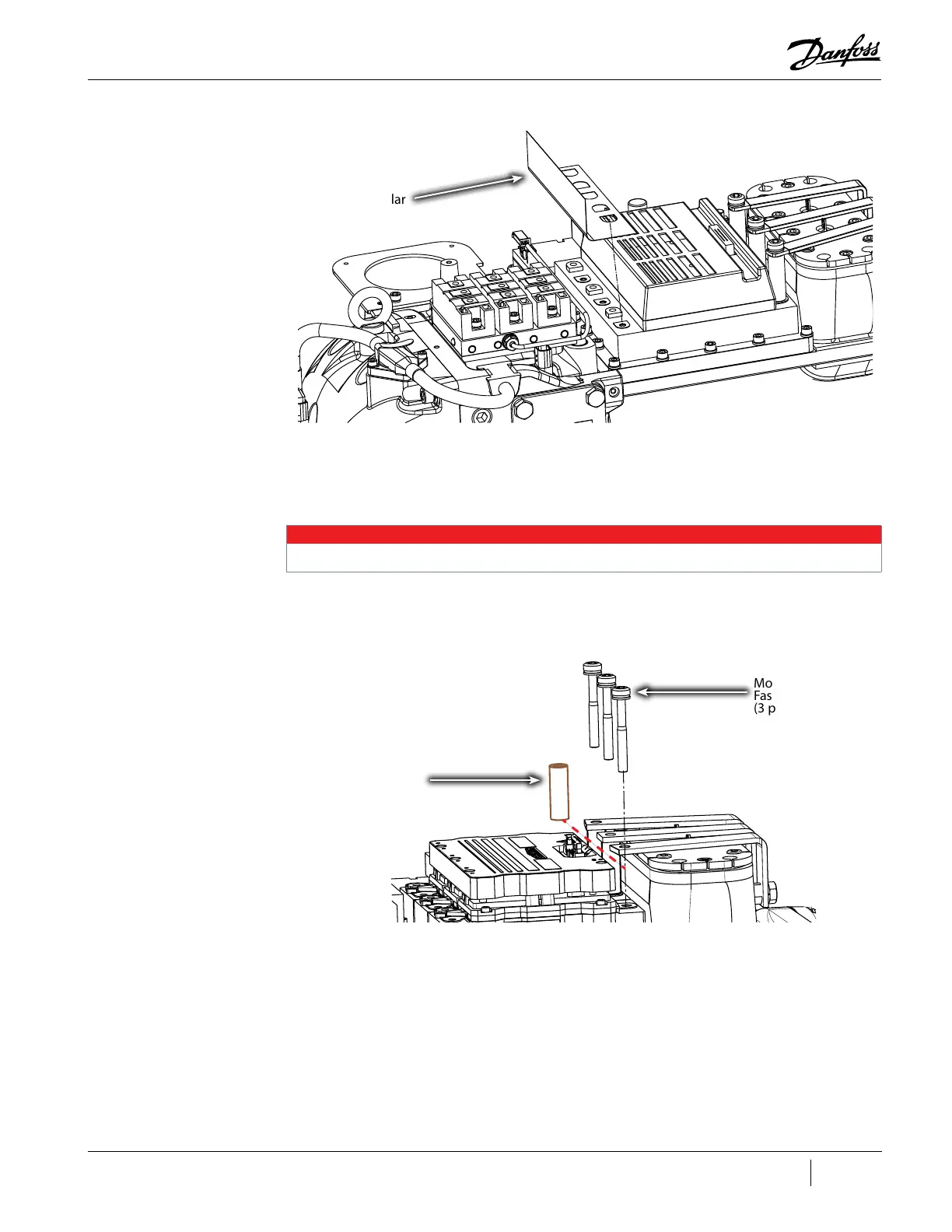

Figure 4-203 Inverter Copper Tube Removal
Mylar
Motor Bus Bar
Fastener, M8x70
(3 places)
Inverter Copper
Tubes
(3 places)
NOTE
It is not necessary to completely remove the Motor Bus Bars.
