173 of 282
M-SV-001-EN Rev. G
18. Remove the M3x10 fasteners from that secure the DC-DC. There are eight (8) fasteners that
secure the Potted DC-DC and six (6) that secure the Open Frame DC-DC. Refer to "Figure 4-207
DC-DC Removal (Potted DC-DC Shown)".
19. Remove the DC-DC from the Inverter Heat Sink Plate.

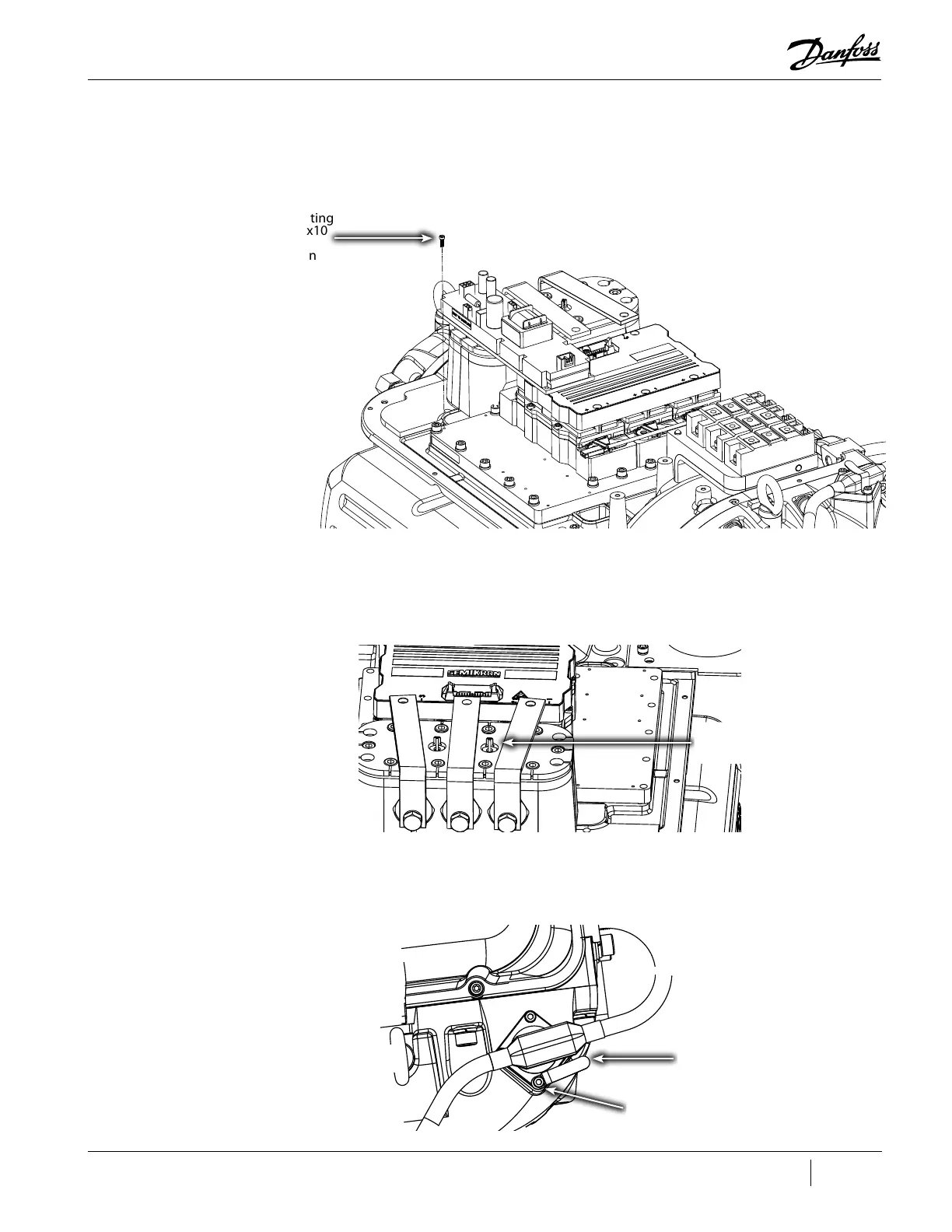

Figure 4-207 DC-DC Removal (Potted DC-DC Shown)
20. Disconnect the wires from the Motor Winding Sensor. Refer to "Figure 4-208 Motor Winding
Sensor Connector Removal".
Figure 4-208 Motor Winding Sensor Connector Removal
21. Loosen the M5x16 fastener containing the Retainer Clip and rotate the clip to allow for the
connector to be removed. Refer to "Figure 4-209 Retainer Clip Rotation".
Figure 4-209 Retainer Clip Rotation
DC-DC Mounting
Fastener, M3x10
(6 or 8 places
depending on
version)
Motor Winding
Sensor Connectors
(2 places)
Retainer Clip
IGV Feedthrough
Fastener, M5x16
To Next Page
