Danfoss Turbocor TTS Series User Manual

266 of 282 M-SV-001-EN Rev. G

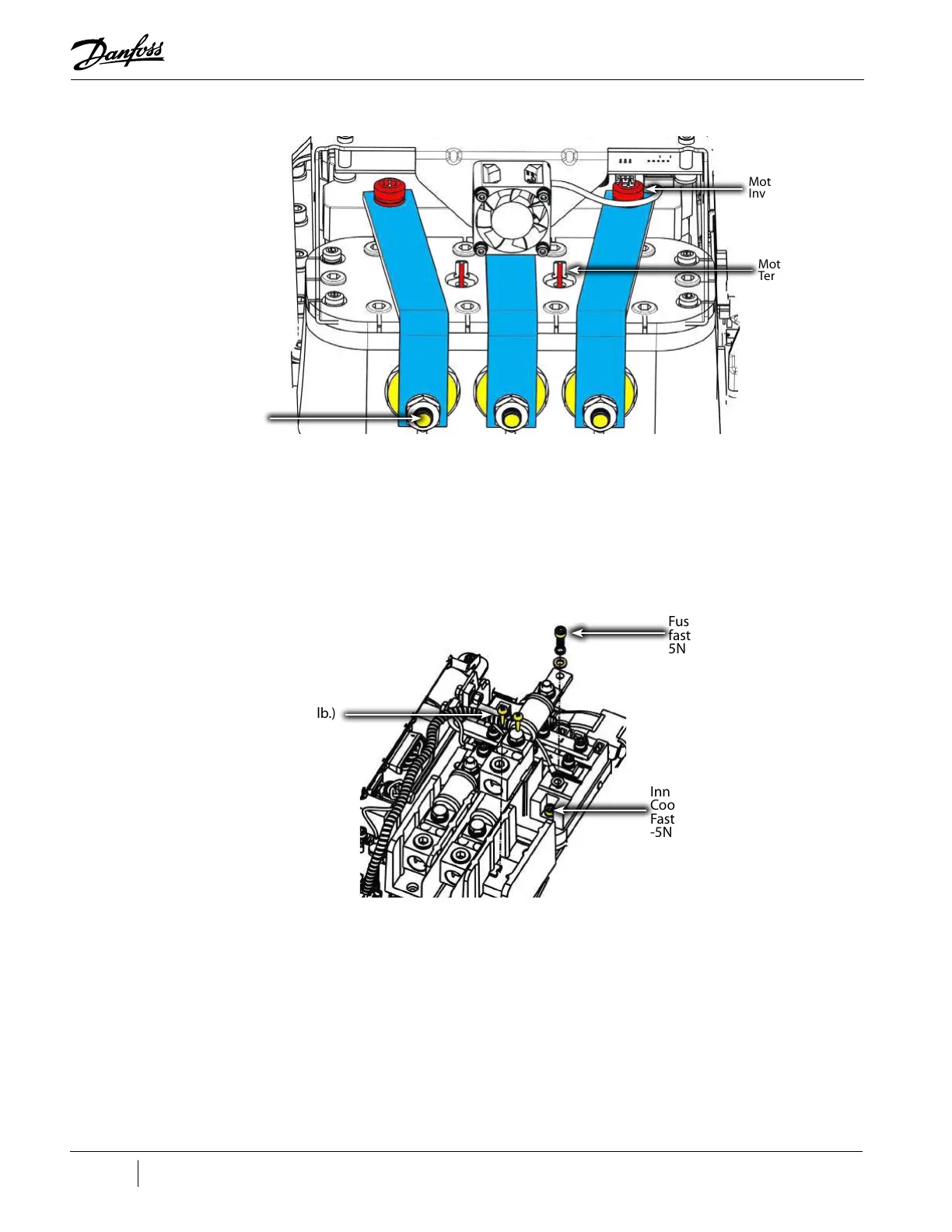

Figure 6-3 Motor Component Dielectric Grease Application
9. Dry off any condensate around the SCR fasteners.
10. For TTS300/TGS230 compressors, carefully inspect the inside SCR fastener. If any debris or
oxidation is found, remove the applicable fuse assembly. If debris or oxidation is present on all
three inside fasteners, then remove all three fuse assemblies. Refer to "4.14.2 Terminal Block
Fuse Removal and Installation" on page 106 and "Figure 6-4 Accessing Inside SCR to Cooling
Manifold Fastener (TTS & TGS Compressors only)".
Figure 6-4 Accessing Inside SCR to Cooling Manifold Fastener (TTS & TGS Compressors only)
11. Remove any debris or dust from the SCR fasteners.
High Power
Feedthrough
Motor Thermistor
Terminals
Motor Bus Bar to
Inverter Screw
Inner SCR to
Cooling Manifold
Fastener, M6x16
-5Nm (44 in.lb.)
Fuse to SCR
fastener, M6x16 -
5Nm (44 in.lb.)
Fuse Assembly to Terminal
Block fastener,
4Nm (35 in.lb.)
