Danfoss Turbocor TTS Series User Manual

114 of 282 M-SV-001-EN Rev. G

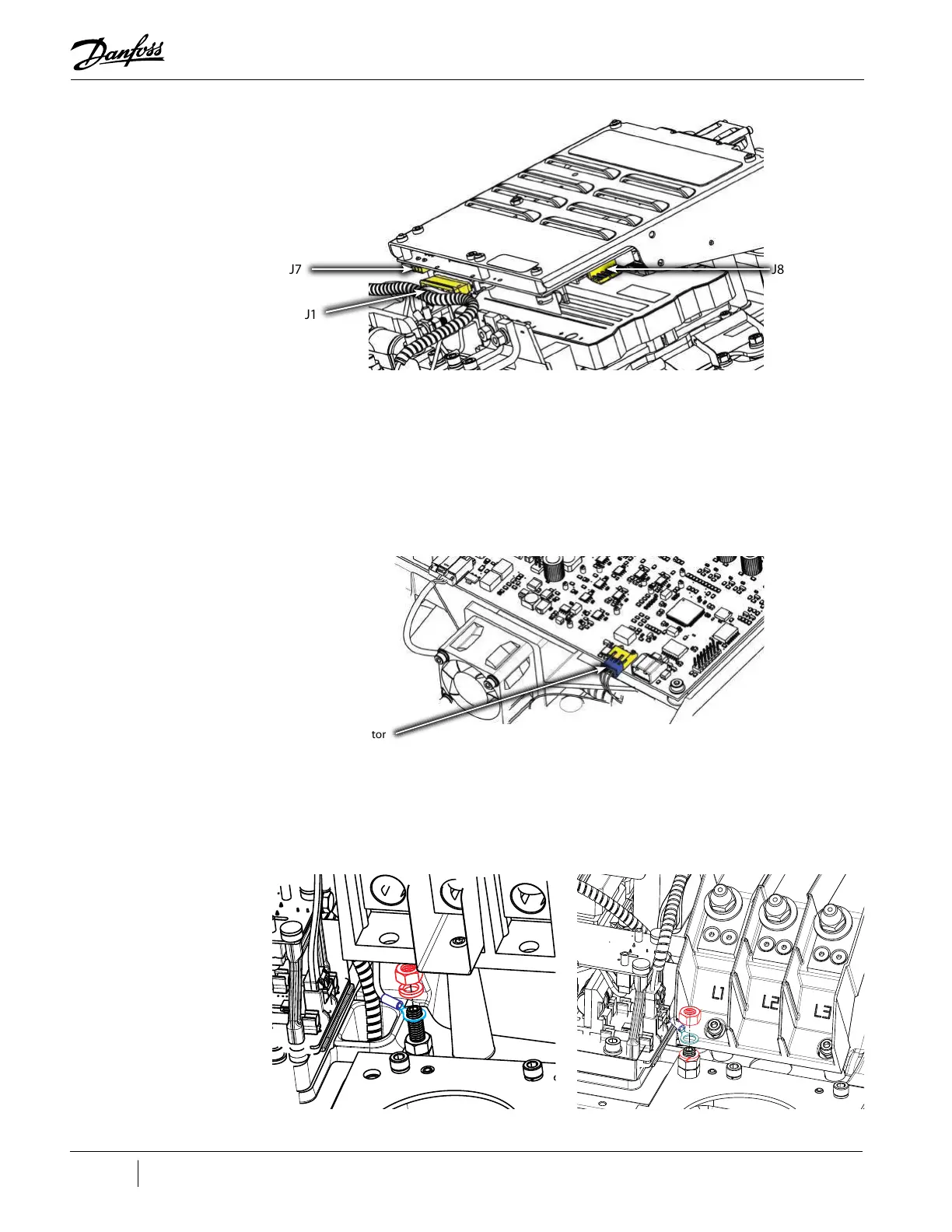

Figure 4-106 Closed-Top Soft Start Connector Removal
7. Remove the Soft Start assembly and place it in a safe location.
4.15.5 Soft Start Removal (Open-Top)
1. Isolate the compressor power as described in Section "1.8 Electrical Isolation" on page 19.
2. Remove the Soft Start Temperature Harness. Refer to "Figure 4-107 Open-Top Soft Start J7
Connector".
Figure 4-107 Open-Top Soft Start J7 Connector
3. Disconnect the Soft Start ground wire by removing the nut and mains input ground wire from
the ground post on the compressor housing at 3 phase connection point. Refer to "Figure
4-108 Ground Location").
Figure 4-108 Ground Location
J8J7
J1
J7 Connector
TTS300 Ground Stud Location
TTS350 Ground Stud Location
Isometric view
Scale: 1:1
