185 of 282
M-SV-001-EN Rev. G
5. Once the Inverter is in place, finger-tighten the Inverter fasteners in a diagonal pattern and
torque to 3 Nm (27 in.lb.) on the first pass, then to 7 Nm (62 in.lb.) on the second pass.
6. Clean the O-ring groove on top of the Inverter Cooling Manifold with a lint-free cloth.
7. Apply O-Lube to a new Inverter Heat Sink O-ring and place in the O-ring grove in the Inverter
Heat Sink Plate and install. Refer to "Figure 4-233 Inverter Heat Sink Plate O-ring Installation -
TTS/TGS (Except TTS300/TGS230)".

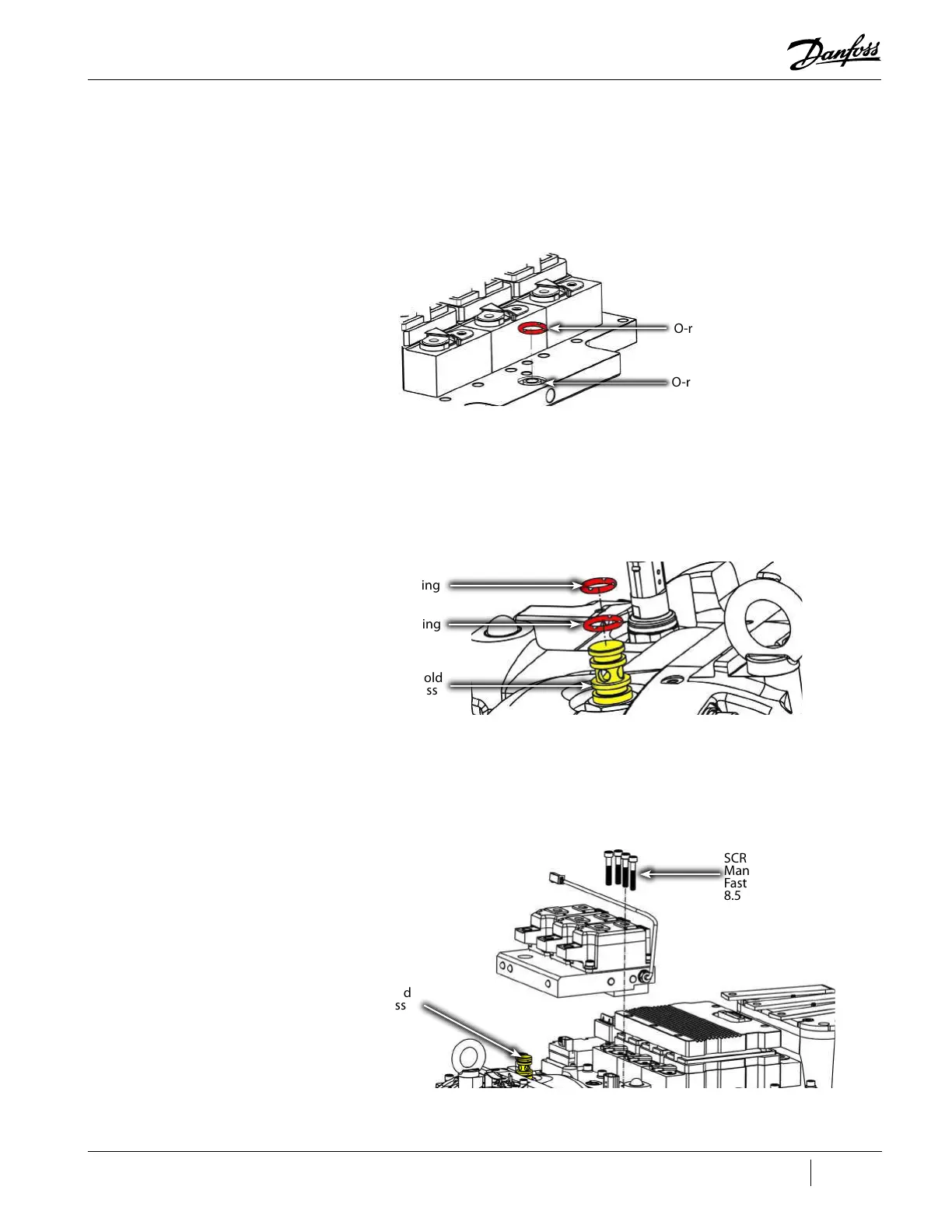

Figure 4-233 Inverter Heat Sink Plate O-ring Installation - TTS/TGS (Except TTS300/TGS230)
8. Clean the O-ring grooves in the SCR Manifold Return Brass Fitting with a lint-free cloth.
9. Install two (2) new O-rings on the SCR Manifold Return Brass Fitting (smaller one on top). Apply
O-lube to each O-ring before installation. Refer to "Figure 4-234 SCR Manifold Return Brass
Fitting O-ring Installation - TTS/TGS (Except TTS300/TGS230)".
Figure 4-234 SCR Manifold Return Brass Fitting O-ring Installation - TTS/TGS (Except TTS300/TGS230)
10. Carefully install the SCR cooling plate over the SCR Manifold Return Brass Fitting. Press down
firmly to ensure proper seating of the O-rings into the plate.
11. Install the four (4) M6x35 SCR Cooling Manifold fasteners and torque to 8.5 Nm (75 in. lb.).
Figure 4-235 SCR Cooling Plate Installation - TTS/TGS/TTH/TGH (Except TTS300/TGS230)
12. Leak test and evacuate the compressor in accordance with standard industry practices.
O-ring groove
O-ring
SCR Manifold
Return Brass
Fitting
Large O-ring
Small O-ring
SCR Manifold
Return Brass
Fitting
SCR Cooling
Manifold
Fastener, M6x35 -
8.5 Nm (75 in.lb.)
(4 places)
TTS350 Revision F Shown
