NOTE
A magnet may need to be placed on the motor cooling solenoids if evacuation cannot be performed directly to the liquid line.
11. Return the compressor to normal operation.
4.8.2 Interstage Pipe Torque Specifications
Table 4-12 Interstage Pipe Torque Specifications
Description Nm Ft.Lb. In.Lb.
Interstage Pipe Fastener, M10x40 32 24 283
Economizer Flange Fastener, M10x30 32 24 283
P/T Sensor 10 7 89
4.9 Compressor Housing End Cap
The Compressor Housing End Cap may be removed if it is damaged or if there is a refrigerant leak
between the mating surfaces.
There are no field-serviceable components inside of the Compressor Housing End Cap. After the
assembly of the compressor, its function is to prevent refrigerant from escaping. It also contains an
eyebolt to allow for installation and removal of the compressor.

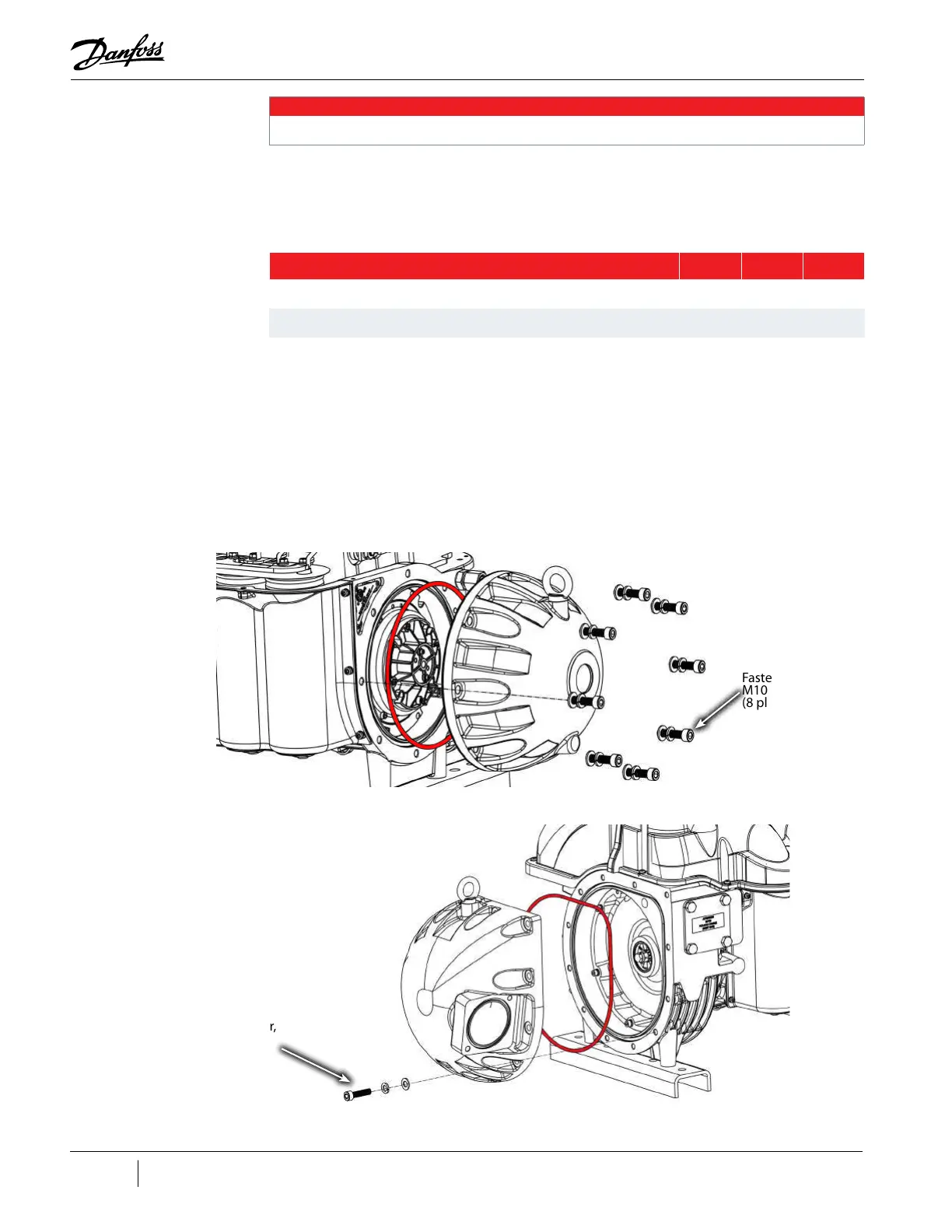

Figure 4-39 Compressor Housing End Cap - TTS/TGS
Figure 4-40 Compressor Housing End Cap - TTH/TGH
Compressor
Housing End Cap
Fastener,
M10x40
(8 places)
Compressor Housing
End Cap Fastener,
M10x40
(12 places)
