124 of 282 M-SV-001-EN Rev. G

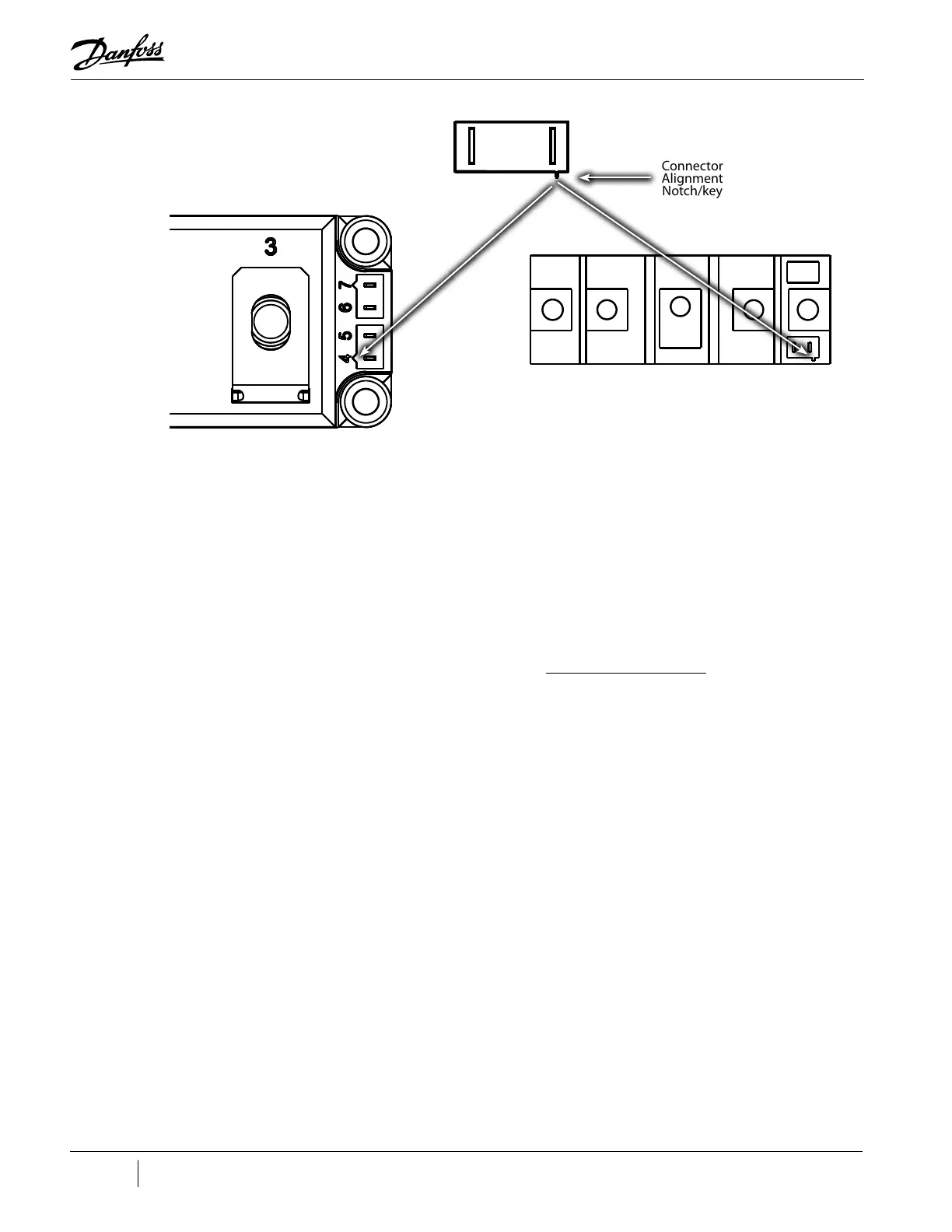

Figure 4-128 SCR Gate Connector Alignment
4. Install the top covers. Refer to "4.2 Compressor Covers" on page 56.
5. Return the compressor to normal operation.
4.18 Soft Start AC/DC Harness
The Soft Start AC/DC Cable Harness provides the Mains AC voltage phases and DC Bus voltage to the
Soft Start, and passes the DC Bus and 15 VAC to the DC-DC. There are different styles Soft Start AC/DC
Harnesses. The installed harness will vary depending on the style of DC-DC, Soft Start, and compressor
model and revision.
The following steps provide detail on how to replace the Soft Start AC/DC Harness. It is not possible to
illustrate all of the harness variations, but the major differences that impact removal and installation
are described in this manual. Please refer to the Spare Parts Selection Guide for illustrations of the
various Soft Start AC/DC Harnesses.
Prior to removal, note the location of the harness routing as this will minimize the installation time of
the new harness.
Connector
Alignment
Notch/key
To Next Page
