Danfoss Turbocor TTS Series User Manual

159 of 282
M-SV-001-EN Rev. G

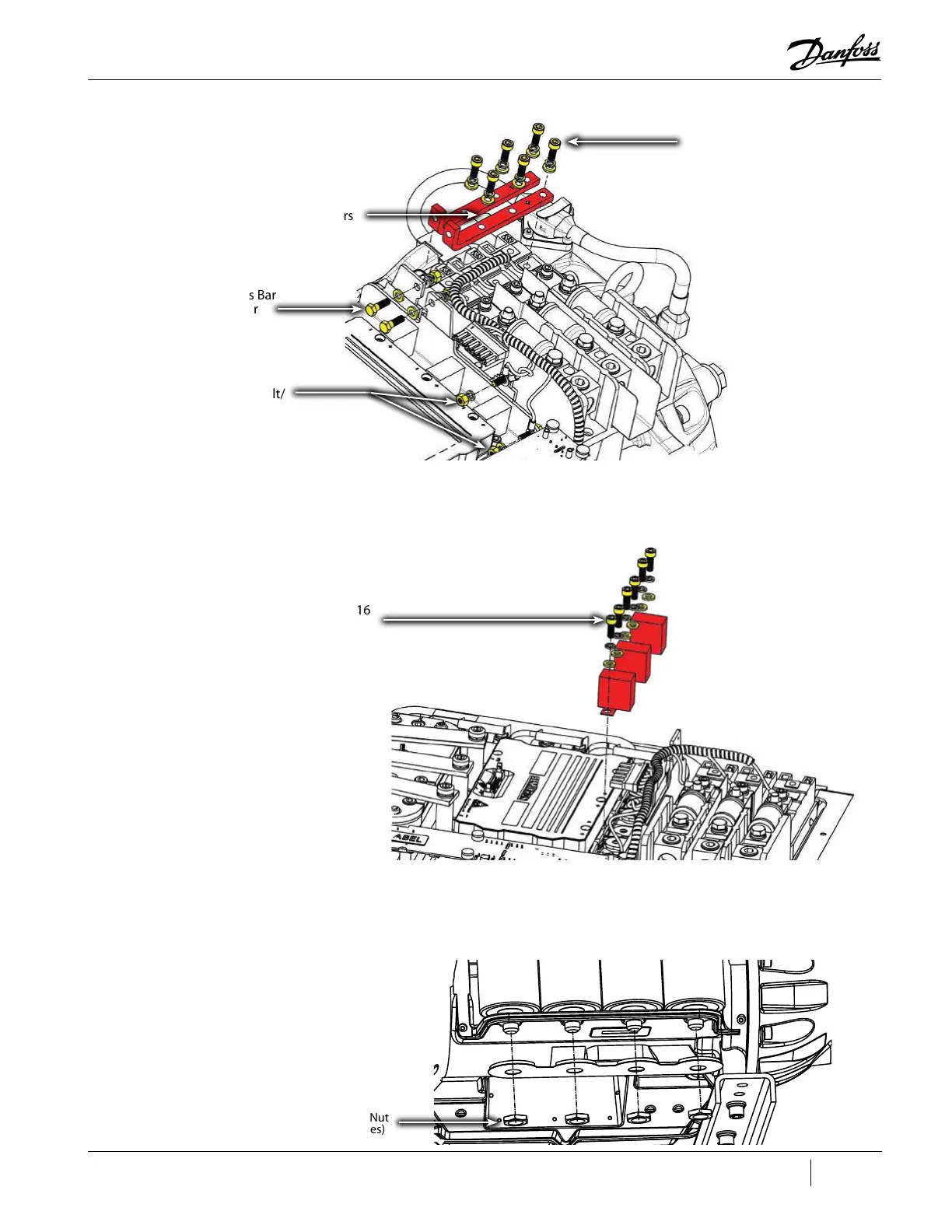

Figure 4-182 DC Bus Bar and Soft Start Harness Removal - TTS300/TGS230
3. Disconnect the snubber capacitors from the Inverter noting the leg orientation of one leg is
longer than the other. Refer to "Figure 4-183 Snubber Capacitor Removal - TTS300/TGS230".
Figure 4-183 Snubber Capacitor Removal - TTS300/TGS230
4. Remove the nylon nuts at the base of the DC Capacitor Bus Bar Assembly, under the main
compressor housing. Refer to "Figure 4-184 Capacitor Nut Removal - TTS300/TGS230".
Figure 4-184 Capacitor Nut Removal - TTS300/TGS230
Soft Start DC+ &
DC- to DC Bus Bolt/
Nut, M6
SCR DC Bus Bars
SCR DC Bus Bar
Fastener, M6x16
(6 places)
DC Capacitor Bus Bar
to SCR DC Bus Bar
Bolt/Nut, M6
Snubber
Capacitor
Fastener, M6x16
(2 places per
Capacitor)
Nylon Nut
(4 places)
