196 of 282 M-SV-001-EN Rev. G
5. Disconnect the two (2) connectors from thermistor sensor feedthrough. Refer to "Figure 4-249
Motor Cover Plate Removal".

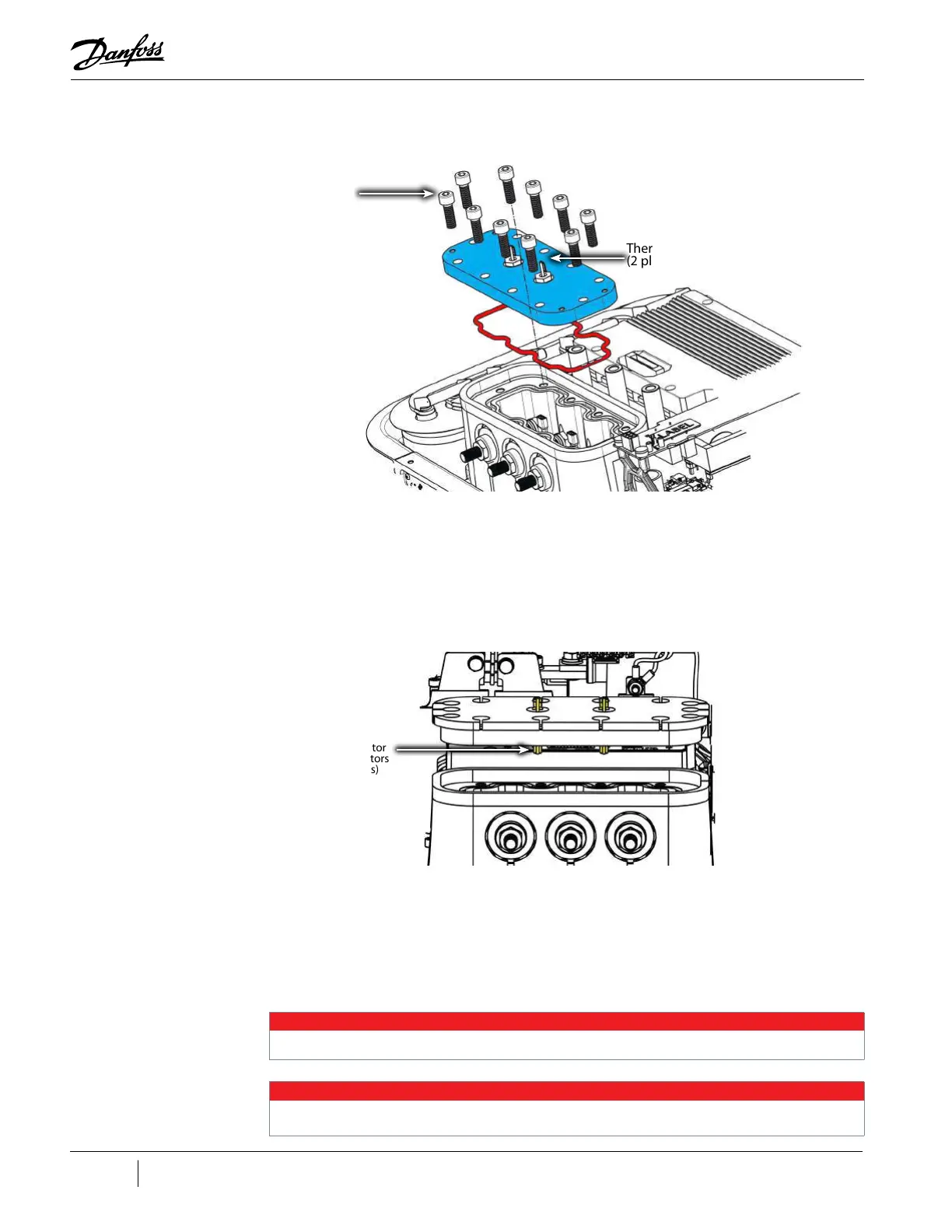

Figure 4-249 Motor Cover Plate Removal
6. Remove the 10 M8x25 fasteners that secure the Cover Plate to the Main housing. Refer to
"Figure 4-249 Motor Cover Plate Removal".
7. Cut the insulation, if necessary, in order to remove the Cover Plate.
8. Lift the Cover Plate slightly to prevent breaking the connections and carefully unplug the lower
thermistor connectors. Refer to "Figure 4-250 Thermistor Connector Removal".
Figure 4-250 Thermistor Connector Removal
9. Remove and discard the O-ring from the compressor housing.
4.24.5.6 Motor Cover Plate Installation
1. Clean the mating surfaces with a lint-free cloth. Inspect the sealing area for any damage.
2. Lubricate and install the preformed O-ring into the groove located in the Main housing.
3. Install the wires on the inner thermistor terminals while holding the Cover Plate. Refer to
"Figure 4-250 Thermistor Connector Removal" on page 196.
NOTE
Polarity of the thermistor wires is not required.
• • • CAUTION • • •
Care must be taken while plugging in the thermistor sensor connectors. Ensure no damage occurs to the mounted O-ring during
this action. The O-ring must be replaced if any damage occurs.
Cover Plate
Fastener, M8x25
(10 places)
Thermistor connectors
(2 places)
Lower
Thermistor
Connectors
(2 places)
To Next Page
