Danfoss Turbocor TTS Series

161 of 282
M-SV-001-EN Rev. G

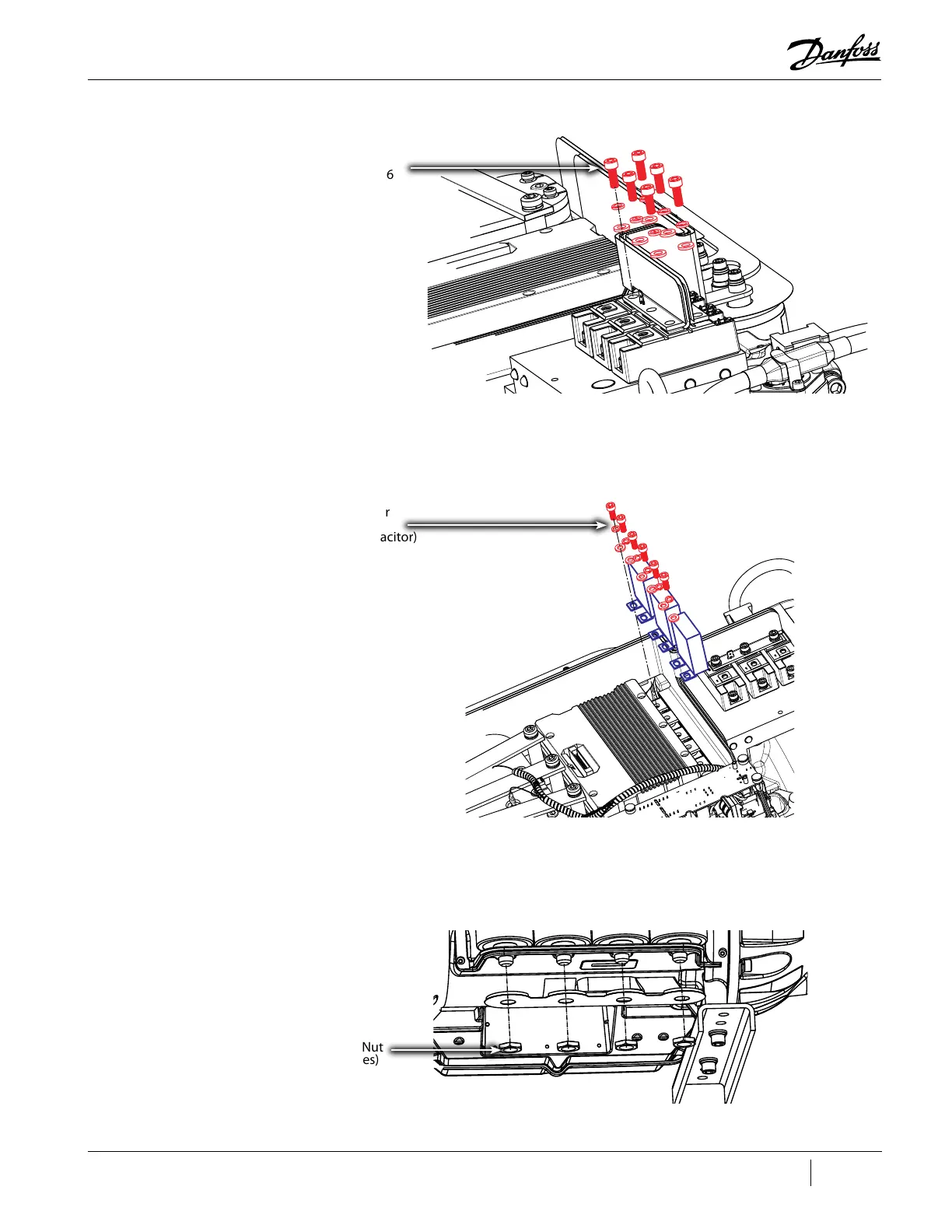

Figure 4-187 SCR Bus Bar Removal - TTS/TGS/TTH/TGH Rev. H (Except TTS300/TGS230)
8. Disconnect the snubber capacitors from the Inverter noting the leg orientation of one leg is
longer than the other. Refer to "Figure 4-188 Snubber Capacitor Removal - TTS/TGS/TTH/TGH
(Except TTS300/TGS230)".
Figure 4-188 Snubber Capacitor Removal - TTS/TGS/TTH/TGH (Except TTS300/TGS230)
9. Remove the nylon nuts at the base of the DC Capacitor Bus Bar Assembly, under the main
compressor housing. Refer to "Figure 4-189 Capacitor Nut Removal - TTS/TGS/TTH/TGH (Except
TTS300/TGS230)".
Figure 4-189 Capacitor Nut Removal - TTS/TGS/TTH/TGH (Except TTS300/TGS230)
Capacitor DC
Bus Bar to SCR
Fastener, M6x16
(6 places)
Snubber Capacitor
Fastener, M6x16
(2 places per Capacitor)
TTS350 Revision F Shown
Nylon Nut
(4 places)
