DEVICE SETTINGS | CAMERA #N | SERIAL PORT
PRODUCT REFERENCE GUIDE
207
Stop Bits
Select 1 or 2 from the drop-down list. Stop Bits is a parameter indicating the number of stop
bits in the data packet of the communication protocol frame.
Serial Communication Type
Select RS422 Full Duplex or RS232 from the drop-down list.
3. When you have finished making changes, click Update to save or click Reset to
revert to the previously saved values.

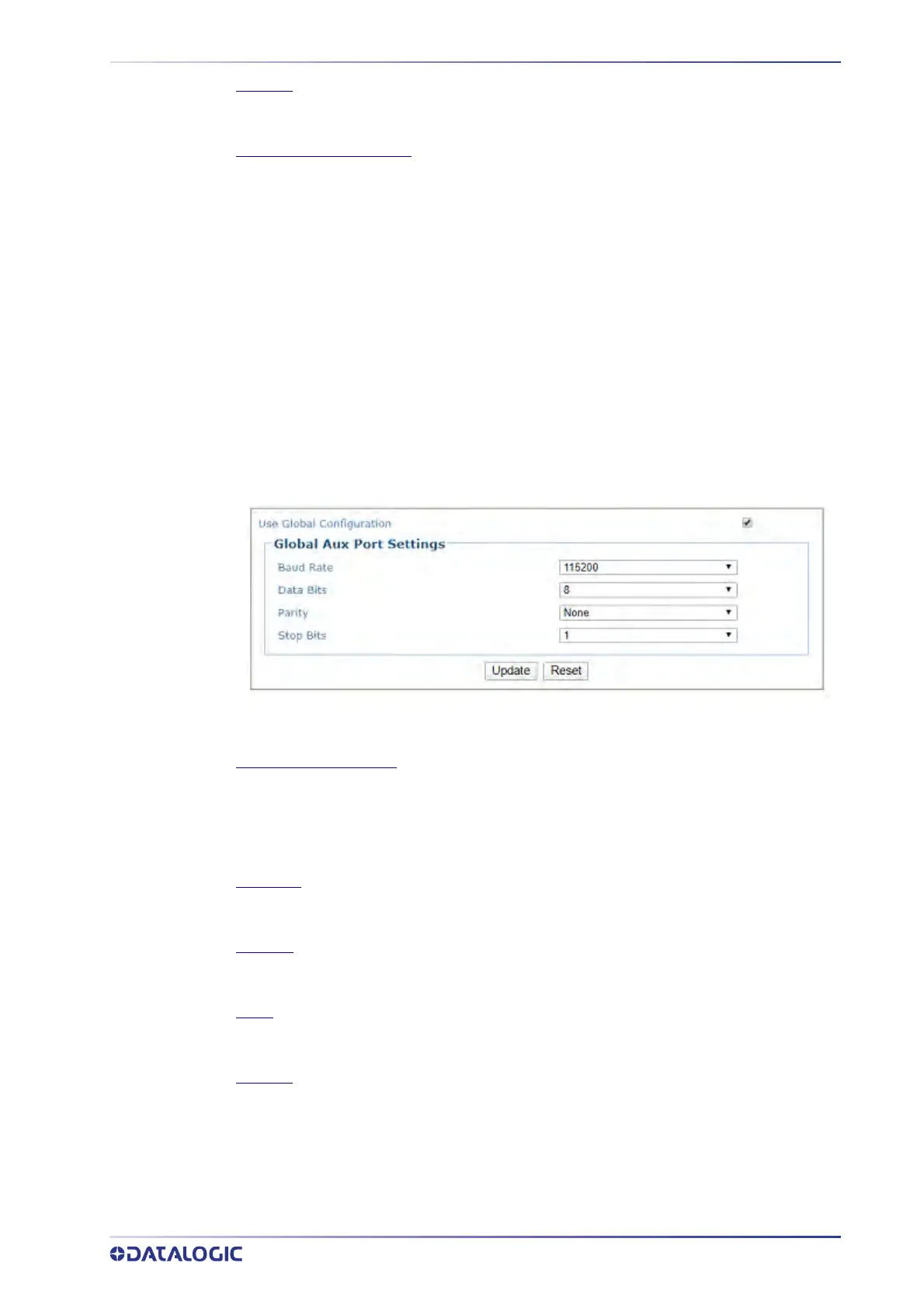

Aux Port Settings
Use the Aux Port window to configure communication between the camera and an Aux-
iliary Port device. This port is only used to match the device’s communication configura-
tion.
To edit the Aux Port settings:
1. In the menu tree under Modify Settings, n
avi
gate to Modify Settings | Device
Settings | Camera N | Focus | Aux Port Settings. The Focus | Aux Port Settings
window opens.
2. Enter the appropriate information in the form as described below:
Use Global Configuration
Select the check box when using a serial focus device for one or more cameras. When the Use
Global Configuration is selected all camera's in the array can identify the Serial message from
the Host/Focus input.
When it is not selected the menu will give the option of selecting a single AV500/AV900 in the
array.
Baud Rate
Select a value from 1200 to 115200 from the drop-down list. Baud Rate is the transmission
speed in a communication line.
Data Bits
Select 7 or 8 from the drop-down list. Data Bits is a parameter indicating the number of bits
composing the data packet of the communication protocol frame.
Parity
Select None, Odd, or Even from the drop-down list. Parity is a parameter indicating the
presence of a control bit in the communication protocol frame.
Stop Bits
Select 1 or 2 from the drop-down list. Stop Bits is a parameter indicating the number of stop
bits in the data packet of the communication protocol frame.
3. When you have finished making changes, click Update to save or click Reset to
revert to the previously saved values.
