AV500/AV900 2D CAMERA
Diagnostics | Message Placing Wizard

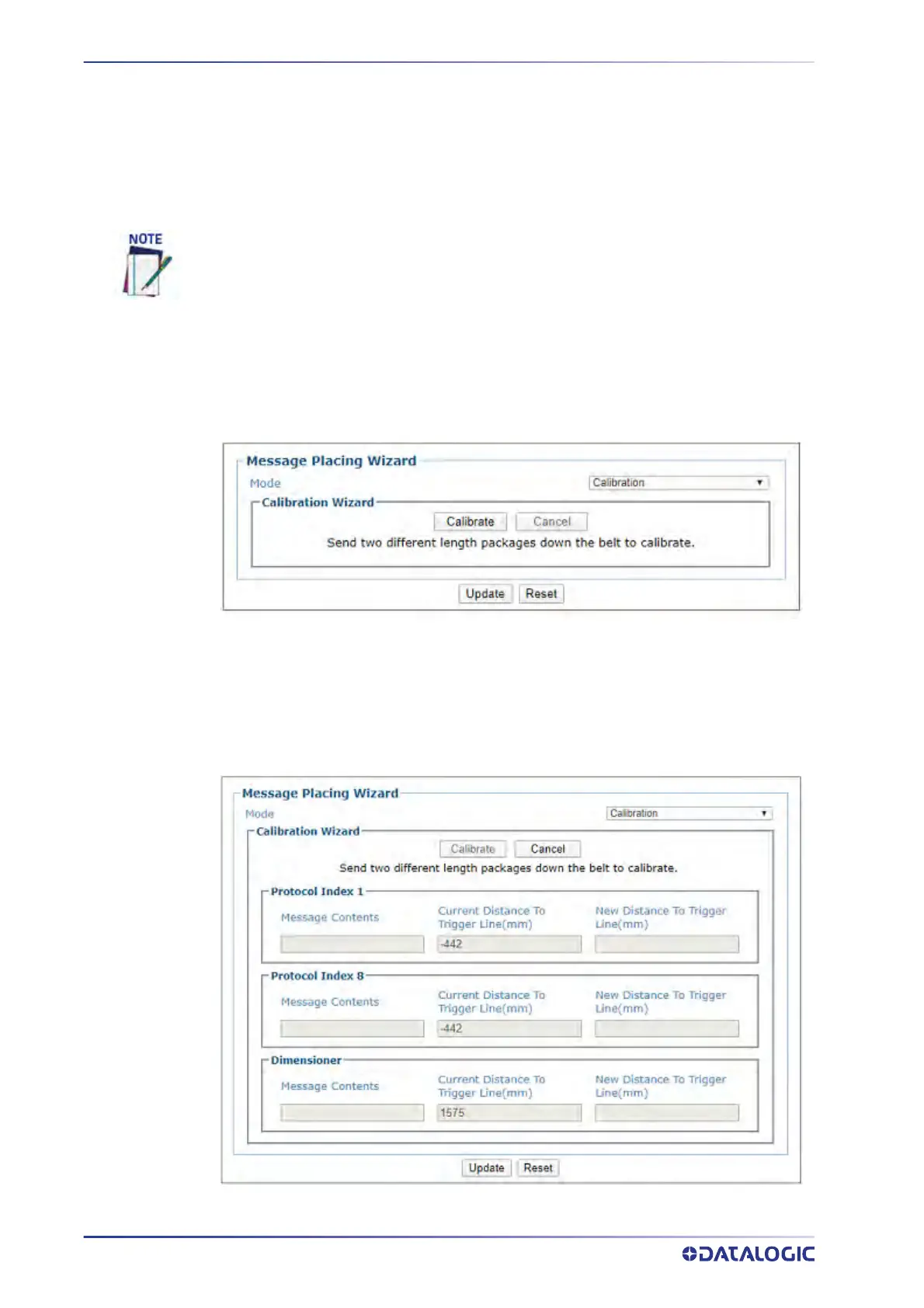

Use the Message Placing Wizard to help place incoming messages (either Protocol
Index or Dimensioner messages) onto a package. There are two different modes:
• “Calibration” on page 254
• “Verification Wizard” on page 256
To access the Message Placing Wizard:
1. In the menu tree under Diagnostic
s, click Message Placing Wizard and the follow-
ing window opens.
Calibration
The Calibration option allows you to easily find the distance to trigger line value without
any calculations. The reference edge and the distance to trigger line state (not for
Dimensioner messages) are also found.
A DM3610 must be setup via the Operating Mode and you must enable Protocol Indexes
and/or Dimensioner results. Only enabled messages will show up on the Message Plac-
ing Wizard. Also, adjust Device > Logging to Verbose Mode Enabled, and Turn on Proto-
col Index.
