Mounting and Positioning
The AV500/AV900 system components and in particular the mounting bracket have
been designed for installation onto standard Bosch and 80/20 frame profiles (extruded
aluminum) and accessories. 60x60 mm profile is recommended for Bosch, although
45x45 mm profiles will work; and standard 1.5” x 3” for 80/20.

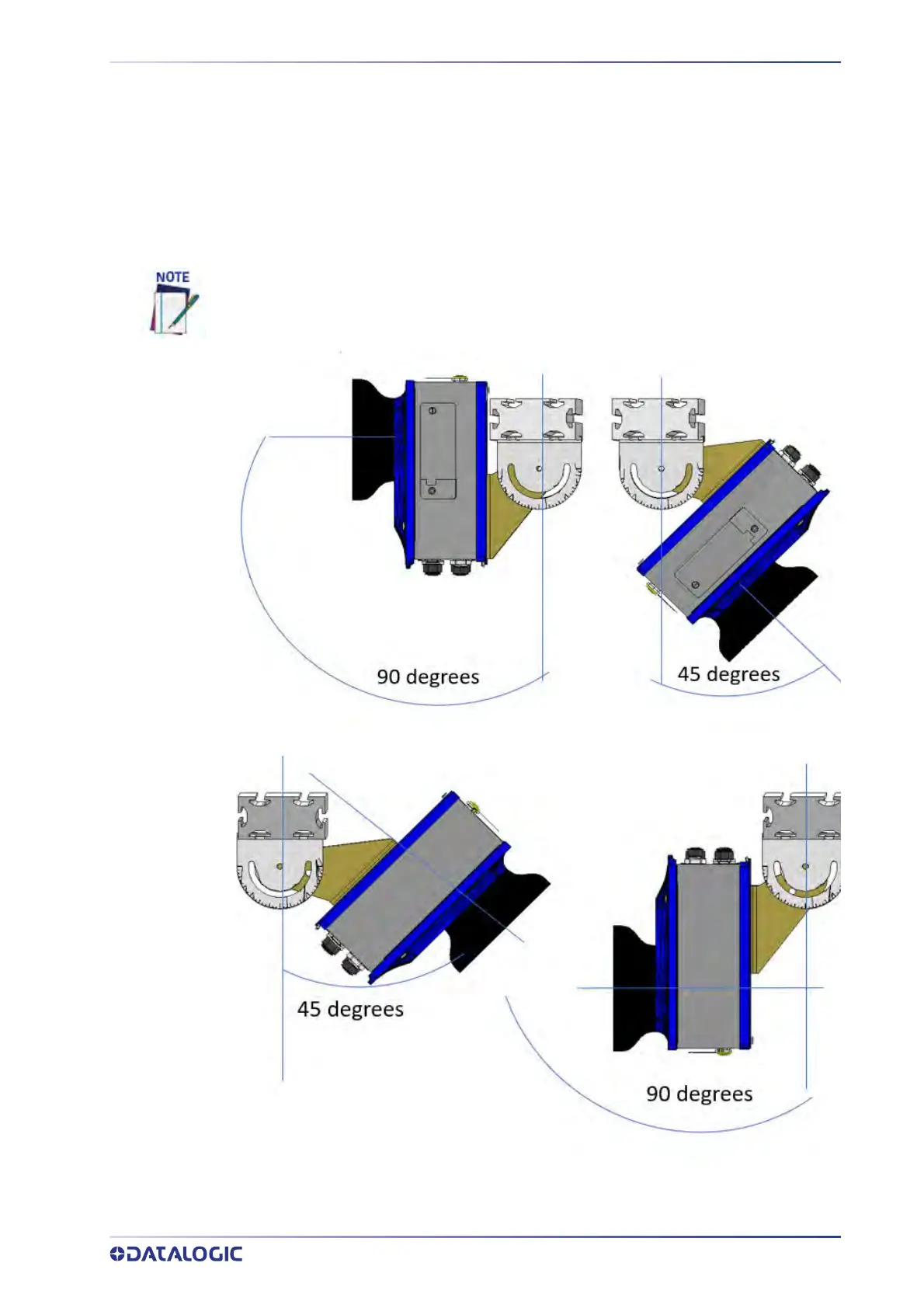

The following illustrations show the various typical moun
ting positions for the AV500/
AV900.
It is important when mounting the camera that the connector panel is facing away from
the conveyor so that the wiring does not interfere with product flow.
