MECHANICAL INSTALLATION
40
AV500/AV900 2D CAMERA

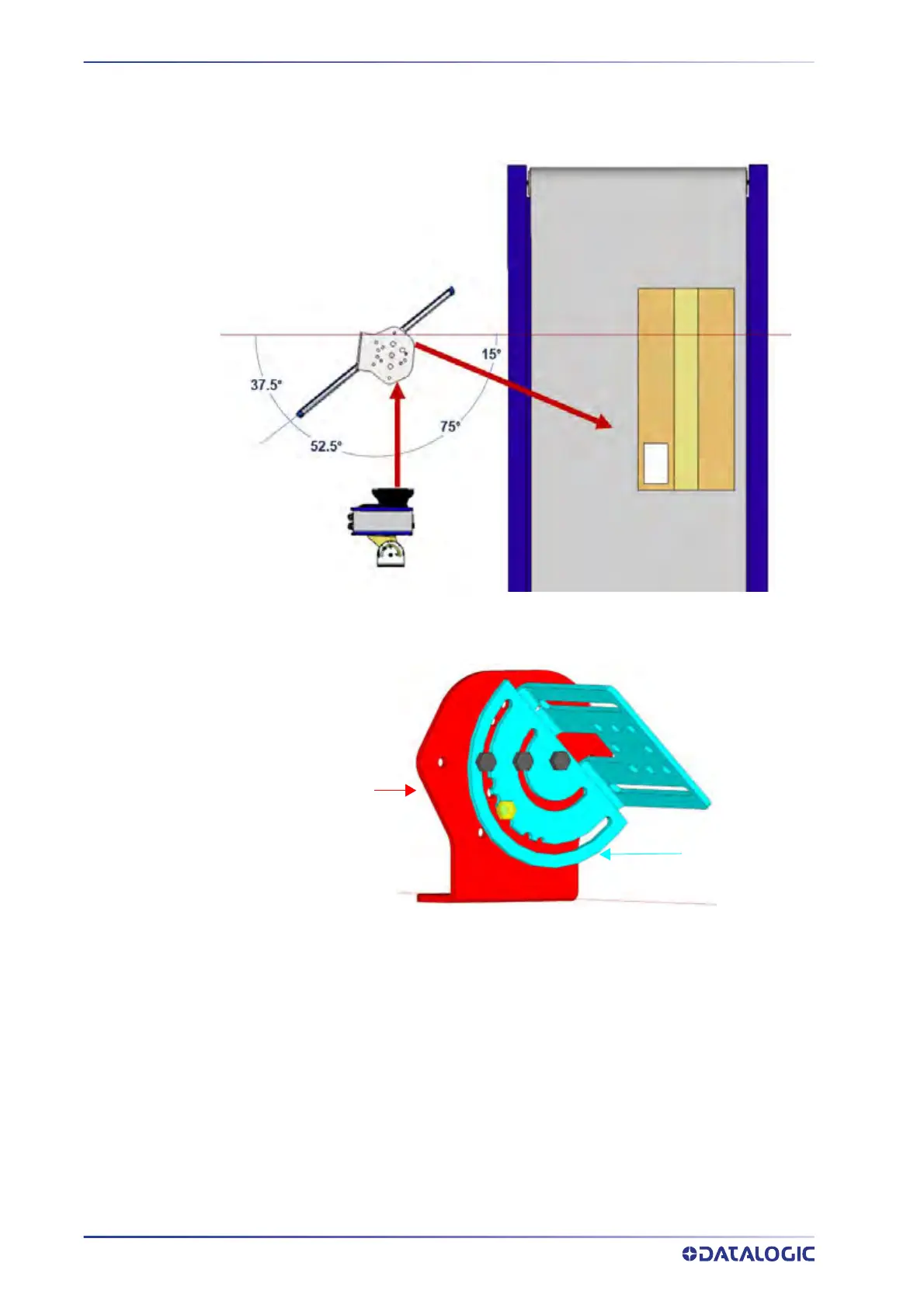

Left Front and Right Front (15 degrees)
From the parallel position, rotate the mirror 37.5 degrees as shown.
Supporting bracket
Rising bracket
Aligning the AV500/AV900 with Deflection Mirrors
When using deflection mirrors with the AV500/AV900 reader, which is typical, the mir-
rors must be mounted parallel to the reader and at the correct distance to allow for
proper f
ocus and the highest read rate. Reference the system’s application drawing for
distances.
