Verify Tachometer Operation
1. Rotate the tachometer wheel slowly.
2. The TACH LED on c
amera’s connector panel should flash indicating the tachometer
is operational.
Replacing the Fan
The fan of the AV500/AV900 is a field replaceable part. Request spare part number:
8900006713. Instructions are included.
Replacing the SD Card
If you are replacing a non-working AV500/AV900 in your array, remove the SD card from
a non-working AV500/AV900 and insert into the new unit. Follow these steps:
Tools Required
2.5 mm T Hex Wrench
1

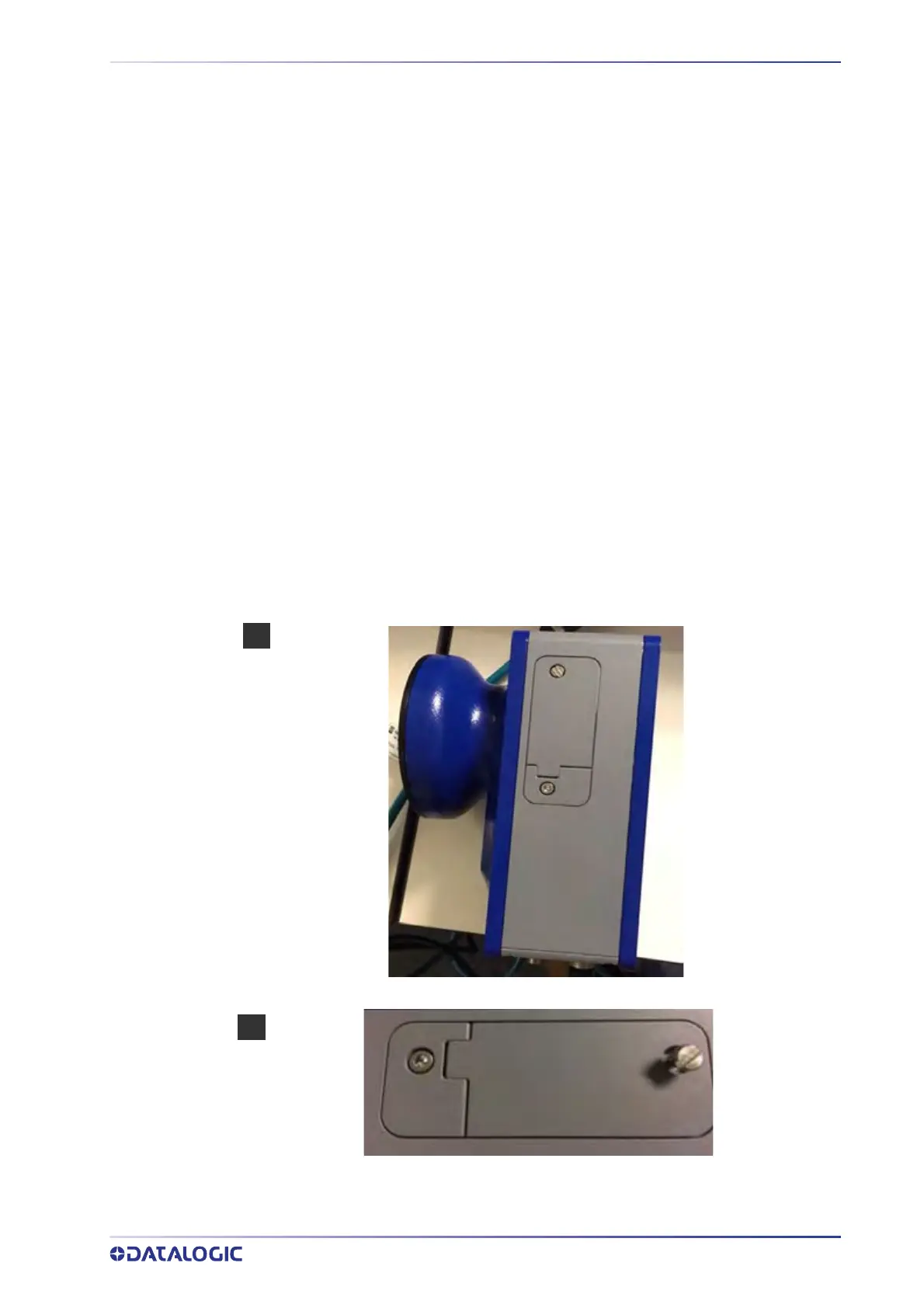

The SD Card is
accessible via a
hinged door on
the left side of
the camera.
2
Remove the
single two 3
mm hex
screw from
the access
plate of the
camera.
