MECHANICAL INSTALLATION
38
AV500/AV900 2D CAMERA

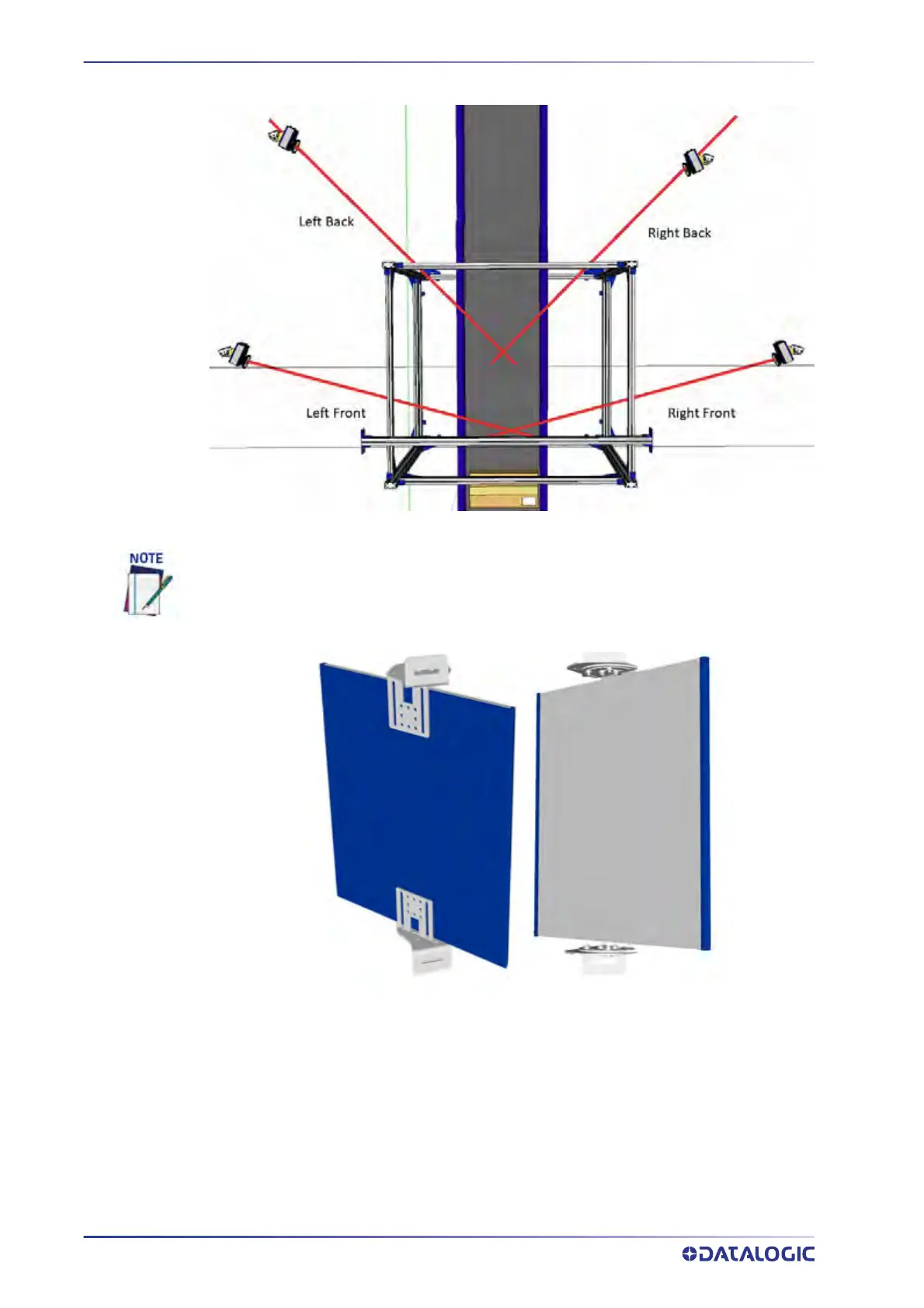

Deflection Mirror Bracket Angles
Standard deflection mirror bracket angles are show below. The bolt indicates the locking
position between the Main Bracket (blue) and the Rising Bracket (red). The angles spec-
ified are reflective angles not the physical angle of the bracket or mirror.
For all of the following mounting examples, the positioning distances are not given
since they will depend upon the application specific diagrams. Refer to your application
specific diagrams for more information.
