MOUNTING
PRODUCT REFERENCE GUIDE
35

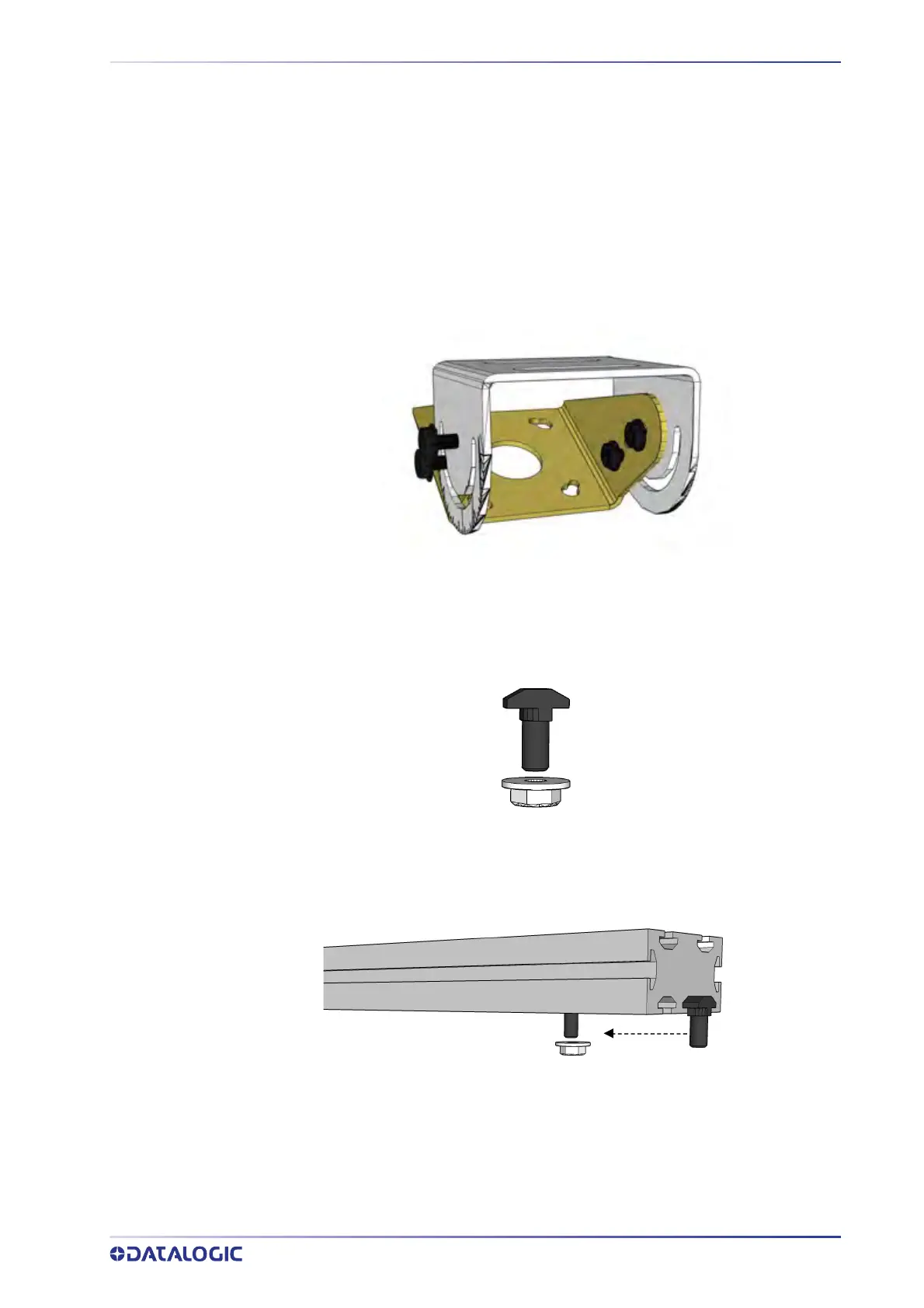

Mounting Sequence:
1. The AV500/AV900 mounting bracket has two parts and comes assembled. It is
packaged with your camera.
Bracket
Bracket
4 M5x12
Button Head
Cap Screws
2. In your mounting kit are the required number of T-bolts and nuts used to
attached the mounting bracket to the station frame.
3. Determine where your AV500/AV900 will go on the structure (according to the
measurements specified in your customer specific mounting diagram.) Slide the T-
bolts into place.
