TRIGGER AND FOCUSING DEVICE WIRING
PRODUCT REFERENCE GUIDE
65
CBX100
Please verify that the CBX100 connection box is configured for the AV500/AV900 appli-
cation as follows:

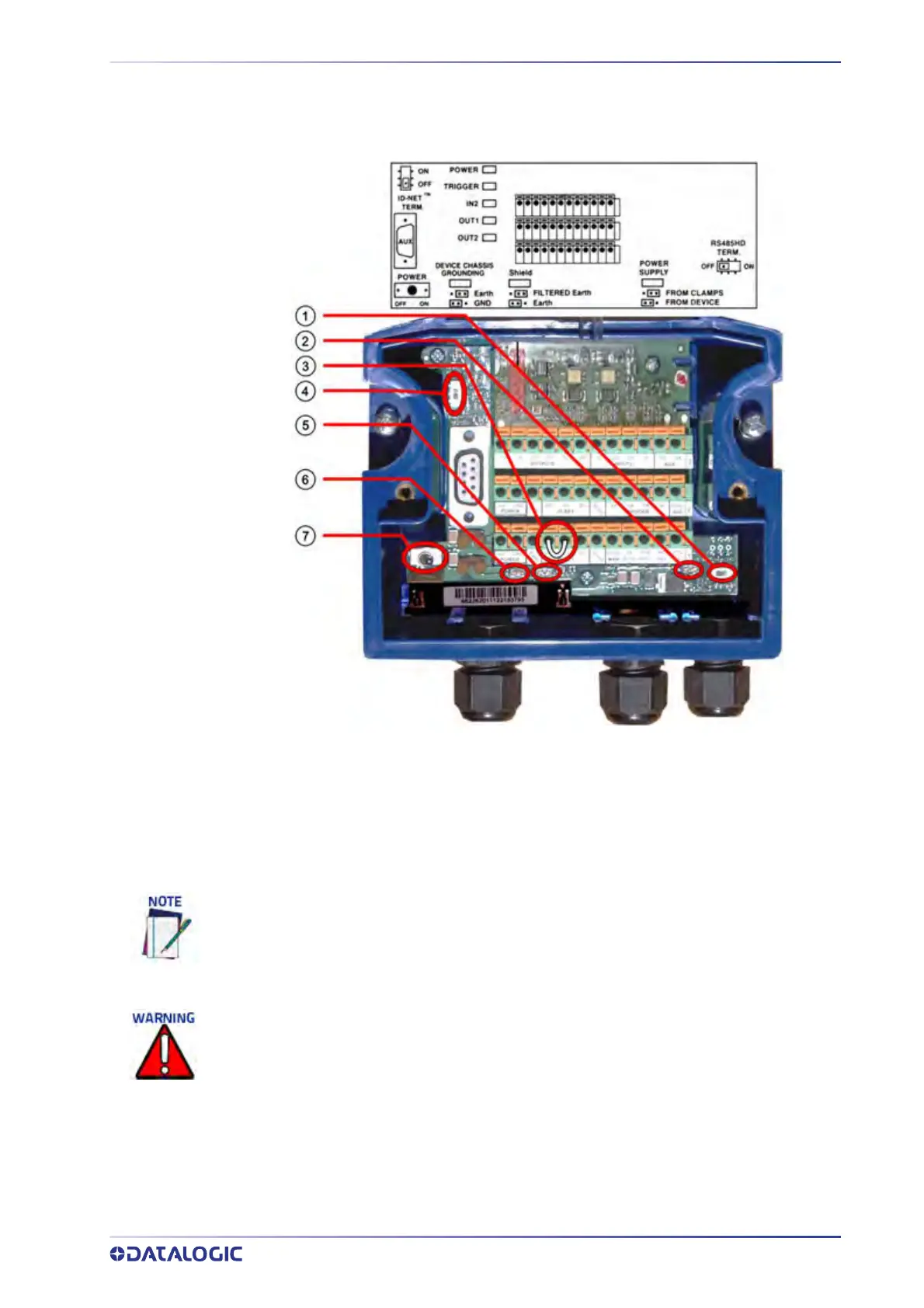

Reference the image and diagram above:
1. Set RS422HD TERM switch to OFF.
2. Set POWER SUPPLY jumper to FROM DEVICE.
3. Insert jumper wire in pin block from REF to ID+ (one jumper in either block is suffi-
cient).
4. Set ID-NET TERM switch to OFF.
5. Set Shield jumper to FILTERED Earth.
6. Set DEVICE CHASSIS GROUNDING to Earth.
7. Set POWER Switch to ON.
In order for a standalone or Master AV500/AV900 to initialize properly, it must be connected
to a CBX100. On power-up the AV500/AV900 looks for the jumper (item number 3 in the
image above) and will assume the responsibility of the provided SYNC Network IP
addresses. Slave units in an array/tunnel will receive their SYNC Network IP addresses
from the Master.
Although multiple AV500/AV900 cameras can have a CBX box, only one of the CBX boxes in a
multi-camera system can have the jumper to make it the Master.
