AV500/AV900 2D CAMERA
TRIGGER AND FOCUSING DEVICE WIRING
An external device can be used to measure the position of parcels as they enter the
Field of view of the AV500/AV900 Camera. This information is used by the camera to
determine the correct position for optimal focusing. The Datalogic focusing devices may
be one of the following:
•AS1
• DK503 - S-85 Position Sensor Kit
• LCC 75XX Light Curtain
• DM3610 Dimensioner
ASI

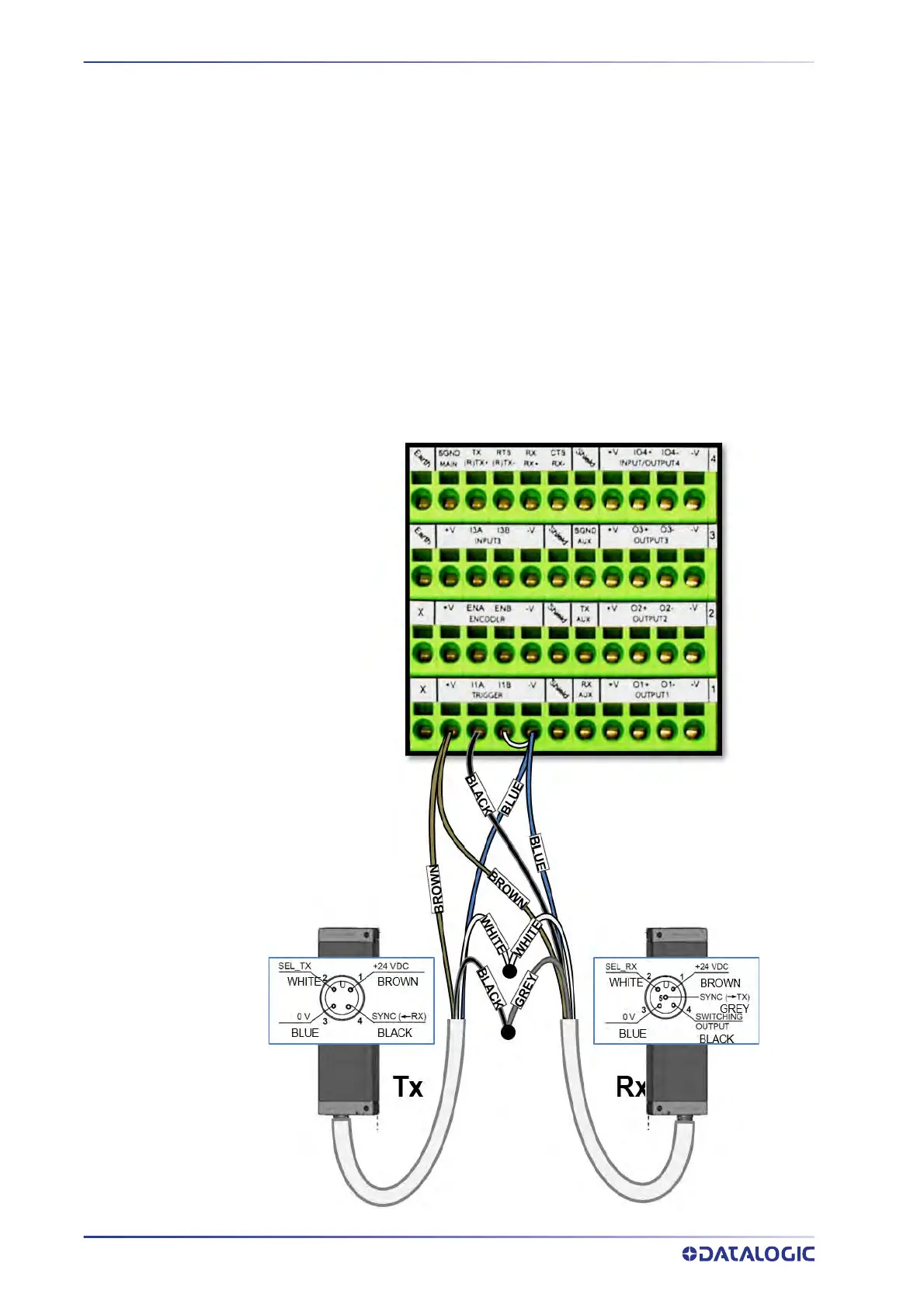

When using an AS1 for focusing, the AS1 must be wired to the CBX510 connected to the
AV500/AV900 using a flying lead to M12 cable (FOCUS CONTROL 5MT CABLE (M12-FREE
WIRES) 93A201203.)
