Diagnostics | Xpress Buttons

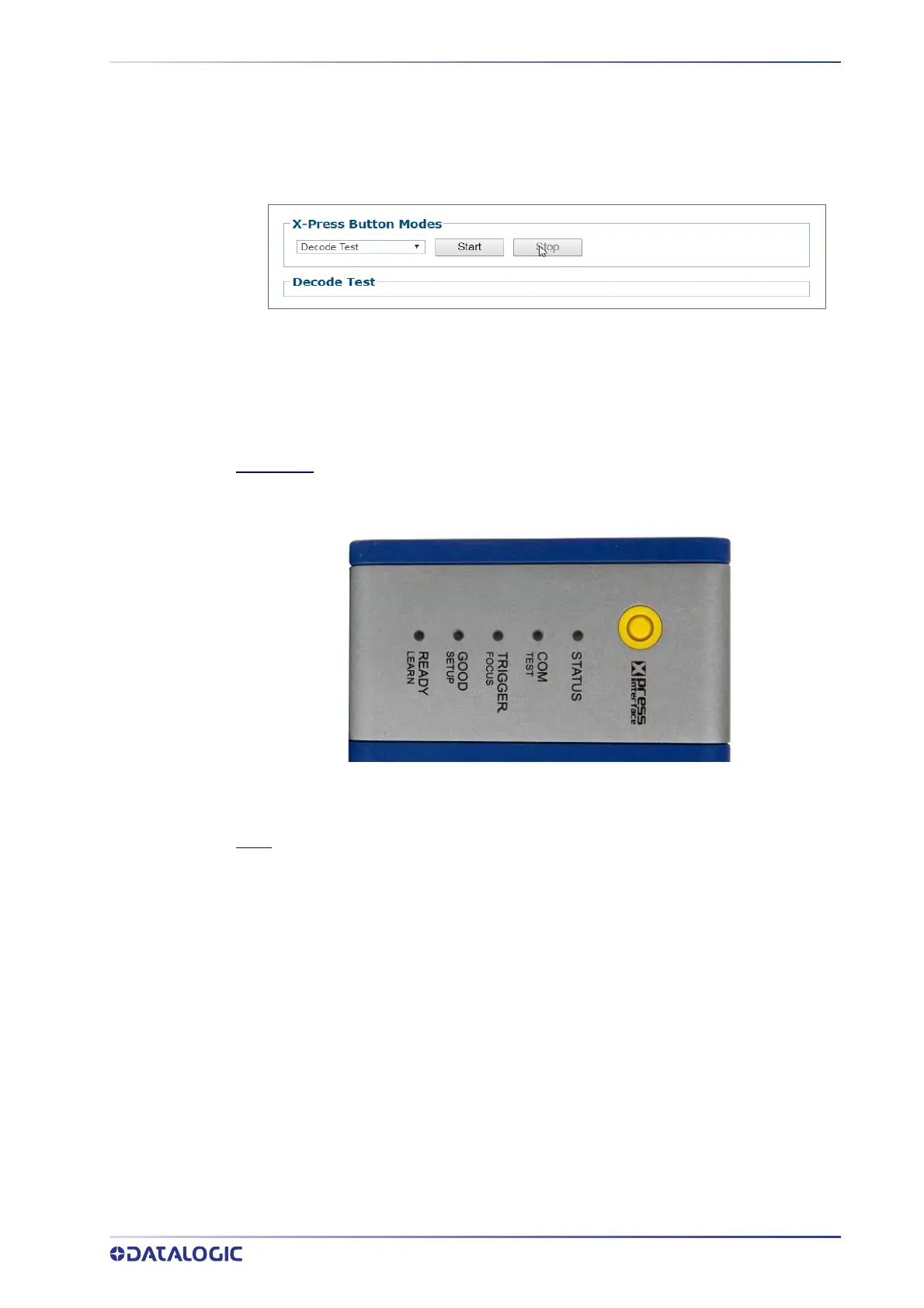

Use the Xpress Buttons window to setup Xpress buttons functions within your system.
To access the Xpress Buttons window:
1. In the menu tree under Diagnostics, click X
-Press Buttons.
2. Select one of the following from the drop-down:
•Decode Test
•Focus
•Setup
•AutoLearn
Decode Test
Once entered, the Bar Graph on the five LEDs is activated and if the camera starts reading
codes the Bar-Graph shows the Good Read Rate. The Bar Graph has the following meaning:
In case of a NO READ, only the Status LED is on and it is blinking. Test Mode will timeout in 4.5
minutes after the last barcode is decoded and revert back to Operating Mode.
Focus
This function causes the camera to automatically learn the fixed focus distance and sensitivity.
The Focus LED blinks to indicate this state. To exit the Focus/Locate Mode, press the X-PRESS
button once. The focus procedure is as follows:
1. Place a package with barcode at the desired fixed focus distance in the center of
the camera’s view.
2. Enter the focus function. The Focus LED will blink.
3. Wait until the Focus LED is steady. This indicate
s the camera has determined the
fixed focus distance and sensitivity.
4. To commit the settings and exit, press the XPress button once.
5. This procedure ends when the values are
com
mitted or after a timeout of 60 sec-
onds. If it times out the data is not saved.
