SETTING UP THE DM3610 DIMENSIONER
PRODUCT REFERENCE GUIDE 281

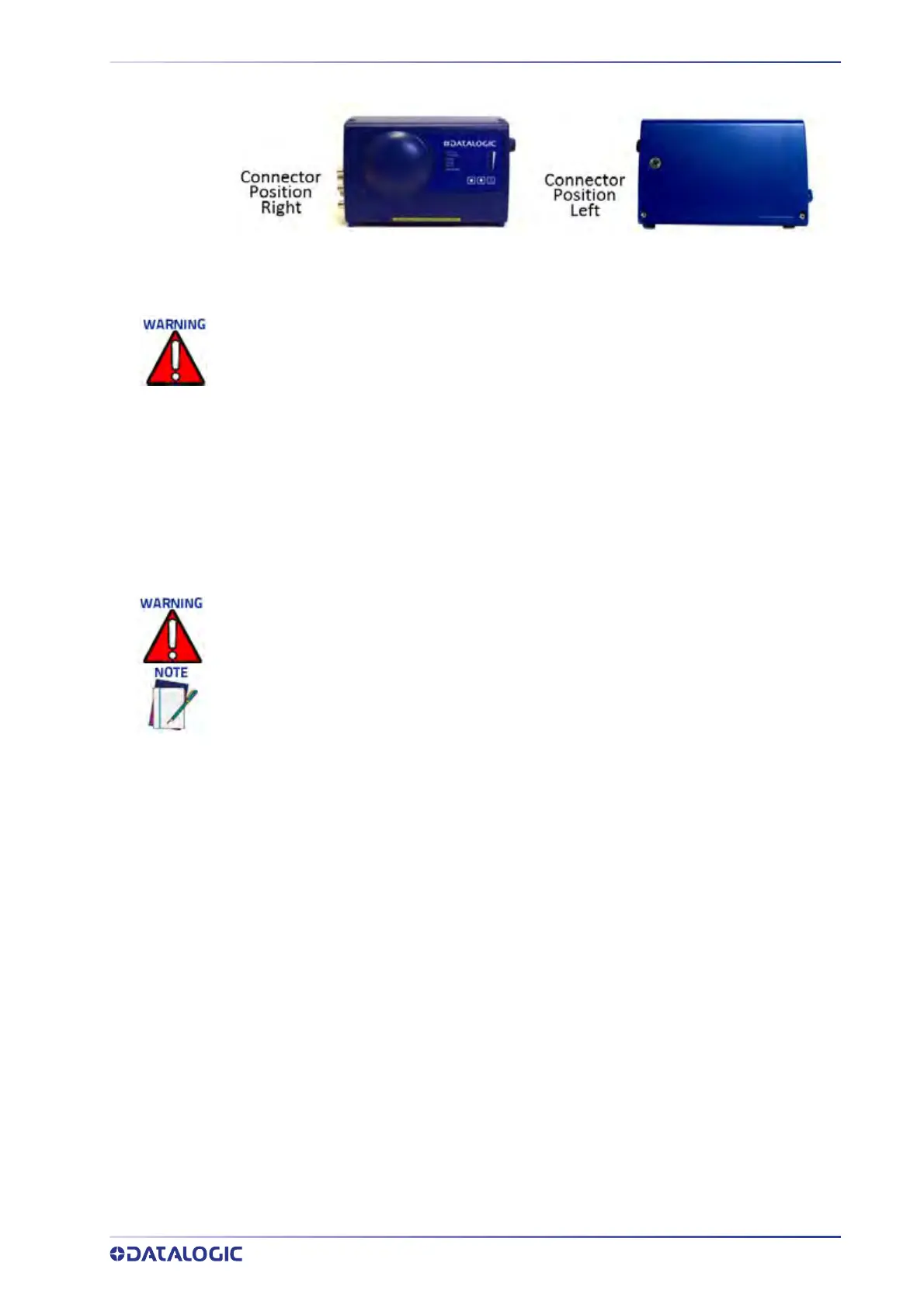

5. From the Connector Position drop-down, select Left or Right.
6. Click Update to save the changes.
Adjusting DM3610 Left Focus Offset
1. Position a test box with a known width in the dimensioner line(s) so the side of the
box is at the RIGHT side AV500/AV900 far working distance as specified by the
application’s installation drawing. In this example we will be using a box with a 3”
width.
2. In the menu tree under Diagnostics, click Focus Setup. The Focus Setup Windows
opens.
When working with a DC3000 multi-head system, you must select a focus data source
on the DC3000 Tach/Trigger/Transmit page. In applications involving side read cam-
eras, select Head 1 and Head 2. For top read only applications, selecting a single head
will suffice.
When working with a DC3000 multi-head system, the text box must intercept all dimen-
sioning lines
When working with a DC3000 based Dimensioning system, please allow time for the
constant tach signal to synchronize between the Master and Slave units.
