Code Collection

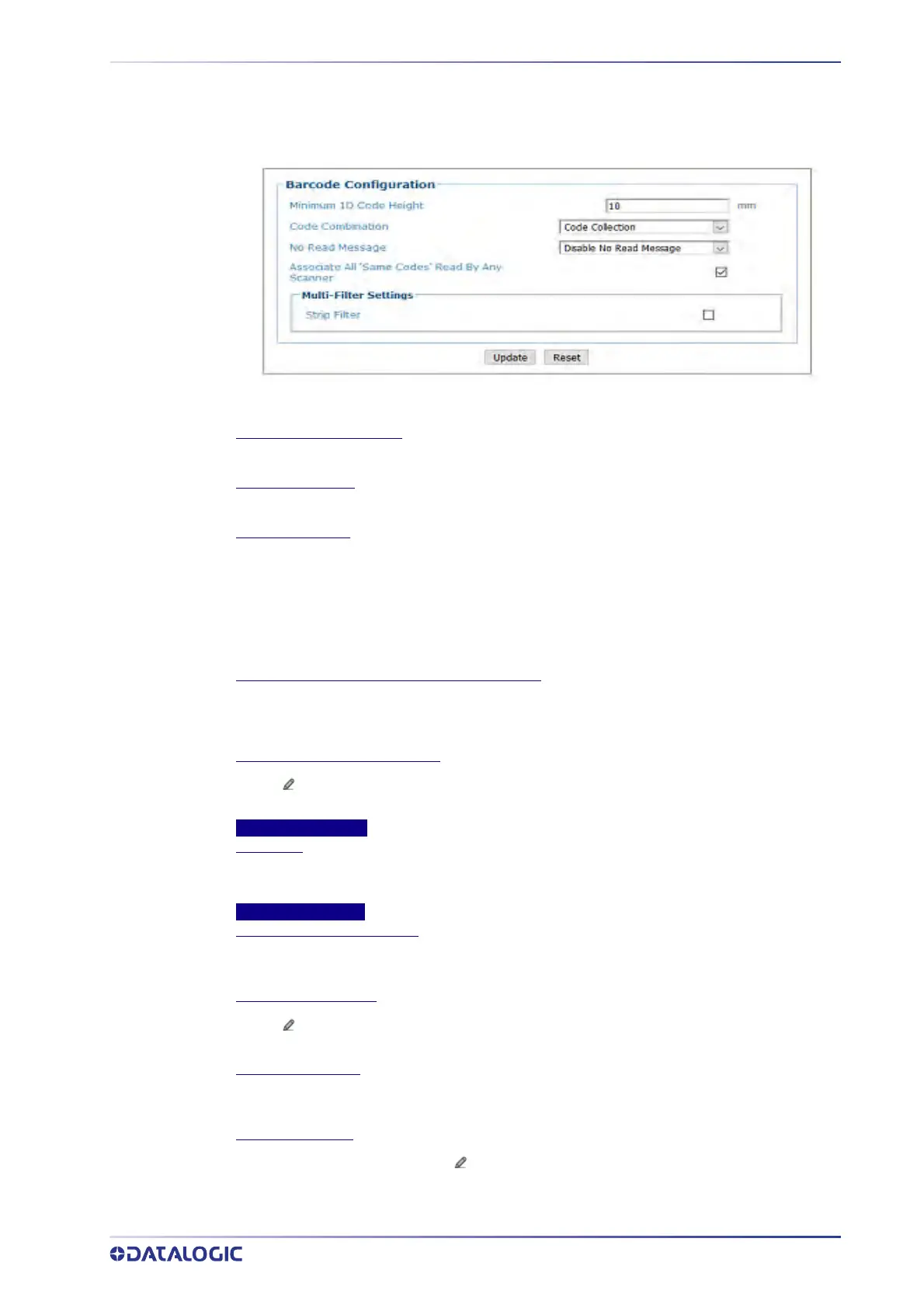

1. When Code Collection has been selected from the Code Combination drop-down
list, the Barcode Configuration window reveals related input fields.
2. Enter the appropriate information in the form as described below:
Minimum 1D Code Height
Enter the minimum code height in the field provided (mm [in]).
Code Combination
Code Collection has been selected.
No Read Message
Select Disable No Read Message, Global No Read Message, or Local No Read(s) Message from
the drop-down list. The No Read condition occurs when no barcodes are read during the
trigger cycle.
•Disable No Read Message: A No Read Message is not transmitted.
•Global No Read Message: A No Read String will be sent if the barcode reader is unable to
decode one or more barcodes in the reading phase.
Associate All’Same Codes”Read By Any Scanner
Checked by default, indicates that barcodes of the same content and symbology are
transmitted only once regardless of how many devices read them. If unchecked, codes are sent
for each device that reads them.
No Read String (max. 128 chars)
Click to activate the “The Text Entry Tool” on page 81 and create a string to be displayed
when Global No Read Message is selected from the No Read Message drop-down list.
Multi-Filter Settings
Strip Filter
Select the check box to display the Strip Filter options. This filter, when enabled, allows
eliminating characters not managed by the host.
Strip Filter Settings
Strip All Non Printable Chars
Select the check box to remove non- printable ASCII characters from the code (000-020 and
127).
Char(s) to be Stripped
Click to activate the “The Text Entry Tool” on page 81 and enter specific characters to be
stripped from the code.
Strip Filter Collapse
Select the check box to remove the stripped characters from the code and, therefore, reduce
the code length (collapsed). It can even be null.
Replacement Char
If strip filter is not enabled, click to activate the “The Text Entry Tool” on page 59 and enter
the substitution character to replace all the stripped ones.
