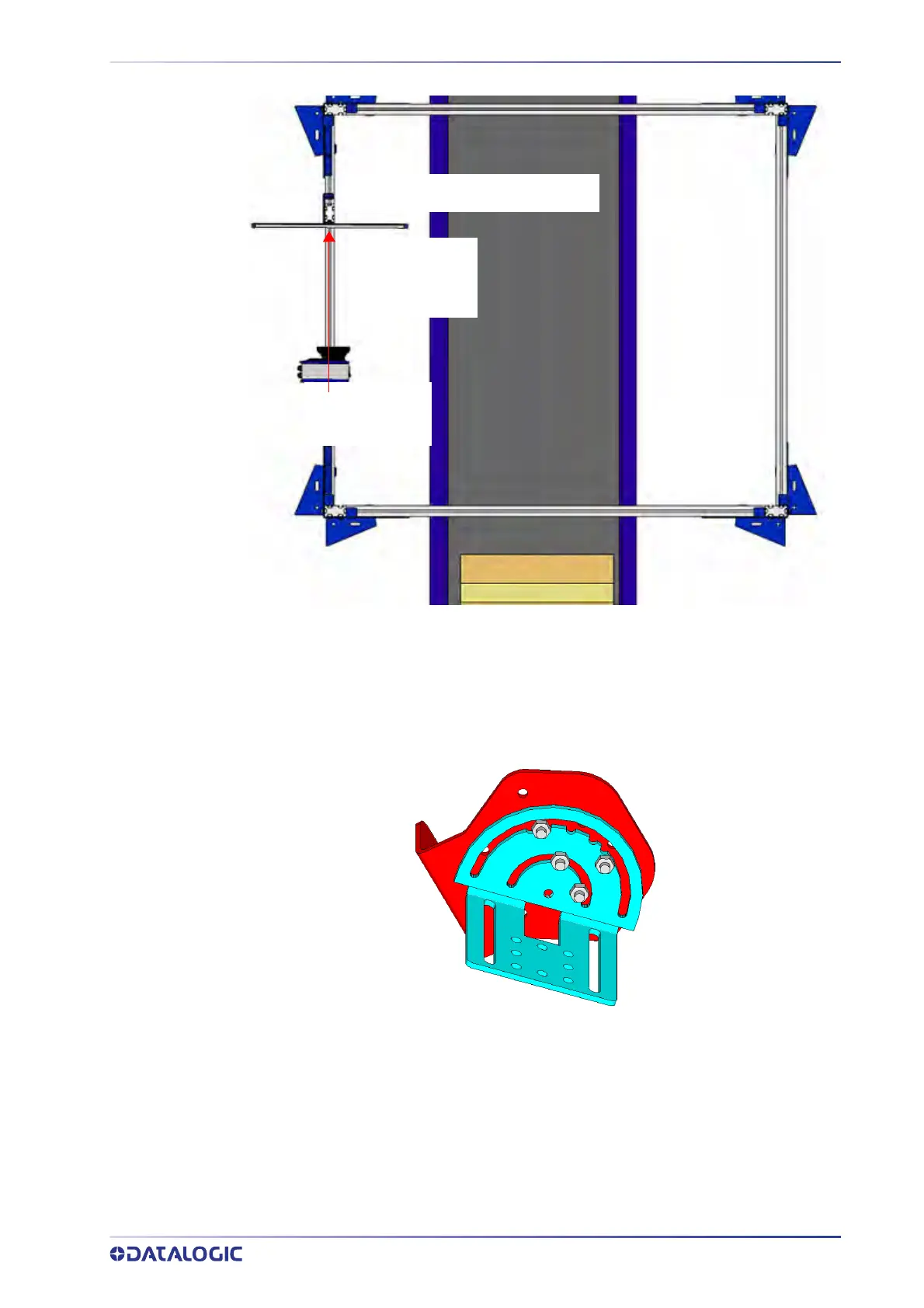

The structure is
centered and
squared to the
conveyor
Deflection mirrors
and readers are
perpendicular to
the structure rails
Deflection mirror is parallel to
AV500/AV900 and does not twist
must line up with
the center of the
mirror
mirror
INSTALLING THE DEFLECTION MIRROR
PRODUCT REFERENCE GUIDE
41
EMK-380 Mounting
The EMK mirror mounting bracket has two parts and comes assembled, but not set to
the proper angle. It is packaged with your EMK mirror. Whether mounting in a top or
side position, mount the mirror as follows:
