ELECTRICAL INSTALLATION
70
AV500/AV900 2D CAMERA
AS1 Ar

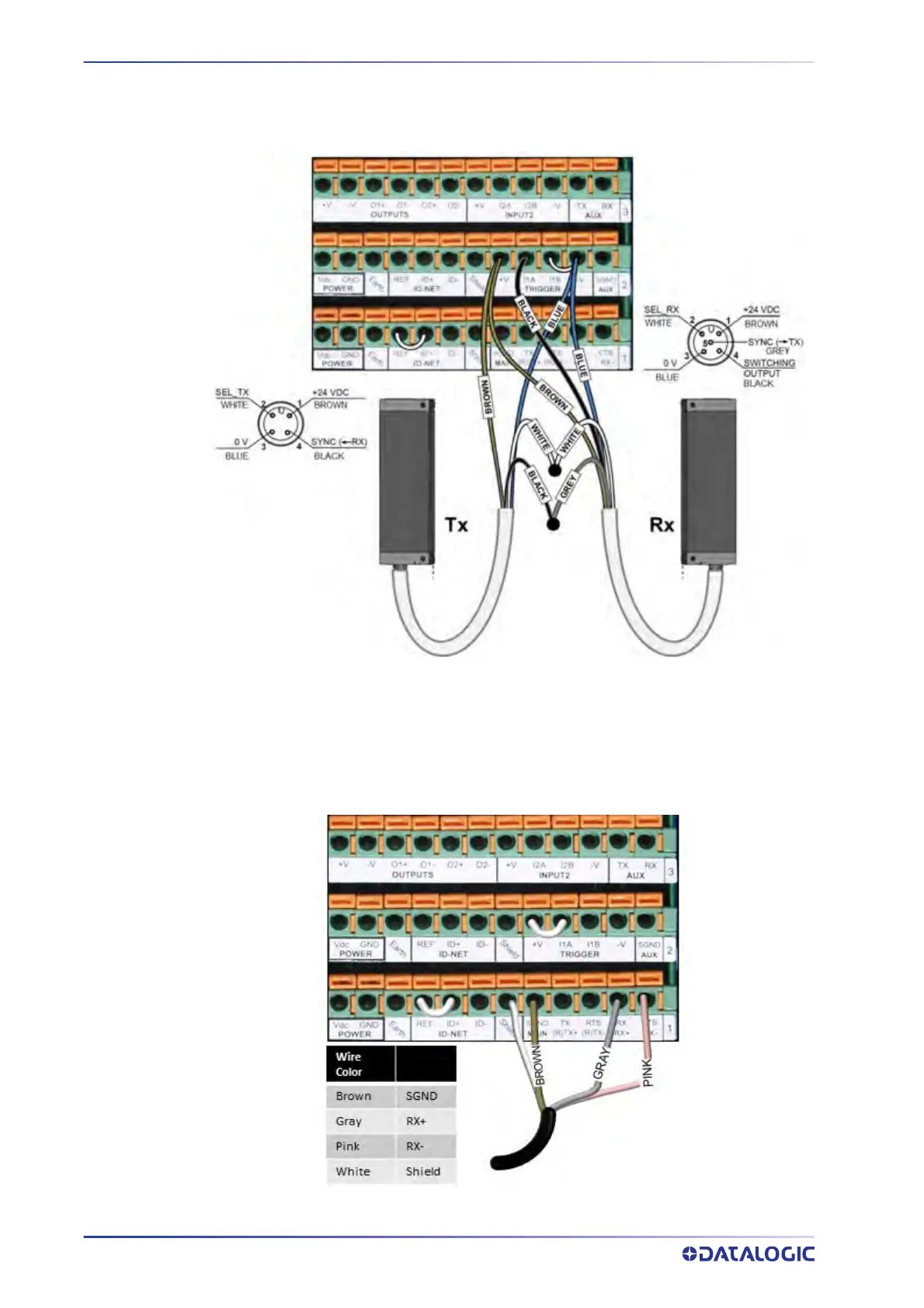

ea Sensor to CBX100/CBX800 Connections
The
AS1
area sensor
s
can detect and pr
ovide trigger for very small or irregularly shaped
objects. PNP Output.
Light Curtain to CBX100/CBX800 Connections
The Light Curtain ma
y be connected to the CB
X100/CX800 if there is more than one
A
V500/
A
V900.
89
91
