AV500/AV900 2D CAMERA
APPENDIX B
ETHERNET IP INTRODUCTION
The AV500/900 camera supports the EtherNet/IP™ Industrial Networking protocol
which we will refer to as EIP. EIP simplifies the communication of barcode and Input/
Output data with other EIP enabled devices, such as a programmable logic controller
(PLC).
Software release 1.4.0.0 and higher for the AV500/900 pr
oduct line supports the legacy
ASI EtherNet/IP™ Object. This mode allows the installation of AV500/900 cameras in
systems using PLC programs developed for Axiom, Axiom X, and AL5010 scanners and
can also be useful if ControlLogix On-Demand Messaging is desired for an application.
The ASI Object supports all configuration options available on the Axiom, Axiom X, and
AL
5010 with the exception of the 8 Reader Outputs.
ETHERNET/IP CONFIGURATION IN READER
EIP is not enabled by default in the camera.
To enable Ethernet IP follow these steps:

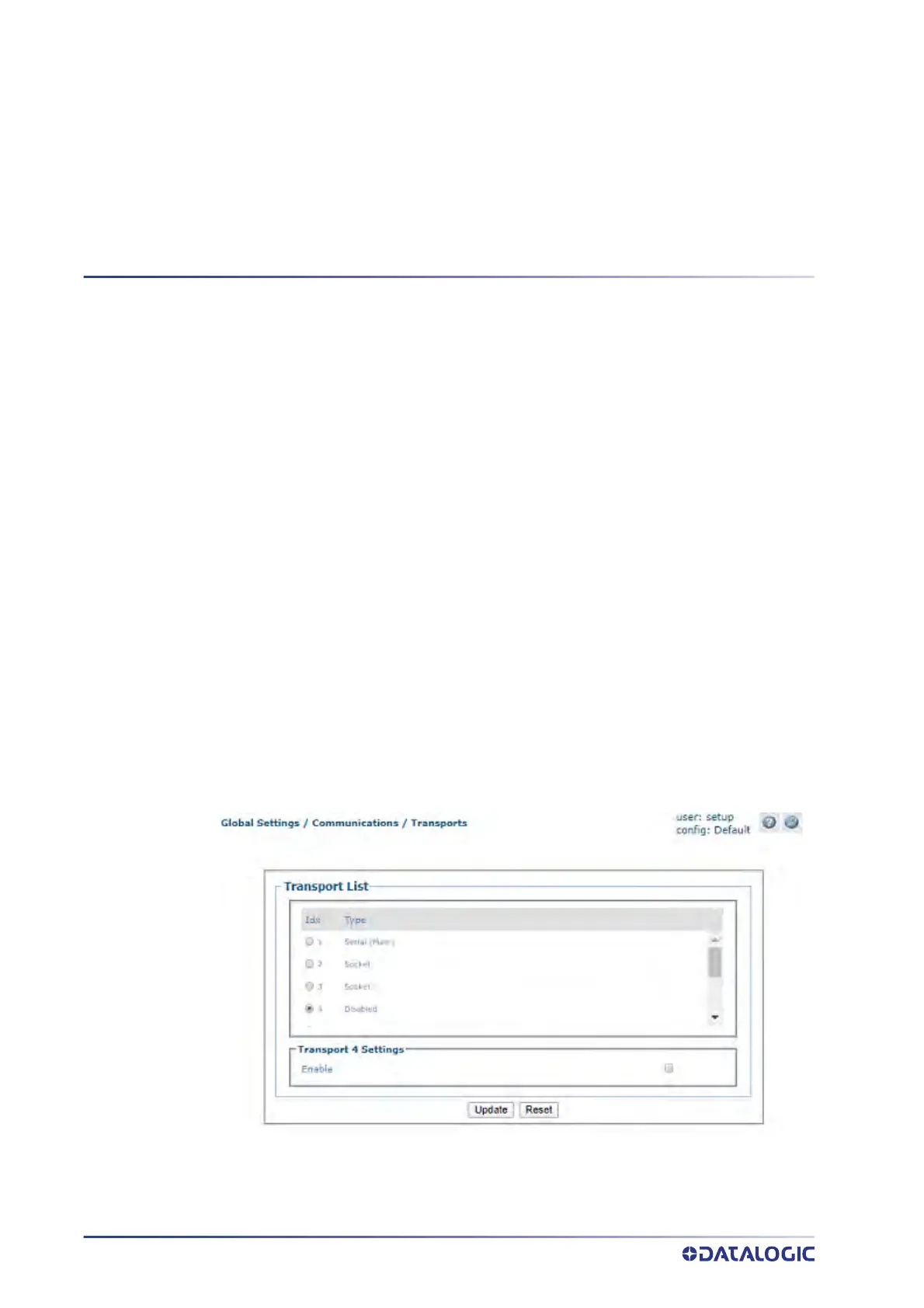

1. In the menu under Modify Settings / Global Settings / Communications, click
Transports. The Tr
ansports List window opens.
2. Select the socket for which to Enable Ethernet/IP.
